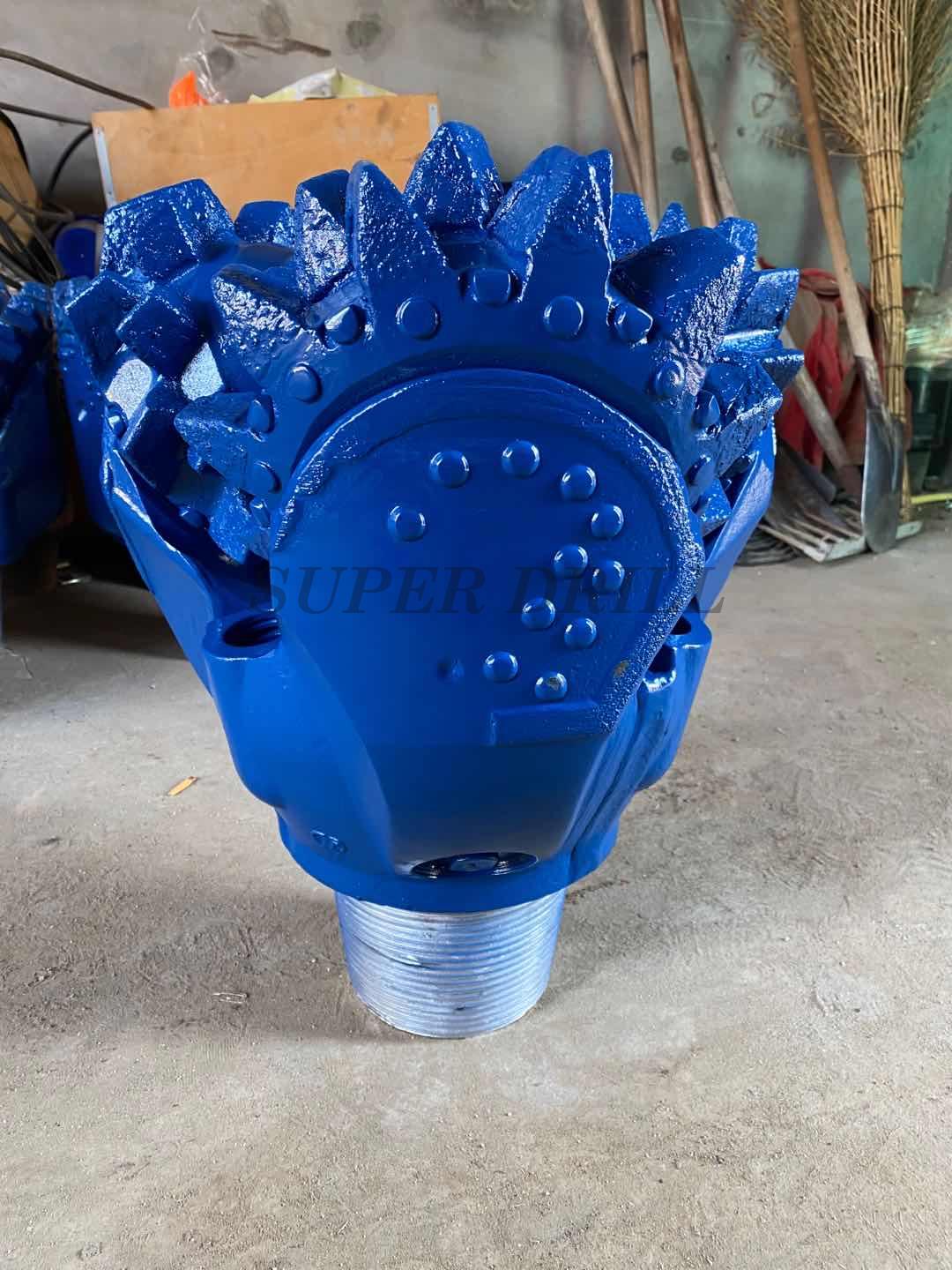

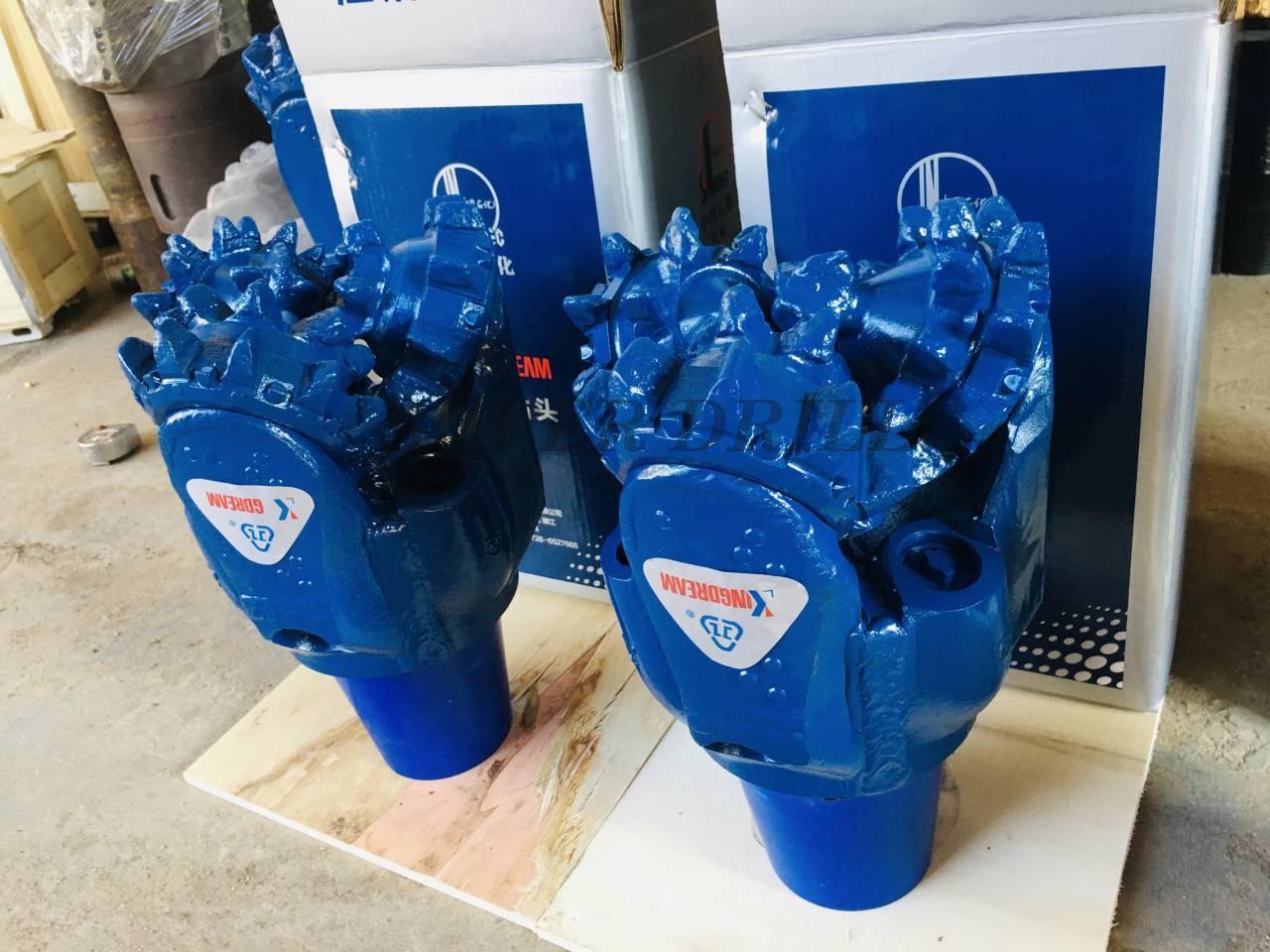

Mill Tooth Tricone Bit

  • 5 7/8  inch steel tooth drill bit for water well drilling
  • 5 7/8  inch steel tooth drill bit for water well drilling
5 7/8  inch steel tooth drill bit for water well drilling5 7/8  inch steel tooth drill bit for water well drilling

5 7/8 inch steel tooth drill bit for water well drilling

  • Product name: steel tooth bit
  • Use: Well Drilling
  • Single gross weight: 17.000 kg
  • Single package size: 19X16X32 cm
  • Product description: 5 7/8 inch steel tooth drill bit for water well drilling,Apply to Construction, Water Drilling, Mining, Horizontal Directional Drilling, Geothermal and Environ-mental.
  • INQUIRY Email Whatsapp

5 7/8  inch steel tooth drill bit for water well drilling

Samples:IADC 116

$635.00/Piece | 1 Piece (Min. Order)

Main Features

1) Tci tricone Bit Connection made according to API standard.

2) We can adjust the bit size according to your rig.

3) The best result can be obtained by using the steel-tooth bit in the soft stratum. If mining in hard formation, TCI tricone bit is recommended. Apply to Construction, Water Drilling, Mining, Horizontal Directional Drilling, Geothermal and Environ-mental.

Basical Specification
Size of tricone bit
5 7/8" inch (146mm)
Thread Connection
3 1/2" API reg pin
IADC CODE
116 117
Bearing type
rubber o-ring sealed journal bearing
Operating Parameters
WOB
0.35~1.05 KN/mm (bit Dia.)
Rotary speed
110~40 r/min
Make up torque
8.5-12.2 KN.M
Formation: Medium formation with high compressive strength ,and high drillability ,such as mudstone,gypsum,salt,soft
limestone,etc.
