Mill Tooth Tricone Bit

  • 12 1/4 inch  steel tooth tricone drill bit rock bit
  • 12 1/4 inch  steel tooth tricone drill bit rock bit
12 1/4 inch  steel tooth tricone drill bit rock bit12 1/4 inch  steel tooth tricone drill bit rock bit

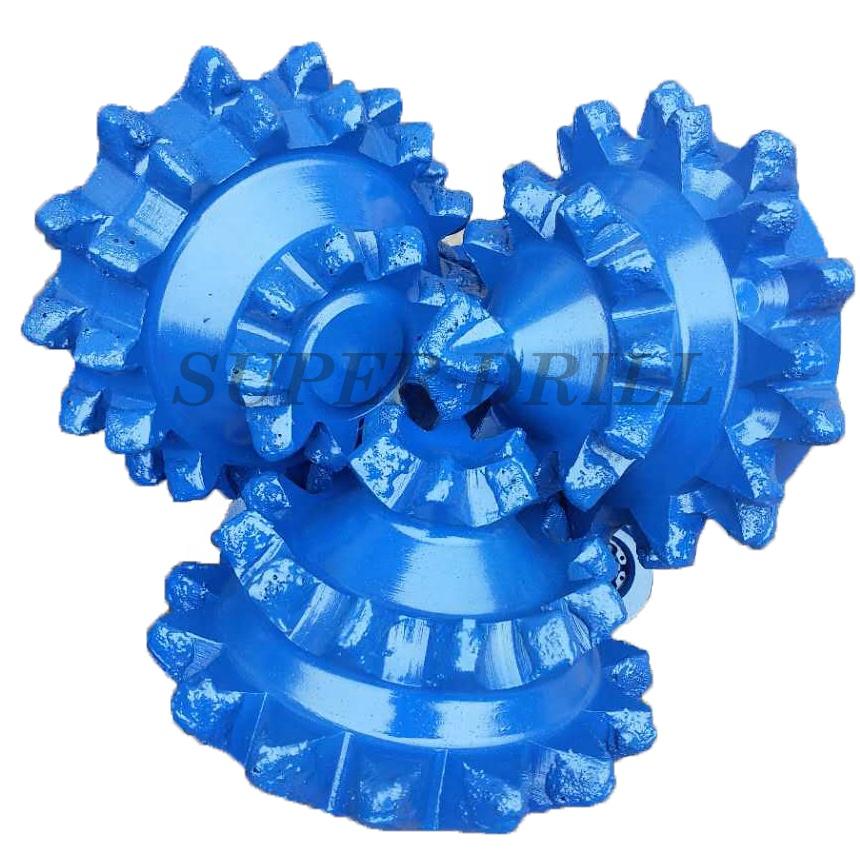

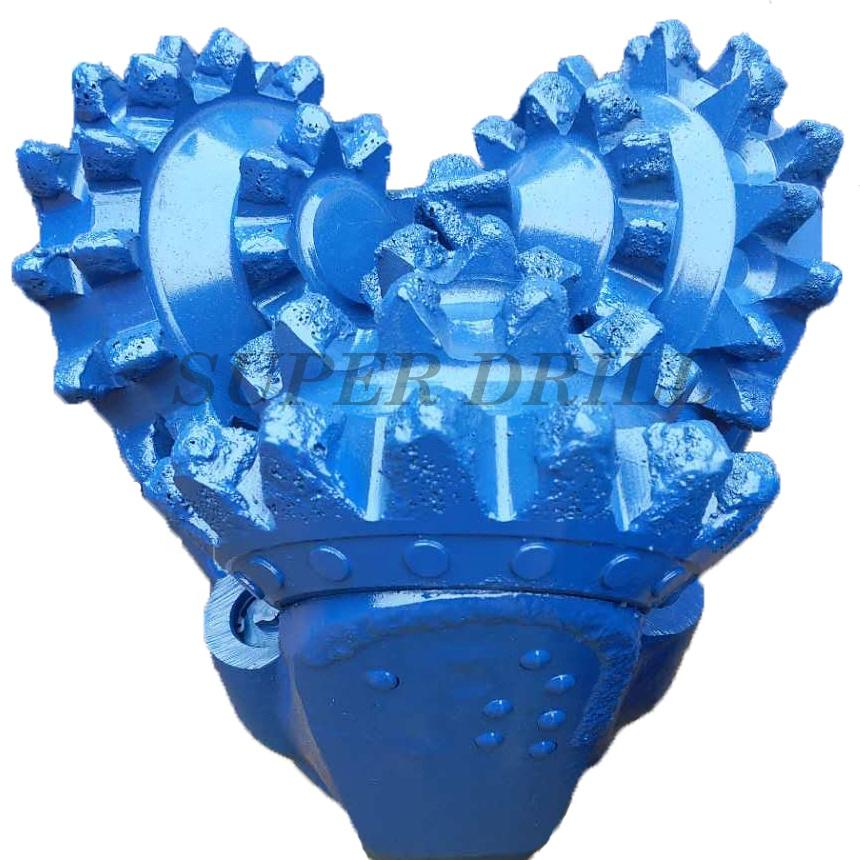

12 1/4 inch steel tooth tricone drill bit rock bit

  • Size of tricone bit 12 1/4" (311mm)
  • Thread Connection 6 5/8"API reg pin
  • IADC CODE 116 117 126 127
  • Bearing type rubber o-ring sealed journal bearing
  • Product description: 12 1/4 inch steel tooth tricone drill bit rock bit of Using a Cone Over Other Drill Bits
  • INQUIRY Email Whatsapp

12 1/4 inch  steel tooth tricone drill bit rock bit

Samples:IADC 116

$1023.00/Piece | 1 Piece (Min. Order)

Feature

1)There is a Tri Cone suitable for any rock formation 2) Steel tooth tricone bit is versatile and can handle changing formations 3)Tri Cones are reasonably priced, long lasting and have an efficient drilling rate 4)Steel tooth bit is that the roller cones have high end sealed bearings; extremely high quality tungsten carbide and diamond gauge protection throughout the drill bit as well as skirt tail hard facing and optimized hydraulics. These roller cone drill bits are designed to go to extreme depths in extreme conditions and in situations where they cannot fail.

Size of tricone bit
12 1/4" (311mm)
Thread Connection
6 5/8"API reg pin
IADC CODE
116 117 126 127
Bearing type
rubber o-ring sealed journal bearing
Operating Parameters
WOB (Weight On Bit)
0.35~1.05 KN/mm (bit Dia.)
Rotary speed
110~40 r/min
Make up torque
38~43.4 KN.M
Formation
Medium formation with high compressive strength ,and high drillability ,such as mudstone,gypsum,salt,soft limestone,etc.
