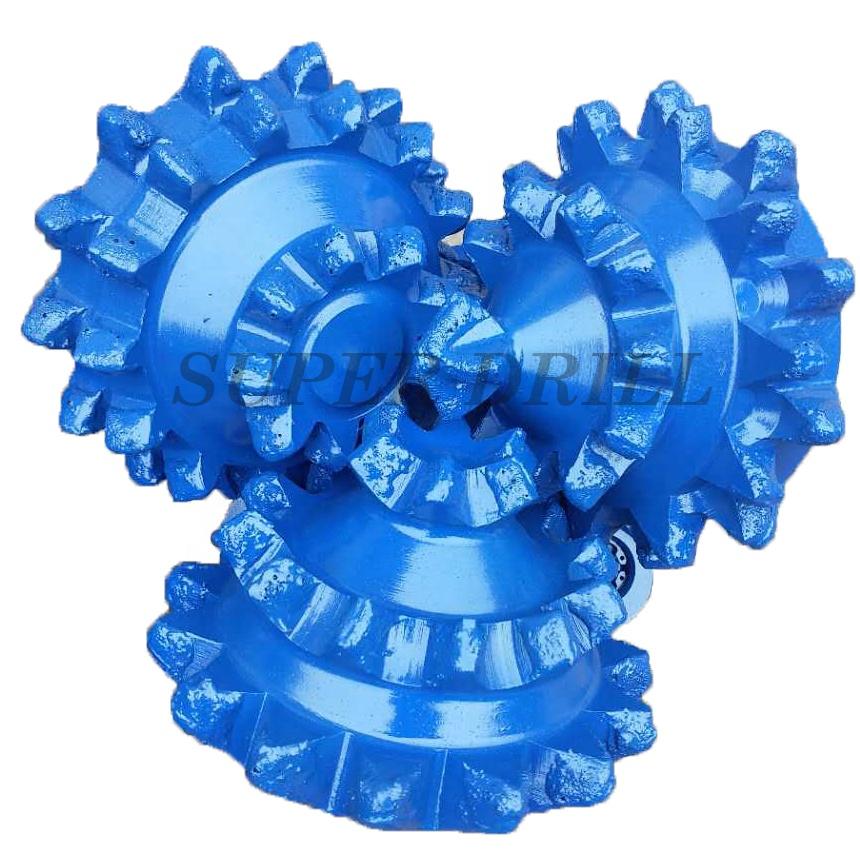

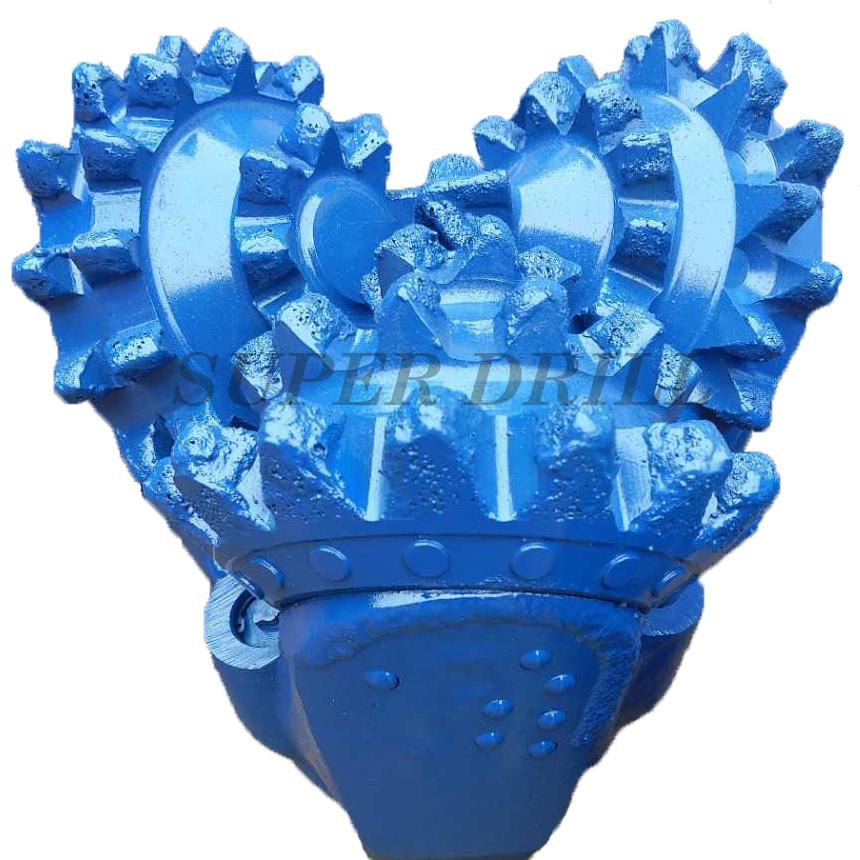

Water well 9 5/8" 244.5mm steel milled tooth rock roller tricone bit
|
Size of tricone bit
|
9 5/8" (244.5mm)
|
|
Thread Connection
|
6 5/8"API reg pin
|
|
IADC CODE
|
116 117 126 127 136 137 216 217 317 327 337
|
|
Bearing type
|
rubber o-ring sealed journal bearing
|
|
Operating Parameters
|
|
|
WOB (Weight On Bit)
|
0.35~1.05 KN/mm (bit Dia.)
|
|
Rotary speed
|
80~40 r/min
|
|
Make up torque
|
38~43.4 KN.M
|
|
Formation
|
Medium formation with high compressive strength ,and high drillability ,such as mudstone,gypsum,salt,soft limestone,etc.
|
