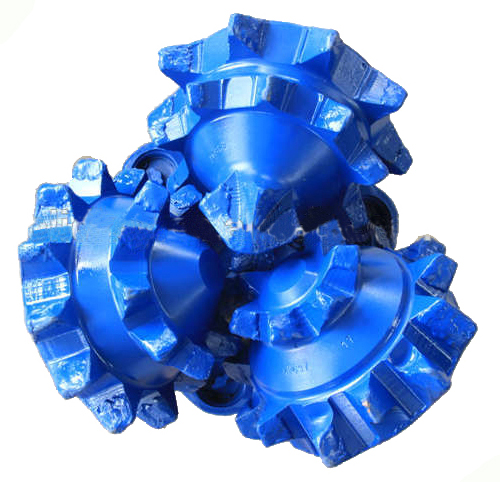

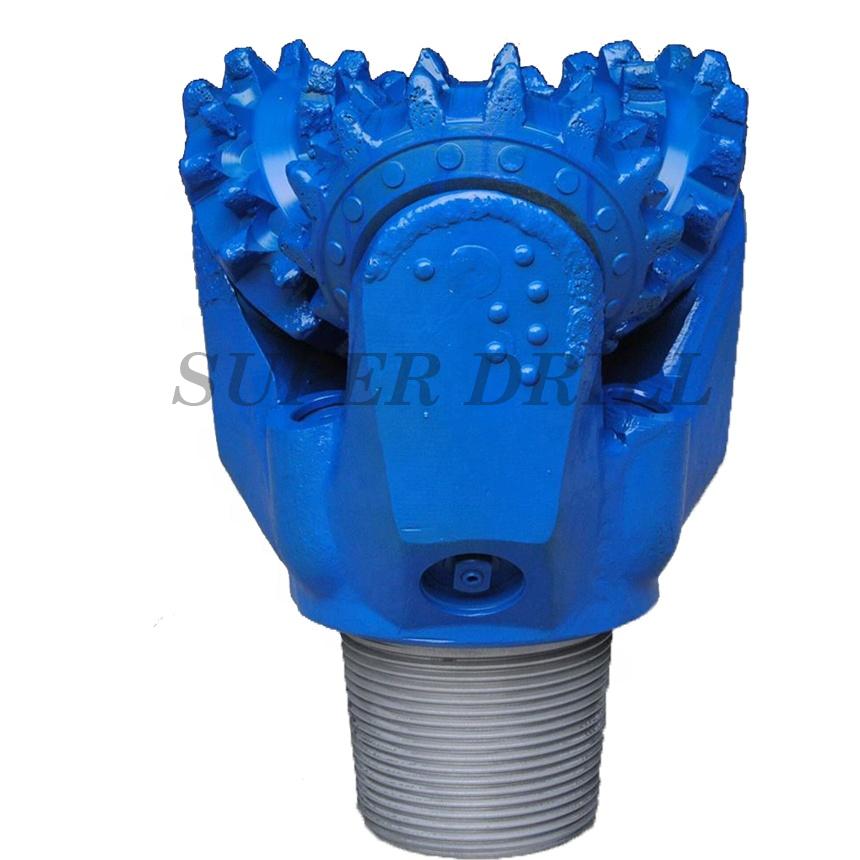

Mill Tooth Tricone Bit

  • 311.2mm IADC 327 water steel milled tooth tricone bit
  • 311.2mm IADC 327 water steel milled tooth tricone bit
311.2mm IADC 327 water steel milled tooth tricone bit311.2mm IADC 327 water steel milled tooth tricone bit

311.2mm IADC 327 water steel milled tooth tricone bit

  • Size: 12 1/4
  • Thread: 6 5/8
  • rotary speed: 70~60 r/min
  • Formation: soft to hard formation
  • Product description: 311.2mm IADC 327 water steel milled tooth tricone bit:Model Number IADC 117 IADC 127 IADC 217 IADC 137 IADC 327
  • INQUIRY Email Whatsapp

12 1/4" 311.2mm IADC 327 water steel milled tooth tricone roller drill bit

Samples: IADC 117

$1,100.00/Piece | 1 Piece (Min. Order)

Hard alloy drill palm surface neck protection prevent bit wear in abrasive formation

High stength tunsten carbide teeth ,high temperature hear treatment forged alloy steel
Lubricating system protection of the bearing and seal system of the bit
Evety teeth welding wear resistant alloy sand to protect the teeth to extend bit work life
Sealed Journal bearing
You can find the bit Diameter,thread Pin IADC code Serial number on the bottom
Basical Specification
Size of tricone bit
12 1/4" 311.2mm
Thread Connection
6 5/8" Reg pin
IADC CODE
327
Bearing type
rubber o-ring journal bearing
Operating Parameters
Recommended Make up torque
38~43.4 KN.M
WOB (Weight On Bit)
0.8~1.10 KN/mm
Rotary speed
70~60 r/min
Formation
Hard with high compress strength and abrasiveness (hard shale ,hard sandstone ,hard limestone and dolomite,etc )
