Mill Tooth Tricone Bit

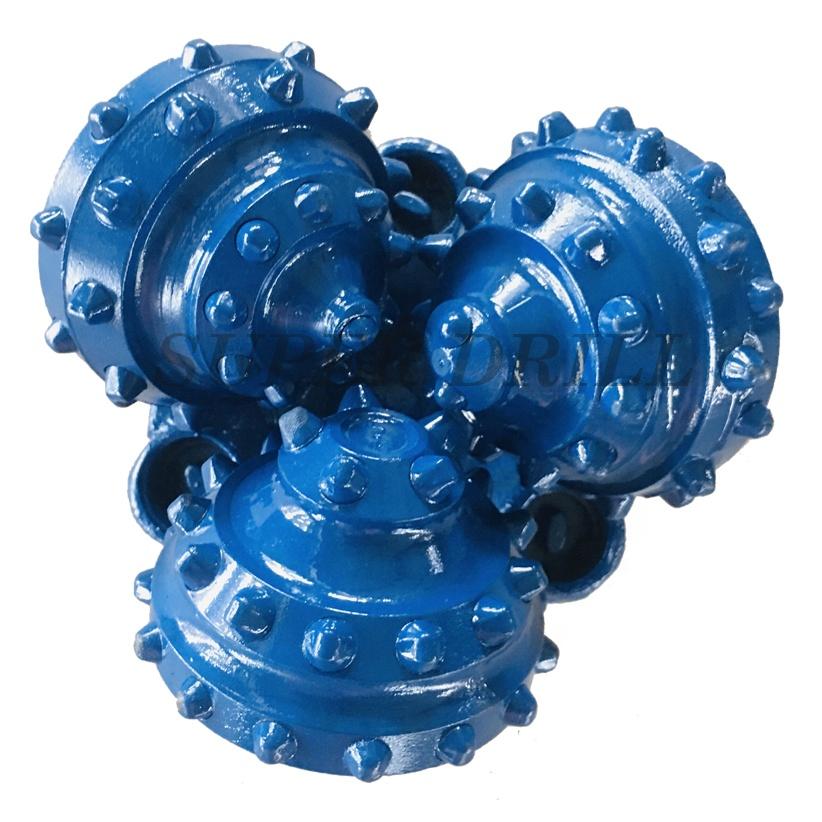

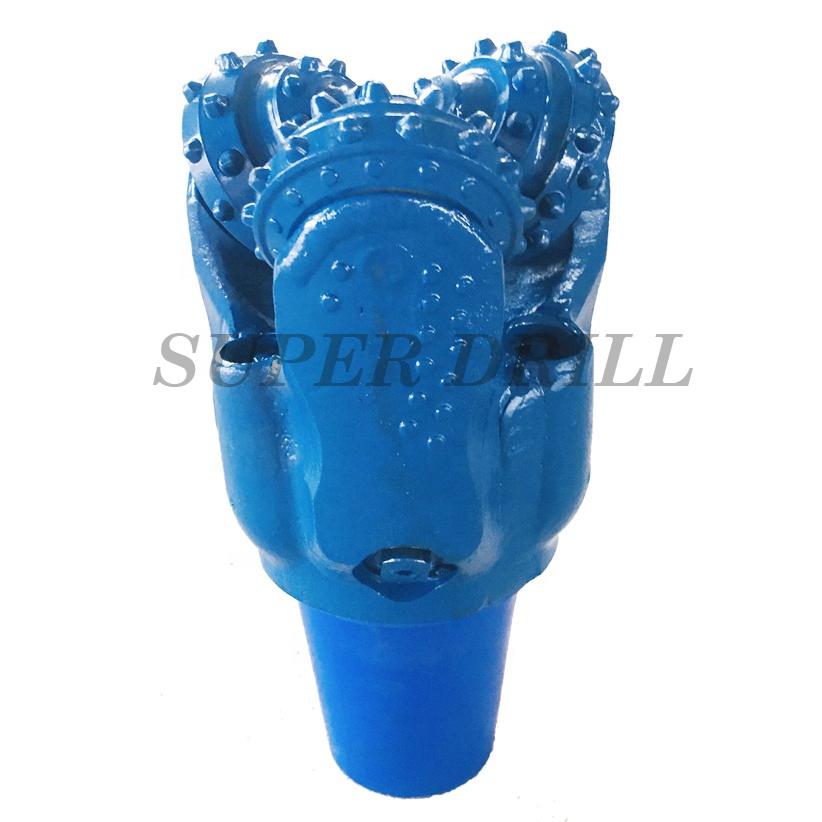

5 7/8 inch IADC 417 tci tricone drill bit

Product name: steel tooth bit
Size of tricone bit 57/8inch (146mm)
Single gross weight: 17.000 kg
Thread Connection 3 1/2 inch API reg pin
Product description: 5 7/8 inch IADC 417 tci tricone drill bit for water well drilling，Apply to Construction, Water Drilling, Mining, Horizontal Directional Drilling, Geothermal and Environ-mental.
INQUIRY Email Whatsapp

5 7/8 inch IADC 417 steel tooth drill bit

Samples:IADC 417

$870.00/Piece | 1 Piece (Min. Order)

Main Features

1) Tci tricone Bit Connection made according to API standard.

2) We can adjust the bit size according to your rig.

3) The best result can be obtained by using the steel-tooth bit in the soft stratum. If mining in hard formation, TCI tricone bit is recommended. Apply to Construction, Water Drilling, Mining, Horizontal Directional Drilling, Geothermal and Environ-mental.

Size of tricone bit	57/8" (146mm)
Thread Connection	3 1/2"API reg pin
IADC CODE	417 437 447 517 527 537
Bearing type	rubber o-ring sealed journal bearing
Operating Parameters
WOB (Weight On Bit)	0.35~1.05 KN/mm (bit Dia.)
Rotary speed	110~40 r/min
Make up torque	8.5~12.2 KN.M
Formation	Medium formation with high compressive strength ,and high drillability ,such as mudstone,gypsum,salt,soft limestone,etc.

IADC CODE	Rock formation	WOB	PRM(r/min)
417	Low compressive strength, high drill-ability and extremely soft formation,like shale,clay ,sandstone,conglomerate etc.	0.35~0.90	140~70
437	Low compressive strength, high drill-ability and soft formation,like shale,clay,sandstone,soft limestone,salt rock,etc.	0.35~1.00	140~60
517	Low compressive strength,high drill-ability and soft formation ,like shale,clay,sandstone,soft limestone,salt rock,etc.	0.35~1.05	120~50
537	Low compressive strength,medium hard formation with hard abrasive interlayer,like Hard shale ,anhydrite,soft limestone,sandstone,dolomite with messanine,etc.	0.50~1.05	110~40
617	High compressive strength,medium hard and thick hard interlayer,like hard shale,limestone,sandstone,dolomite,etc.	0.50~1.05	80~40
637	High compressive strength,medium hard and high abrasive formation,like limestone,dolomite,sandstone,chert,etc.	0.70~1.20	70~40

Regular Size	API REG PIN	Regular Size	API REG PIN
3 7/8(98mm)	2 3/8	4 5/8(118mm)	2 7/8
5 5/8(142.8mm)	3 1/2	5 7/8(149.2mm)	3 1/2
6(152.4mm)	3 1/2	6 1/2(165)	3 1/2
7 1/2(190mm)	4 1/2	7 5/8(193mm)	4 1/2
8 1/2(215.9)	4 1/2	9 1/2(241.3mm)	6 5/8
10 5/8(269.8mm)	6 5/8	11 5/8(295.3mm)	6 5/8
12 1/4(311.15mm)	6 5/8	13 5/8(346mm)	6 5/8
15 1/2(393mm)	7 5/8	16(406.0mm)	7 5/8
17 1/2(445mm)	7 5/8	26(660mm)	7 5/8
