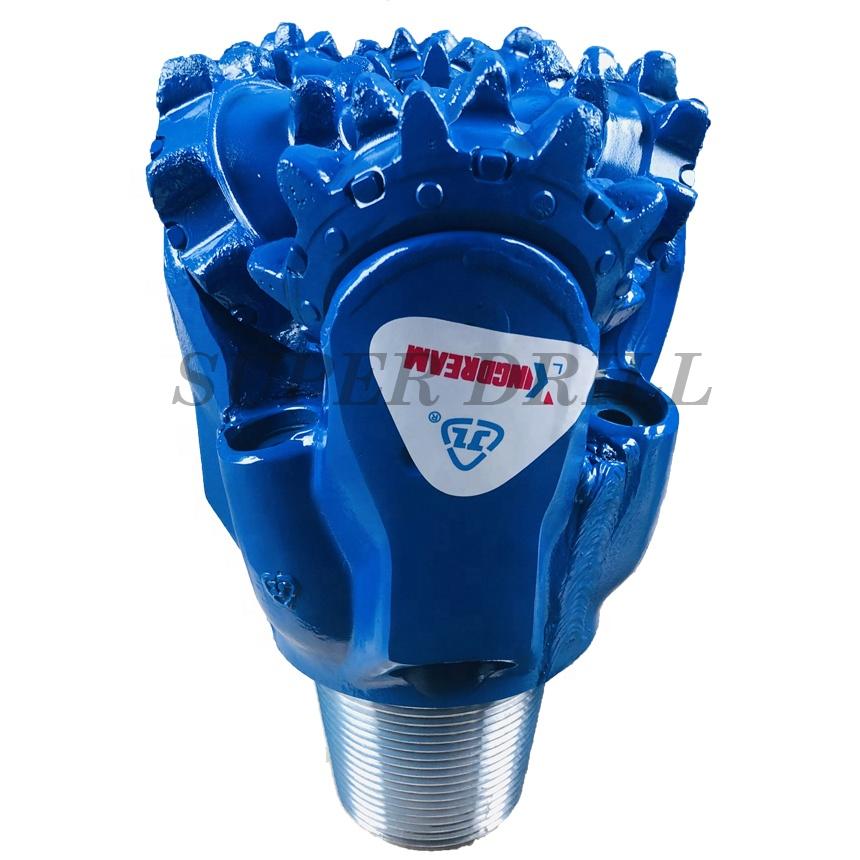

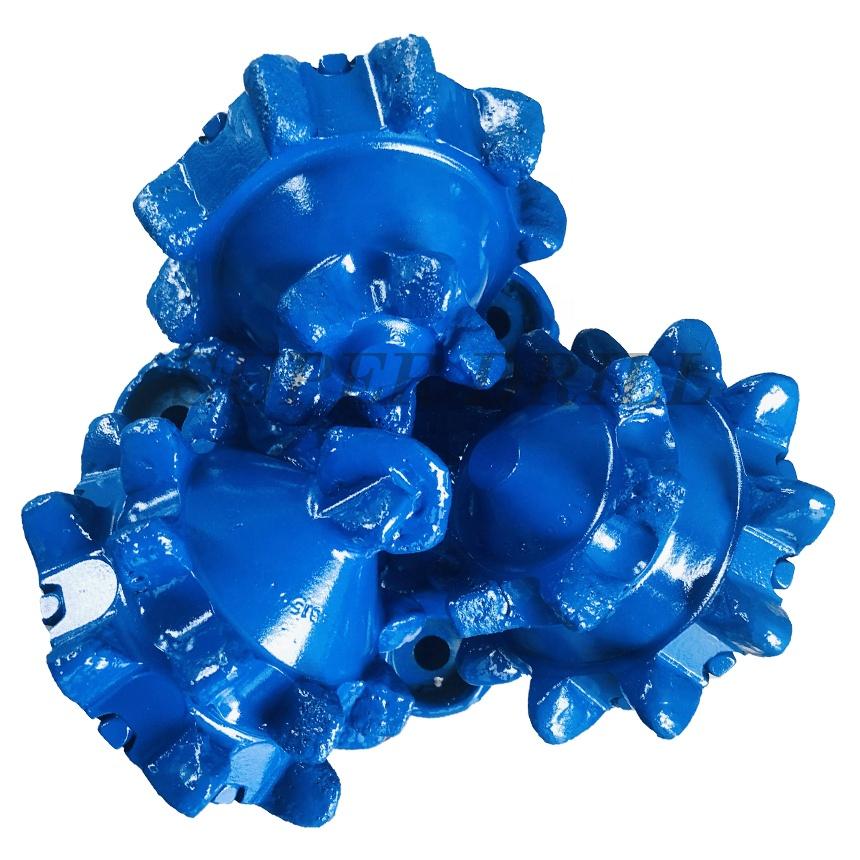

Mill Tooth Tricone Bit

  • 7 1/2 inch steel tooth bit roller bit
  • 7 1/2 inch steel tooth bit roller bit
7 1/2 inch steel tooth bit roller bit7 1/2 inch steel tooth bit roller bit

7 1/2 inch steel tooth bit roller bit

  • Size of tricone bit 7 1/2 inch (190mm)
  • Thread Connection 41/2 inch API reg pin
  • Single gross weight: 37.000 kg
  • Single package size: 25X22X42 cm
  • Product description: 7 1/2 inch steel tooth bit roller bit for water well drilling,Size of tricone bit:7 1/2" (190mm).Thread Connection:4 1/2"API reg pin.IADC CODE 116 117 126 127 136 137
  • INQUIRY Email Whatsapp

7 1/2 inch steel tooth bit roller bit

Samples:IADC 116

$795.00/Piece | 1 Piece (Min. Order)

Main Features

1) Tci tricone Bit Connection made according to API standard.

2) We can adjust the bit size according to your rig.

3) The best result can be obtained by using the steel-tooth bit in the soft stratum. If mining in hard formation, TCI tricone bit is recommended. Apply to Construction, Water Drilling, Mining, Horizontal Directional Drilling, Geothermal and Environ-mental.

Size of tricone bit
7 1/2" (190mm)
Thread Connection
41/2"API reg pin
IADC CODE
116 117 126 127 136 137
Bearing type
rubber o-ring sealed journal bearing
Operating Parameters
WOB (Weight On Bit)
0.35~1.05 KN/mm (bit Dia.)
Rotary speed
150~60 r/min
Make up torque
16.3~21.7 KN.M
Formation
Medium formation with high compressive strength ,and high drillability ,such as mudstone,gypsum,salt,soft limestone,etc.

IADC CODE
Rock formation
WOB
PRM(r/min)
417
Low compressive strength, high drill-ability and extremely soft formation,like shale,clay ,sandstone,conglomerate etc.
0.35~0.90
140~70
437
Low compressive strength, high drill-ability and soft formation,like shale,clay,sandstone,soft limestone,salt rock,etc.
0.35~1.00
140~60
517
Low compressive strength,high drill-ability and soft formation ,like shale,clay,sandstone,soft limestone,salt rock,etc.
0.35~1.05
120~50
537
Low compressive strength,medium hard formation with hard abrasive interlayer,like Hard shale ,anhydrite,soft
limestone,sandstone,dolomite with messanine,etc.
0.50~1.05
110~40
617
High compressive strength,medium hard and thick hard interlayer,like hard shale,limestone,sandstone,dolomite,etc.
0.50~1.05
80~40
637
High compressive strength,medium hard and high abrasive formation,like limestone,dolomite,sandstone,chert,etc.
0.70~1.20
70~40
Regular Size
API REG PIN
Regular Size
API REG PIN
3 7/8(98mm)
2 3/8
4 5/8(118mm)
2 7/8
5 5/8(142.8mm)
3 1/2
5 7/8(149.2mm)
3 1/2
6(152.4mm)
3 1/2
6 1/2(165)
3 1/2
7 1/2(190mm)
4 1/2
7 5/8(193mm)
4 1/2
8 1/2(215.9)
4 1/2
9 1/2(241.3mm)
6 5/8
10 5/8(269.8mm)
6 5/8
11 5/8(295.3mm)
6 5/8
12 1/4(311.15mm)
6 5/8
13 5/8(346mm)
6 5/8
15 1/2(393mm)
7 5/8
16(406.0mm)
7 5/8
17 1/2(445mm)
7 5/8
26(660mm)
7 5/8
