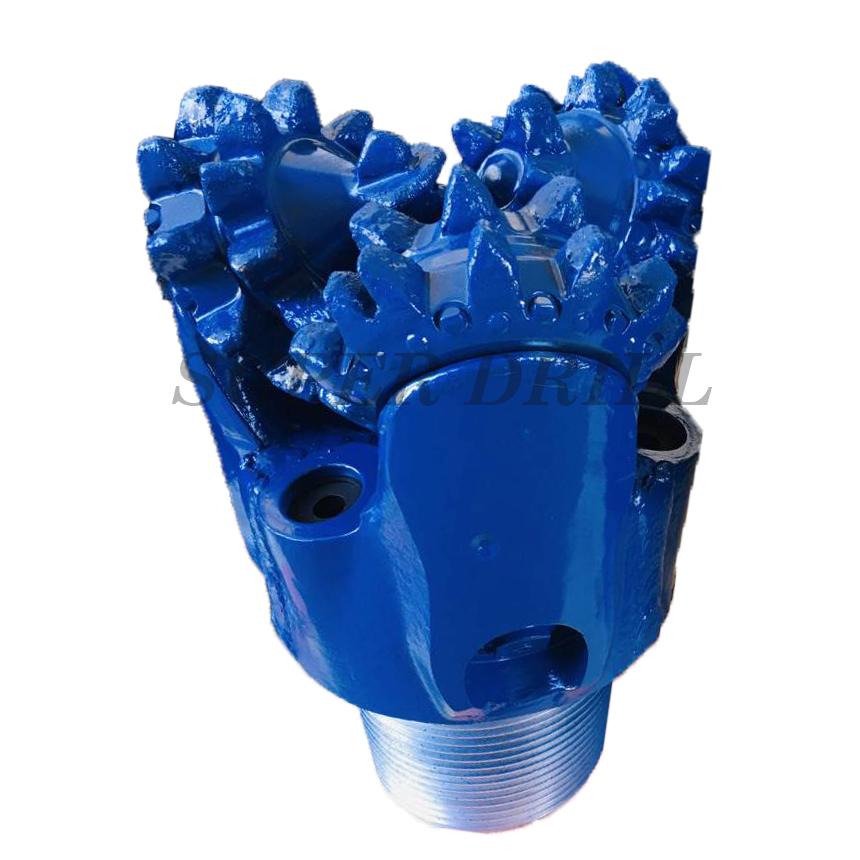

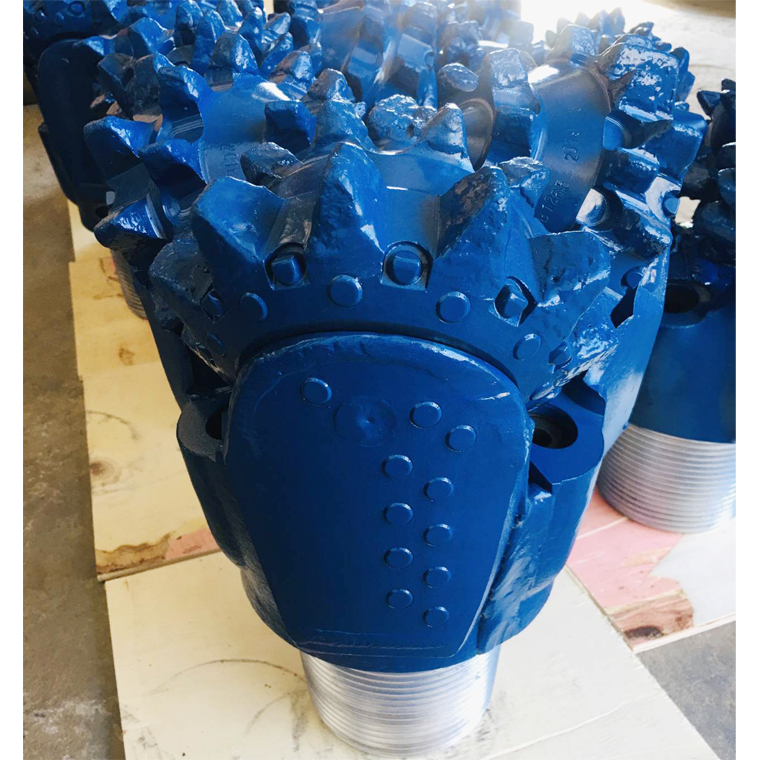

8 inch steel tooth tricone bit water well drilling bit
Samples:IADC 116 117 126 127 136 137 216 217
$890.00/Piece | 1 Piece (Min. Order)
Main Features
1) Tci tricone Bit Connection made according to API standard.
2) We can adjust the bit size according to your rig.
3) The best result can be obtained by using the steel-tooth bit in the soft stratum. If mining in hard formation, TCI tricone bit is recommended. Apply to Construction, Water Drilling, Mining, Horizontal Directional Drilling, Geothermal and Environ-mental.
|
Basical Specification
|
|
|
Size
|
8" (203mm)
|
|
Connection
|
4 1/2" API reg pin
|
|
IADC CODE
|
127
|
|
Bearing type
|
rubber /metal o-ring journal bearing
|
|
Operating Parameters
|
|
|
(Weight On Bit)
|
0.35~1.00 KN/mm (bit Dia.)
|
|
Rotary speed
|
150~70 r/min / 220~40 r/min
|
|
Make up torque
|
38-43.4 KN.M
|
|
Formation
|
Soft with Low compressive strength and high drill ability. Such as shale, clay, salt bed and soft limestone etc
|
|
IADC CODE
|
Rock formation
|
WOB
|
PRM(r/min)
|
|
417
|
Low compressive strength, high drill-ability and extremely soft formation,like shale,clay ,sandstone,conglomerate etc.
|
0.35~0.90
|
140~70
|
|
437
|
Low compressive strength, high drill-ability and soft formation,like shale,clay,sandstone,soft limestone,salt rock,etc.
|
0.35~1.00
|
140~60
|
|
517
|
Low compressive strength,high drill-ability and soft formation ,like shale,clay,sandstone,soft limestone,salt rock,etc.
|
0.35~1.05
|
120~50
|
|
537
|
Low compressive strength,medium hard formation with hard abrasive interlayer,like Hard shale ,anhydrite,soft
limestone,sandstone,dolomite with messanine,etc. |
0.50~1.05
|
110~40
|
|
617
|
High compressive strength,medium hard and thick hard interlayer,like hard shale,limestone,sandstone,dolomite,etc.
|
0.50~1.05
|
80~40
|
|
637
|
High compressive strength,medium hard and high abrasive formation,like limestone,dolomite,sandstone,chert,etc.
|
0.70~1.20
|
70~40
|
|
Regular Size
|
API REG PIN
|
Regular Size
|
API REG PIN
|
|
3 7/8(98mm)
|
2 3/8
|
4 5/8(118mm)
|
2 7/8
|
|
5 5/8(142.8mm)
|
3 1/2
|
5 7/8(149.2mm)
|
3 1/2
|
|
6(152.4mm)
|
3 1/2
|
6 1/2(165)
|
3 1/2
|
|
7 1/2(190mm)
|
4 1/2
|
7 5/8(193mm)
|
4 1/2
|
|
8 1/2(215.9)
|
4 1/2
|
9 1/2(241.3mm)
|
6 5/8
|
|
10 5/8(269.8mm)
|
6 5/8
|
11 5/8(295.3mm)
|
6 5/8
|
|
12 1/4(311.15mm)
|
6 5/8
|
13 5/8(346mm)
|
6 5/8
|
|
15 1/2(393mm)
|
7 5/8
|
16(406.0mm)
|
7 5/8
|
|
17 1/2(445mm)
|
7 5/8
|
26(660mm)
|
7 5/8
|
