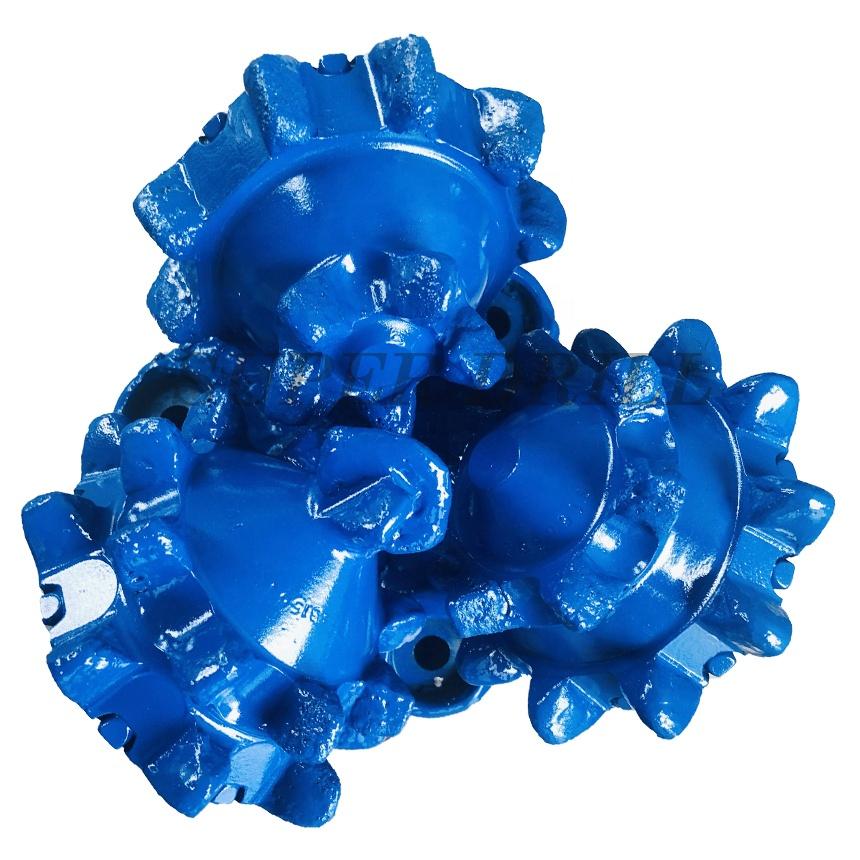

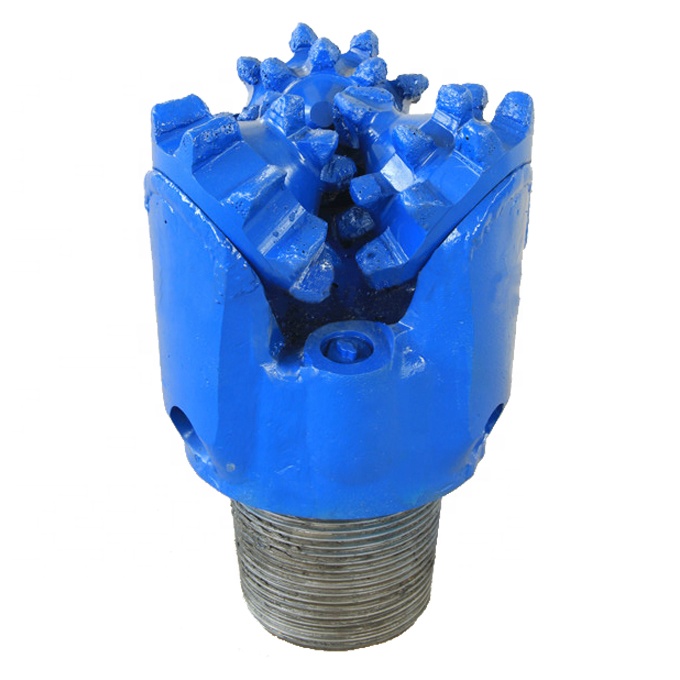

6 3/4 inch steel tooth tricone roller bits
Samples:IADC 116 117 126
$660.00/Piece | 1 Piece (Min. Order)
steel tooth bit is one of the main tools for blast hole and water well drilling. Its life span and performance whether suitable for drilling or not, that has an great influence about the quality, speed and cost of drilling project. The rock breakage by the steel tooth bit which used in mine is working with both the impact of teeth and the shear caused by slippage of the teeth, which bring high rock breaking efficiency and the low operation cost.
Size of tricone bit
6 3/4" (171mm)
Thread Connection
3 1/2"API reg pin
IADC CODE
116/117
Bearing type
rubber o-ring sealed journal bearing
Operating Parameters
WOB (Weight On Bit)
0.35~1.05 KN/mm (bit Dia.)
Rotary speed
150~70 r/min
Formation
Medium formation with high compressive strength ,and high drillability ,such as mudstone,gypsum,salt,soft limestone,etc.
|
IADC CODE
|
Rock formation
|
WOB
|
PRM(r/min)
|
|
417
|
Low compressive strength, high drill-ability and extremely soft formation,like shale,clay ,sandstone,conglomerate etc.
|
0.35~0.90
|
140~70
|
|
437
|
Low compressive strength, high drill-ability and soft formation,like shale,clay,sandstone,soft limestone,salt rock,etc.
|
0.35~1.00
|
140~60
|
|
517
|
Low compressive strength,high drill-ability and soft formation ,like shale,clay,sandstone,soft limestone,salt rock,etc.
|
0.35~1.05
|
120~50
|
|
537
|
Low compressive strength,medium hard formation with hard abrasive interlayer,like Hard shale ,anhydrite,soft
limestone,sandstone,dolomite with messanine,etc. |
0.50~1.05
|
110~40
|
|
617
|
High compressive strength,medium hard and thick hard interlayer,like hard shale,limestone,sandstone,dolomite,etc.
|
0.50~1.05
|
80~40
|
|
637
|
High compressive strength,medium hard and high abrasive formation,like limestone,dolomite,sandstone,chert,etc.
|
0.70~1.20
|
70~40
|
|
Regular Size
|
API REG PIN
|
Regular Size
|
API REG PIN
|
|
3 7/8(98mm)
|
2 3/8
|
4 5/8(118mm)
|
2 7/8
|
|
5 5/8(142.8mm)
|
3 1/2
|
5 7/8(149.2mm)
|
3 1/2
|
|
6(152.4mm)
|
3 1/2
|
6 1/2(165)
|
3 1/2
|
|
7 1/2(190mm)
|
4 1/2
|
7 5/8(193mm)
|
4 1/2
|
|
8 1/2(215.9)
|
4 1/2
|
9 1/2(241.3mm)
|
6 5/8
|
|
10 5/8(269.8mm)
|
6 5/8
|
11 5/8(295.3mm)
|
6 5/8
|
|
12 1/4(311.15mm)
|
6 5/8
|
13 5/8(346mm)
|
6 5/8
|
|
15 1/2(393mm)
|
7 5/8
|
16(406.0mm)
|
7 5/8
|
|
17 1/2(445mm)
|
7 5/8
|
26(660mm)
|
7 5/8
|
