Hand hold type

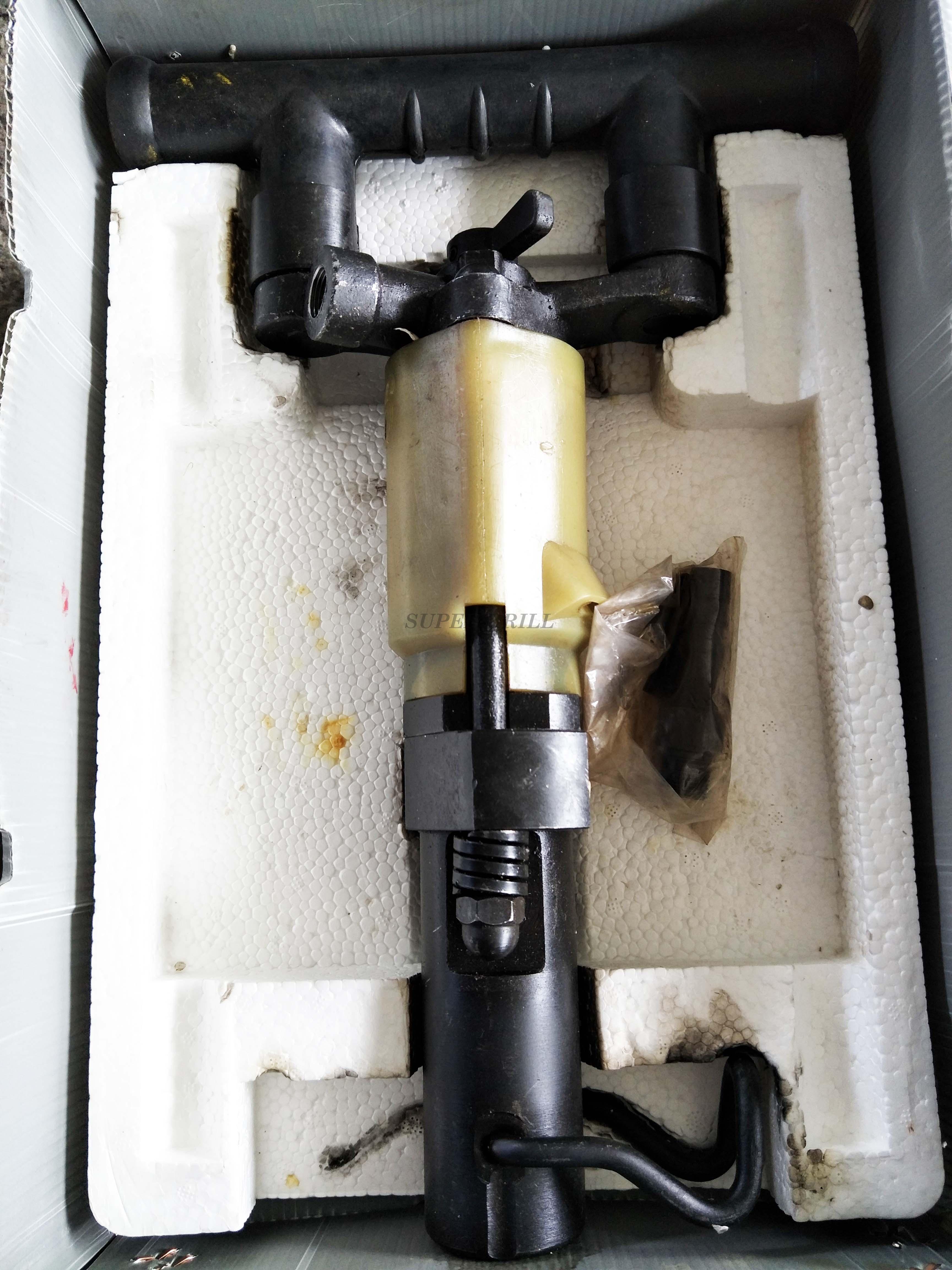

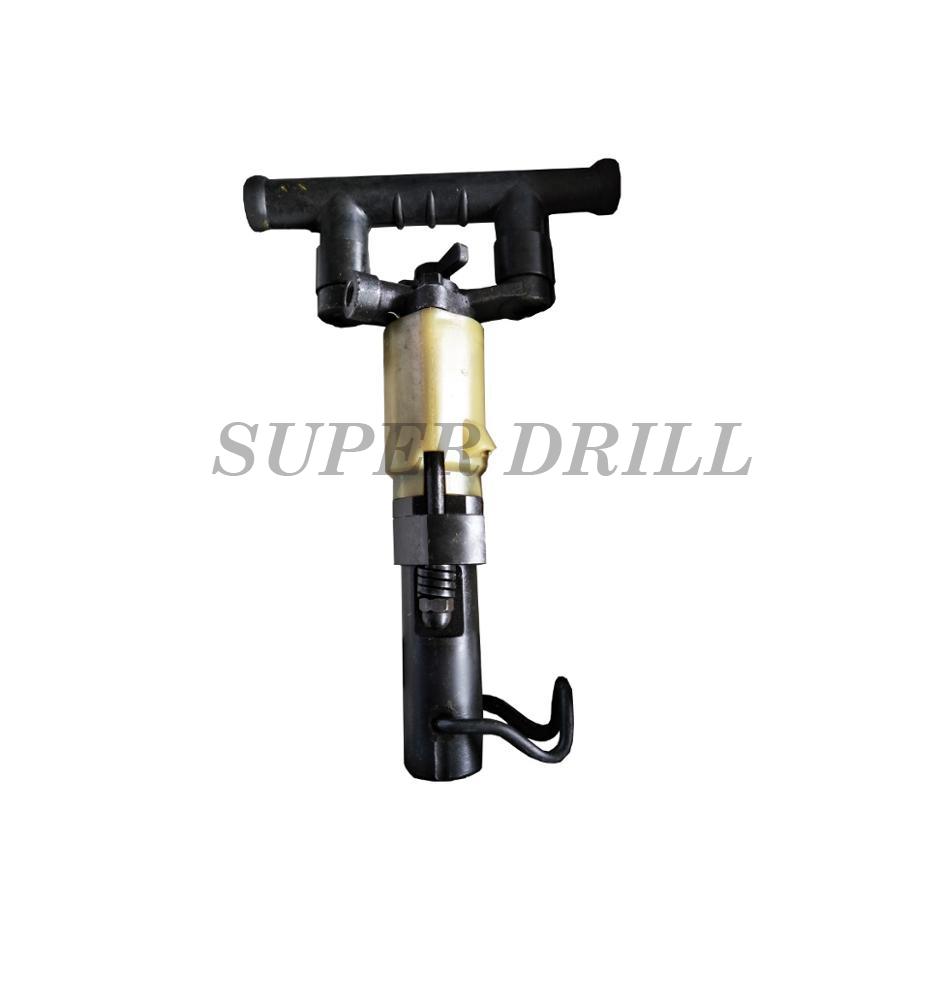

Y6 pneumatic rock drill

Model Number: Y6
Weight: 6 KG
Air Pipe Inner Diameter: 13 mm
Piston stroke: 70 mmDrilling Diameter: 20 mm
Product description: Y6 pneumatic rock drill are intended for dry drilling, While YH24 for wet drilling.Centrally grouped control, nimble starting, stable running, easy operation and maintainence.
INQUIRY Email Whatsapp

Y6 hand-held rock drill

1.Suitable for drilling downward or inclined blastholes in medium-hard or hard rocks with a hardness of f=8-18.

2.An ideal tool for rock drilling operations in small open-pit quarries, mines, water conservancy projects and road building in hilly areas etc. and for secondry blasting in large mines or other projucts.

3.Centrally grouped control, nimble starting, stable running, easy operation and maintainence.

4.Y6,Y20,Y24 are intended for dry drilling, While YH24 for wet drilling.

5.Y20LY either used for wet drilling or for dry drilling , and may be match with FT100 air leg.

Y6 pneumatic rock drill

Y6 PNEUMATIC ROCK DRILL
Weight	6 kg
Length	426 mm
Air consumption	≤9.5 L/s
Air Pipe Inner Diameter	13 mm
Size Of Drill Shank	H15x88 mm
Drilling Diameter	20 mm
Drilling Depth	0.5 m
