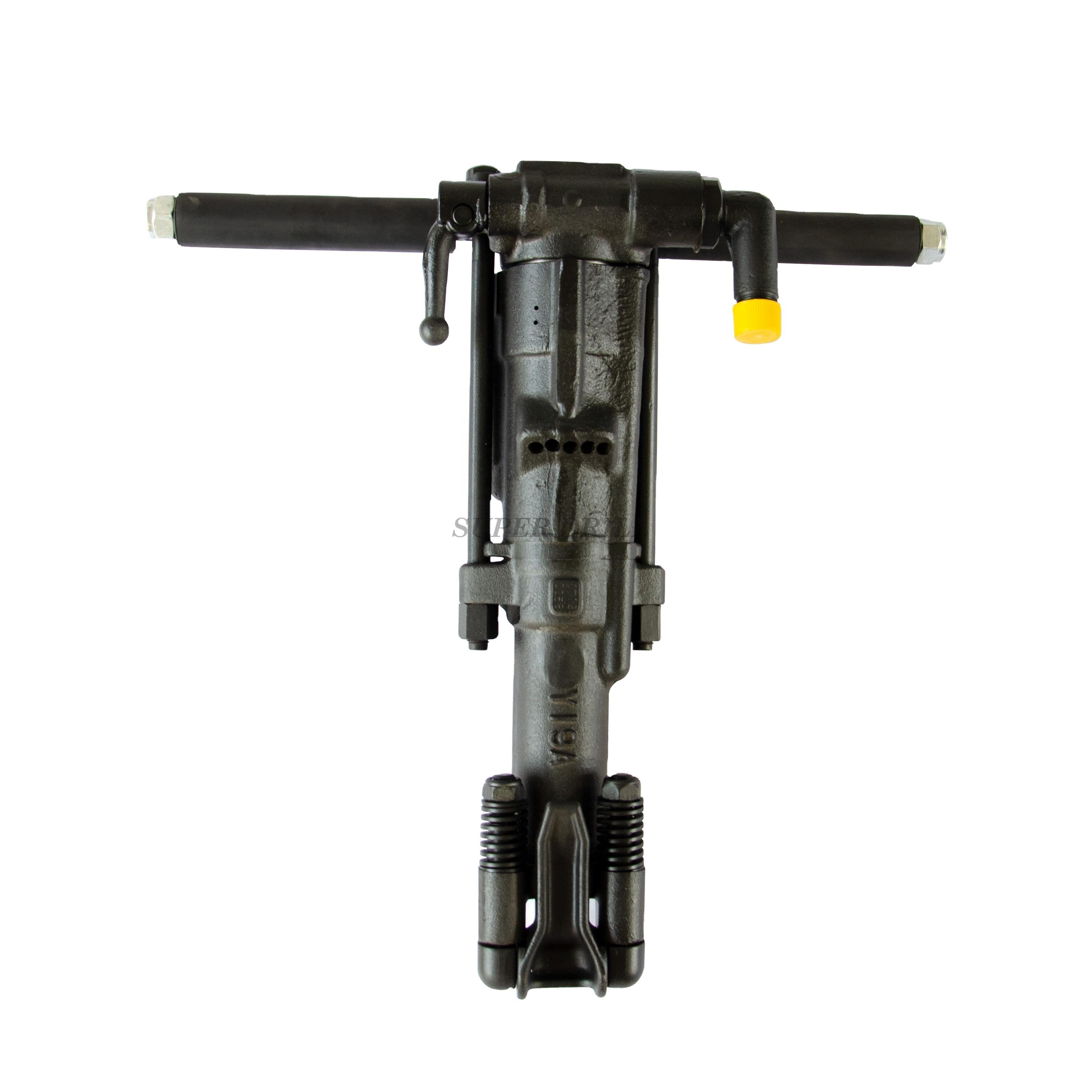

Epiroc Y19A Portable Jack Hammer Pneumatic Rock Drill Machine

Epiroc Y19A Portable Jack Hammer Pneumatic Rock Drill Machine

  • Model Number: Y19A
  • Type: rock drill
  • Average Air Consumption: 1.3m3/minDrilling Diameter: 32-40mm
  • Air consumption: 43L/S
  • Product description: Y19A is a kind of handheld air leg rock drill machine. Matched with the air leg FT100, it is able to drill both in wet and dry type on the medium and hard rocks. If used as a set with a small air comp
  • INQUIRY Email Whatsapp

Y19A is a kind of handheld air leg rock drill machine. Matched with the air leg FT100, it is able to drill both in wet and dry type on the medium and hard rocks. If used as a set with a small air compressor( 1.5-2.5m³/min), its performance is better than the same type rock drills.
Based on the above characteristics, Y19A is mainly used in the drilling operation of small coal mines and limestone quarries, blasting work of mountain roads, as well as the construction of water conservancy & other engineering works. Moreover, Y19A also
applies to the secondary blasting work of large mines.
Air consumption
≤43L/S
Percussive Frequency
≥35 HZ
Air Pressure
0.63Mpa
Revolution Number
200 R/MIN
N.W/ Length
19KG / 600MM
Drilling diameter
34-40 mm
Piston diameter
65mm
Piston stroke
54 mm
