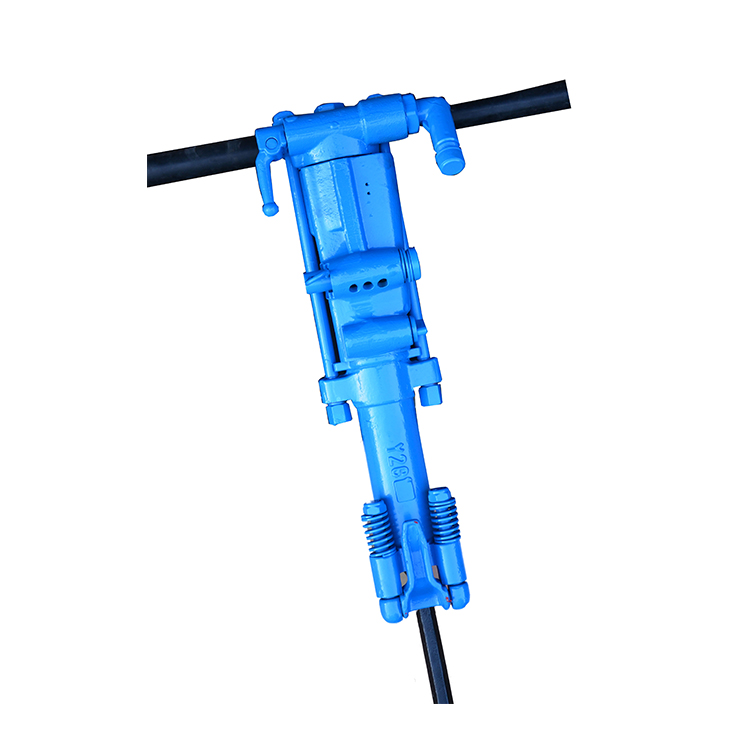

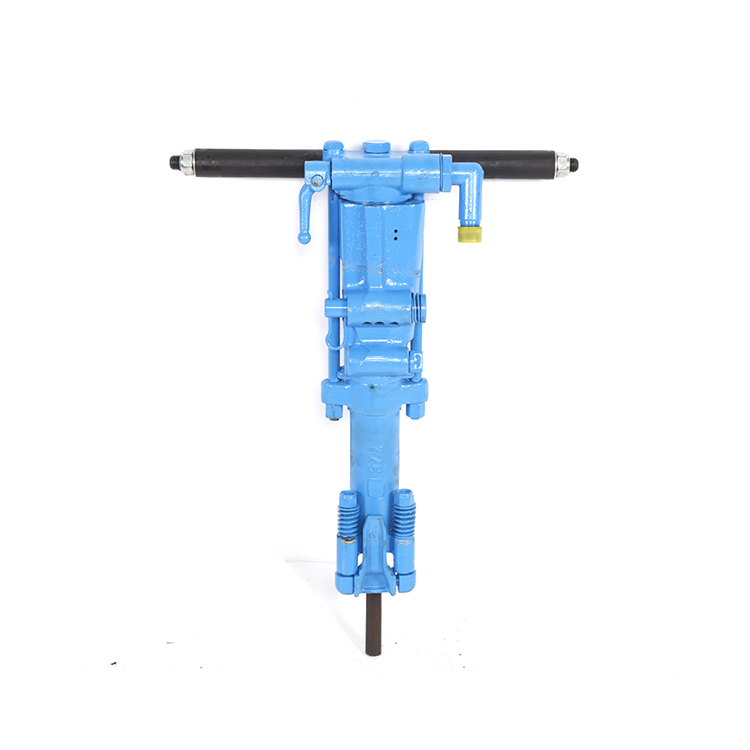

Y26 handheld rock drill

Y26 hand-held rock drill

Y26 hand-held rock drill has the advantages of small size, light weight, low gas consumption and so on dry rock drilling, suitable for small mines, quarries, mountain roads, water conservancy construction and other projects a vertical downward or sloping blasting hole or secondary blasting hole is drilled in the surface layer. Y26 rock drill with independent strong air blowing system is suitable for drilling vertical downward blasting holes.

Air consumption	50 L/S
Impact frequency	27 Hz
Drilling diameter	32-42 mm
Piston diameter	65 mm
Piston stroke	70 mm
Number of revolutions	280 R/min
Total length	650 mm
N.W.	26 Kg
