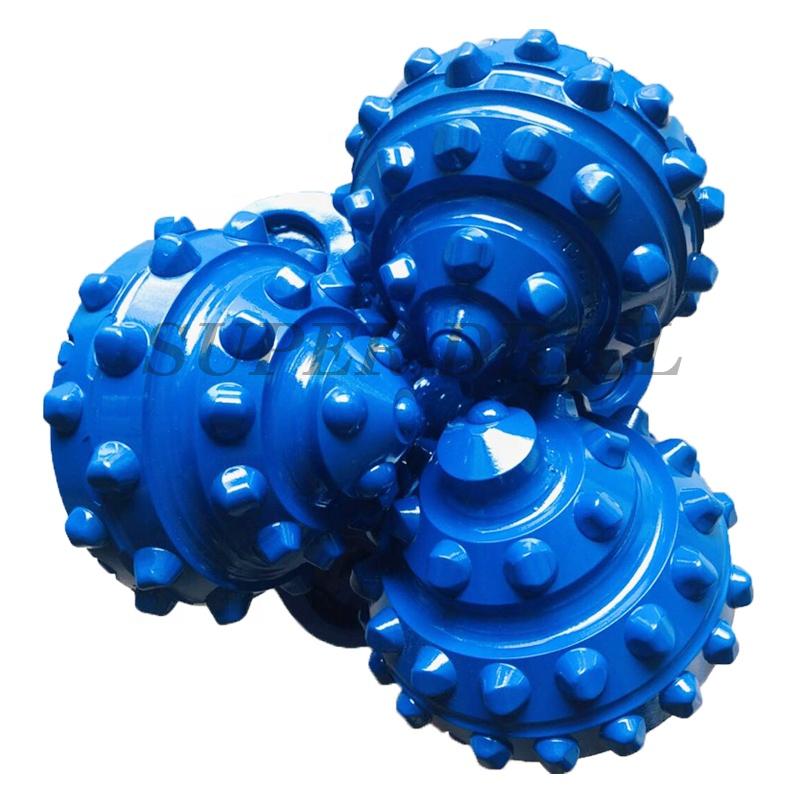

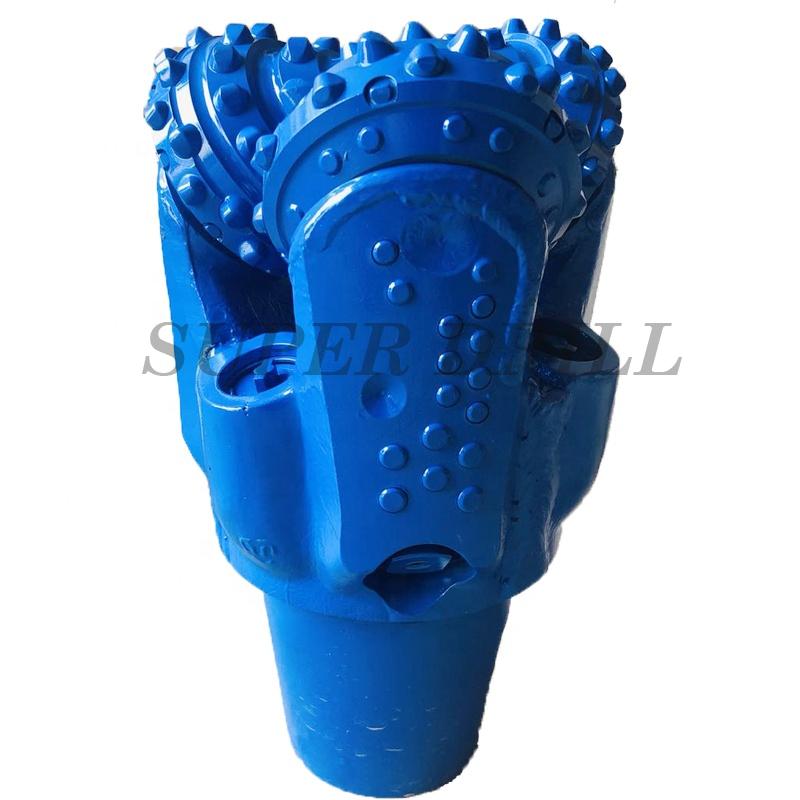

tricone roller cone drill bits

tricone roller cone drill bits

product description

Specialisted in producing of whole-new rotary type tricone bit, combination reamer tricone bit of TCI tricone

bit & steel teeth tricone bit in China. With ISO certificate & quality control. Water prospecting tricone drill bit/

milled tooth tricone drill bit/ roller cone drill bit/ rock drill bit/ TC tricone bit

TCI bits series:

Soft formation TCI Tricone Bits:

The soft formation TCI tricone bits are used to drill low compressive strength, very soft formations. This bit

maximized to use of both conical and chisel tungsten carbide inserts of large diameters and high projection.

This cutting structure design, combined with maximum cone offset, results in high bit penetration rates. The

deep intermesh of cutter rows prevents bit bailing in sticky formations.

Medium formation TCI tricone bits:

The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows

and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to

medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability.

Hard formation TCI tricone bits:

The hard formation TCI tricone bits can be used to drill hard and abrasive formations. Wear resistance

tungsten carbide inserts are used in the outer rows to prevent loss of bit gauge. Maximum numbers of

hemispherical shaped inserts are used in all rows to provide cutter durability and long life.

Medium hard formation TCI tricone bits:

The medium hard formation TCI tricone bits features robust chisel tungsten carbide inserts on the heel row

and conical on the inner rows. This design provides a fast drilling rate and added cutting structure durability in

medium to medium hard formations. The HSN rubber O-ring provides adequate sealing for bearing durability.

Steel teeth bits series:

Soft formation teeth bits:

The soft formations tooth bits are used to drill low compressive strength, soft formations. Long projection

tooth lengths are used on high offset cones to provide the greatest penetrations rates possible.Wear

resistance hard facing is used to control tooth wear. On the softest bit types this hard facing completely

covers the bit teeth.

Medium hard formations tooth bits:

The medium hard formation tooth bits are used to drill high compressive strength, medium hard formations.

Shoot projection teeth with reduced crest length are used in this series of bit designs. Durable hard facing is

applied to reduce tooth wear.

Model	TCI BIT, STEEL TOOTH BIT
IADC CODE	116 117 12 6127 136 137 216 217 226 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347
	417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535
available sizes:	From 2 7/8 to 26” larger sizes for hole opener bit ,reamer bit
advantage	most favourable price and best qualtity
bearing type:	sealed bearing and non-sealed bearing HJ(metal sealed journal bearing) HA (rubber sealed journal bearing aircooled bearing type
Formation or layer	soft ,medium soft ,hard,medium hard,very hard formation
Button size (extra features)	Button bit,saw teeth 1) Y-Conical teeth 2) X-chisel teeth 3)K- wide teeth 4)G- Gague protection
Material	Alloy steel ,carbide
Packing	Wooden case or steel case
Payment terms	T/T,L/C,Western union
Delivery terms	By sea or by air
Delivery time	Within 3 to 7 days
Market	Canada, USA,Middle east ,Africa,Europe
