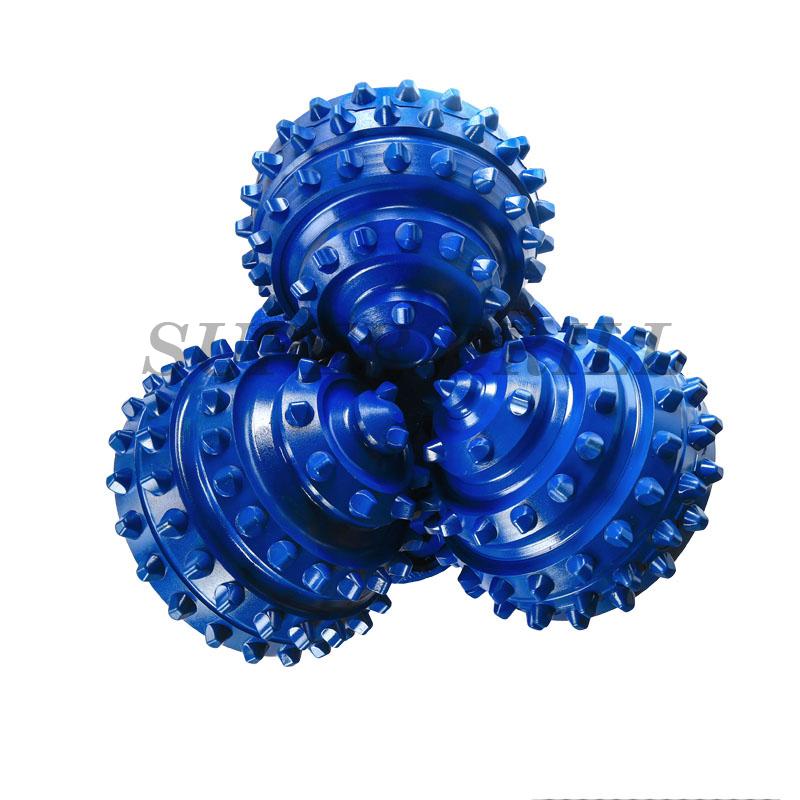

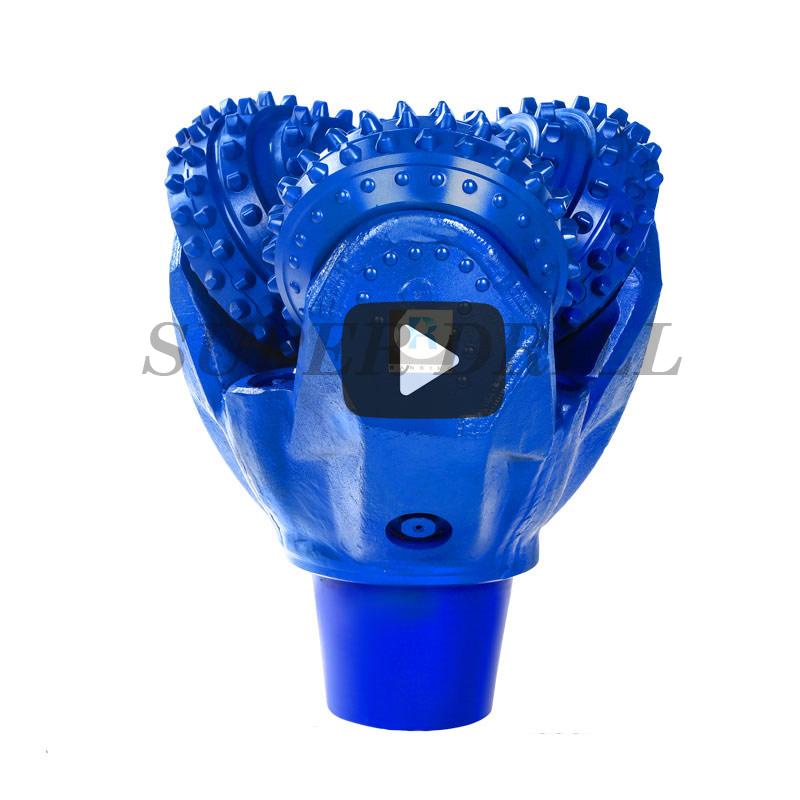

Name: 14 3/4" IADC 537 tci tricone bit
NO.:SPD-537G
Product description:TCI Tooth Tricone Bit，Elastomer sealed bearing for different applications.
Sizes range: 3 7/8 to 36 and customized according to drawings or requirements.
Certification:API &ISO:9001,compliant with IADC standard.
|
|
Basical Parameter |
|
|
Bit Size |
14 3/4"(374.7MM) |
|
|
IADC Code |
537G |
|
|
Connection |
7 5/8"API reg pin |
|
|
Nozzle Qty |
3NZ |
|
|
Make up Torque(KN.m) |
46.1~54.2 |
|
|
Operating Parameter |
||
|
Rotary Speed(rpm) |
120~50 |
|
|
Weight on Bit(KN/MM) |
0.45~1.0 |
|
|
Formation |
Soft to medium formation with low compressive strength ,such as medium soft shale,medium softlimestone,medium soft sandstone,medium formation with harder and abrasive interbeds,etc. |
|
