hydraulic landscape rock splitter

The hydraulic landscape rock splitter is a kind of hand-hold splitting and demolition tool.It can controllably split rock or concrete.Especially suit for cabined area where large machine can not work.Such as hydraulic breaker and place where is strictly limited of noise,dust,flying debris,shake,exhaust gas,also widely use in the place where need non-explosive and blast forbidden.

It is including Power Station and Cylinders.<iframe width="560" height="315" src="https://www.youtube.com/embed/bOBBWuKTjvA" title="hydraulic rock splitter Machine" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen></iframe>

Power Station:Diesel & Electric & Gasoline.

One Station can match 1-10 pieces cylinders.

Model	Splitting hole Dia.(mm)	Splitting Parts Dia.(mm)	Splitting Effective Length (mm)	Mininum Drilling hole Depth (mm)	Actual Spltting Force (Ton)	Rated Working Pressure (Mpa)	Splitting Distance (mm)
SP150	42-44	40.5	150	400	600	55.63	13-18
SP250	42-44	40.5	250	500	600	55.63	13-18
SP350	46-48	44.5	350	600	600	55.63	13-18
SP450	46-48	44.5	450	700	600	55.63	13-18

Principle and working method:

The hydraulic splitter uses the pressure provided by the hydraulic system to transmit the pressure to the splitting adze in the splitting machine, causing the adze blade of the splitting adze to expand and contract, thereby exerting a large splitting force to split rocks or other materials. open.

Phase 1, First, a hole of a precise diameter and depth is drilled into the material. The wedge set (one wedge and two counter wedges) is inserted into the drill-hole.

Phase 2, The wedge is driven forward under hydraulic pressure, forcing the counter wedges apart with a force of up to 450 tons. The material splits within seconds.

Phase 3, With enlarging counter wedges the split can be expanded to its maximum width. Reinforcing rods break or can be cut up with a suitable power tool.

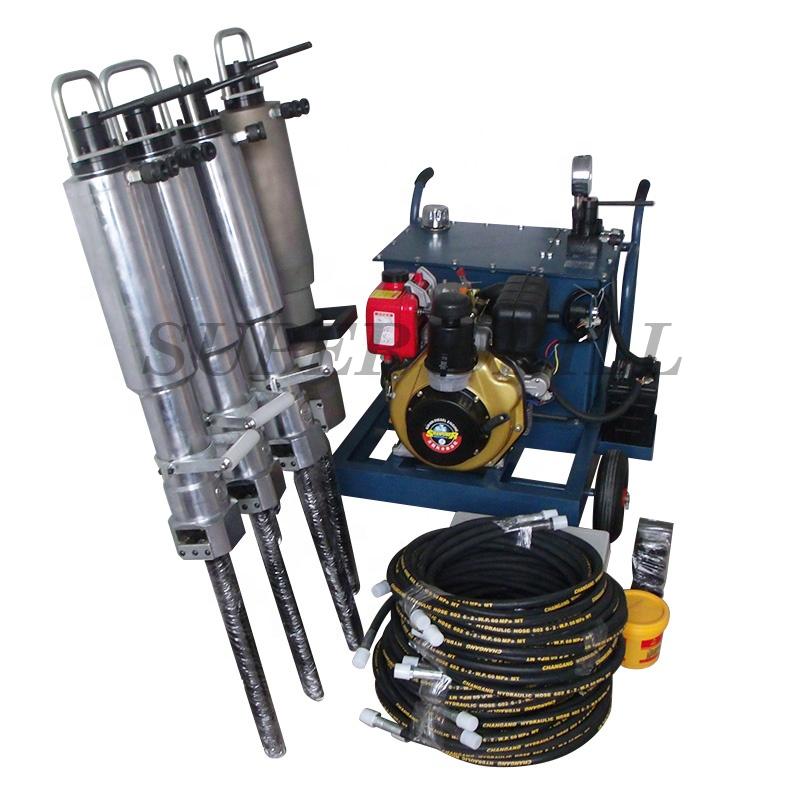

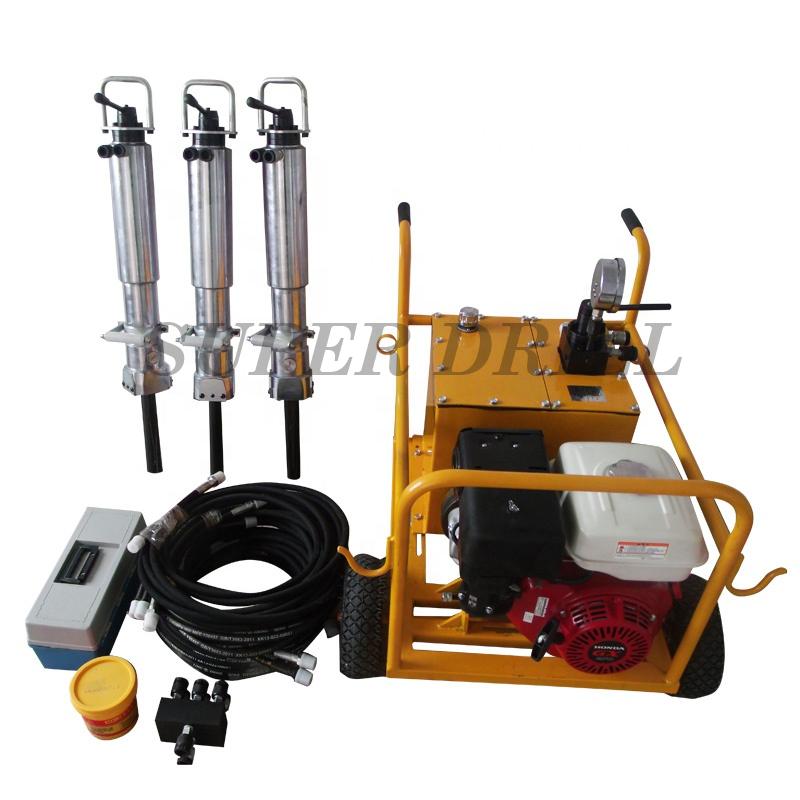

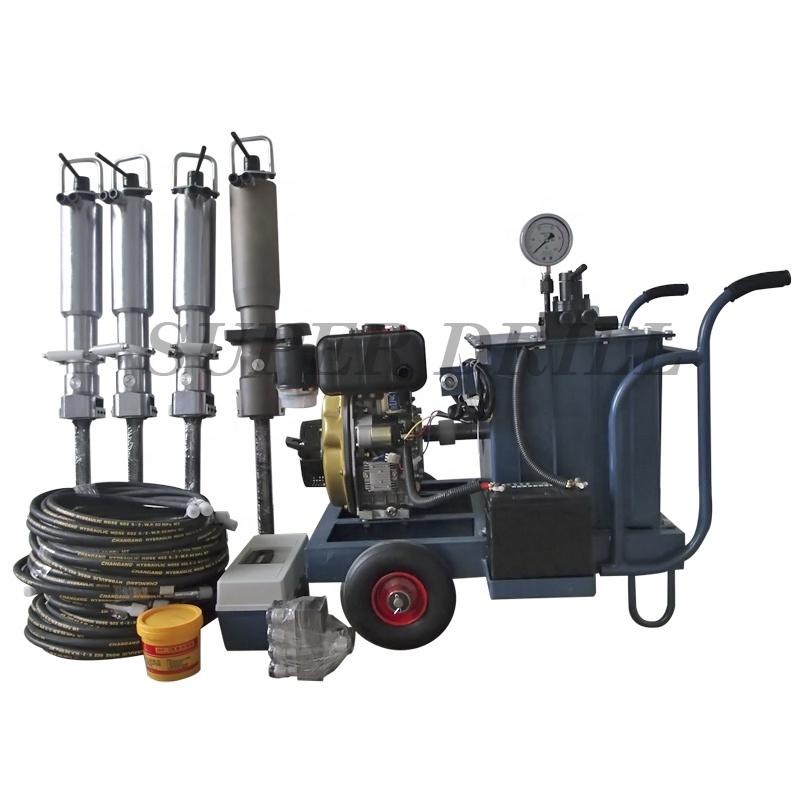

hydraulic splitter---Hydraulic pump station

hydraulic splitter---Splitting gun and wedge

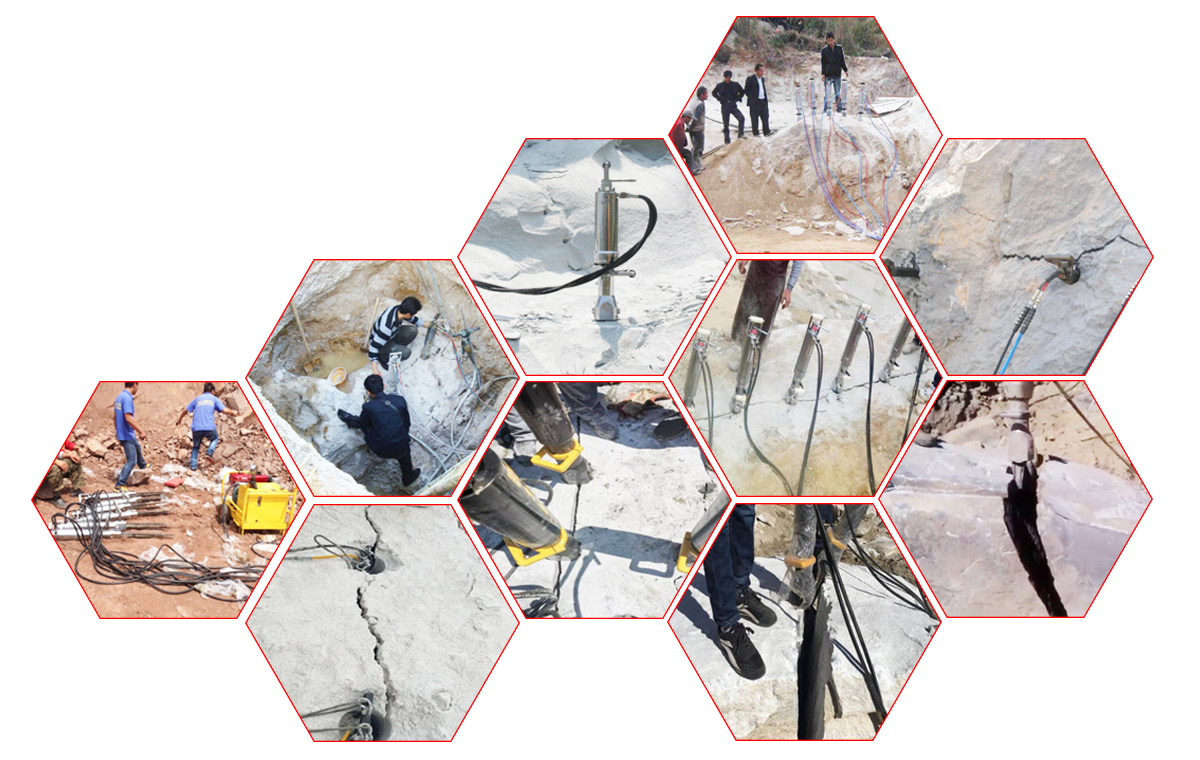

Application fields:

Hydraulic splitting machines are mainly used in construction, mining, rock mining and other fields. In construction, hydraulic splitting machines can be used in the demolition of concrete structures, rock mining and ore mining, and can be used to mine large rocks or split them into smaller pieces. In addition, hydraulic splitting machines can also play an important role in the protection of ancient buildings and stone processing.

Features and advantages:

Hydraulic splitting machine has the following features and advantages:
It has strong splitting force and can split all kinds of hard materials;
The operation is simple, just control the action of the splitting adze through the hydraulic controller;
Compact structure, small size, suitable for small spaces;
The splitting effect is good and precise splitting can be achieved;
Safe and reliable, it can avoid the safety hazards of manual splitting;
Reusable and maintainable, long service life.

4. Precautions for purchase and use:

Select the appropriate model and specification according to the type and hardness of the required splitting material;
Ensure that the equipment is of reliable quality and choose a manufacturer with a good brand and good reputation;
Use it correctly according to the operation manual, pay attention to safe operation, and avoid accidents;
Carry out regular maintenance and upkeep of equipment to ensure normal operation;
During use, attention should be paid to observing and checking whether the pressure and movement of the splitter are normal, and if there are any abnormalities, deal with them in time.
