Diamond wire saw machine

Diamond Wire Saw For Reinforce Concrete Cutting

Diamond Wire Saw For Reinforce Concrete Cutting

Application: For Reinforced Concrete cutting
Material: Diamond, Steel rope, Rubber and Spring
Beads Diameter: 10.5mm/11.5mm
Gross weight per batch: 20.000 kg
Product description: high efficiency reinforced concrete cutting diamond wire saw rope for reinforced concrete cutting 10.5mm/11.5mm,concrete saw rope, diamond wire saw for reinforced concrete cutting such as houses/bridg
INQUIRY Email Whatsapp

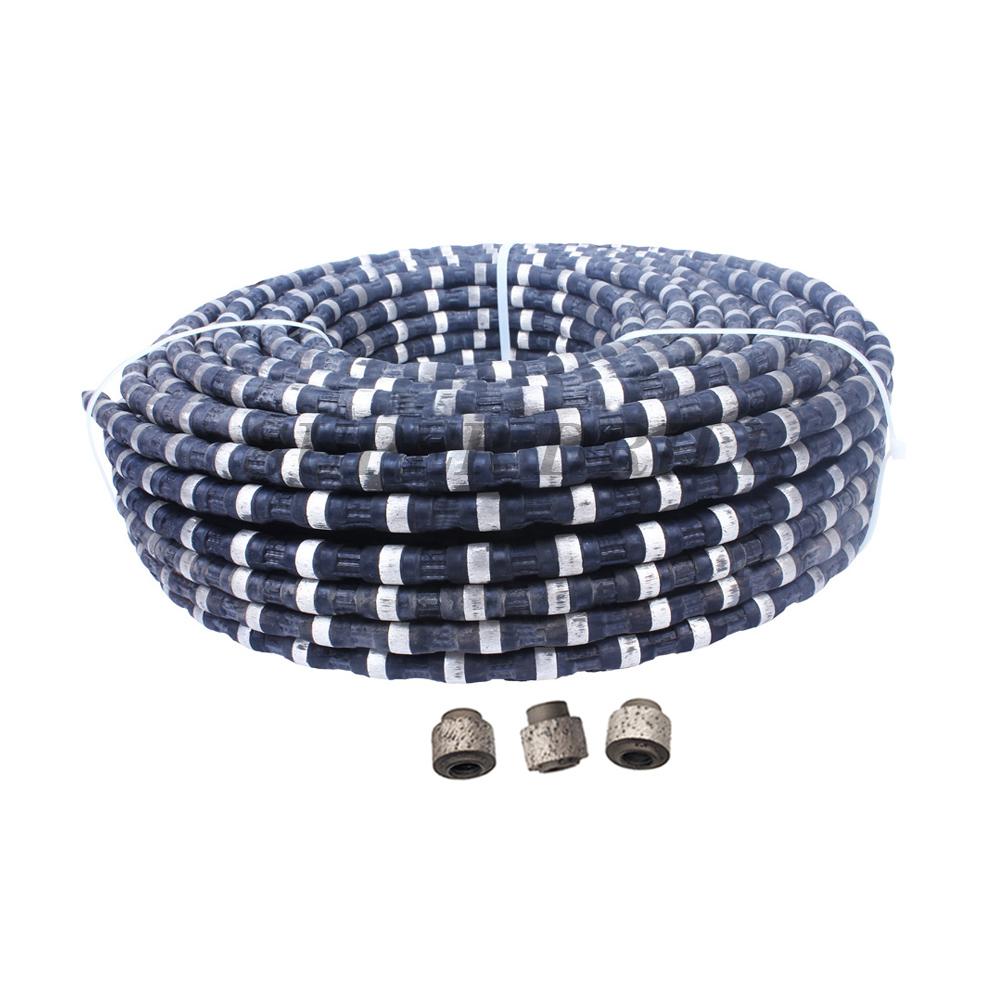

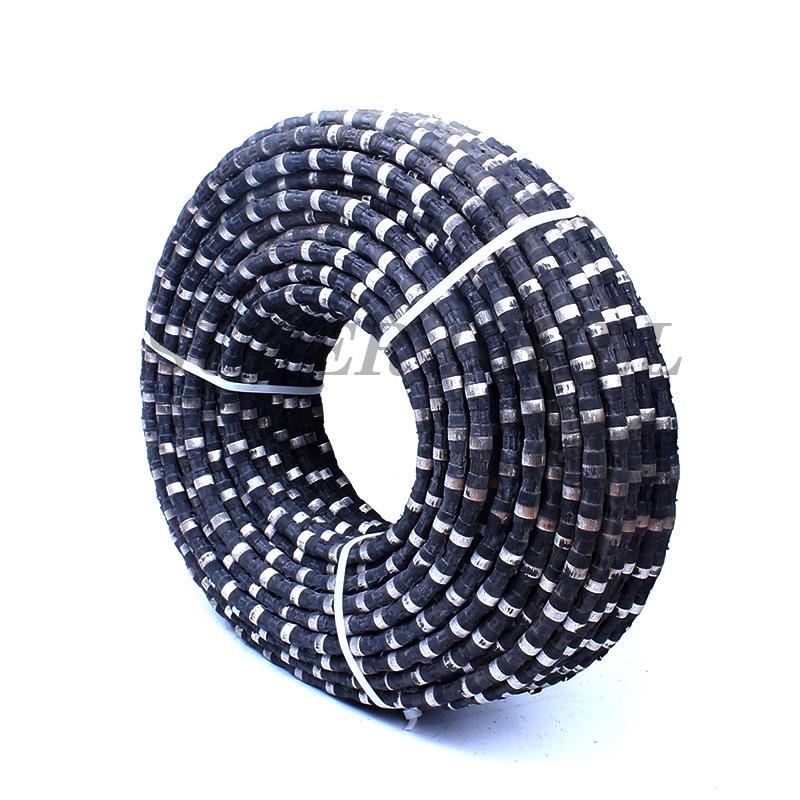

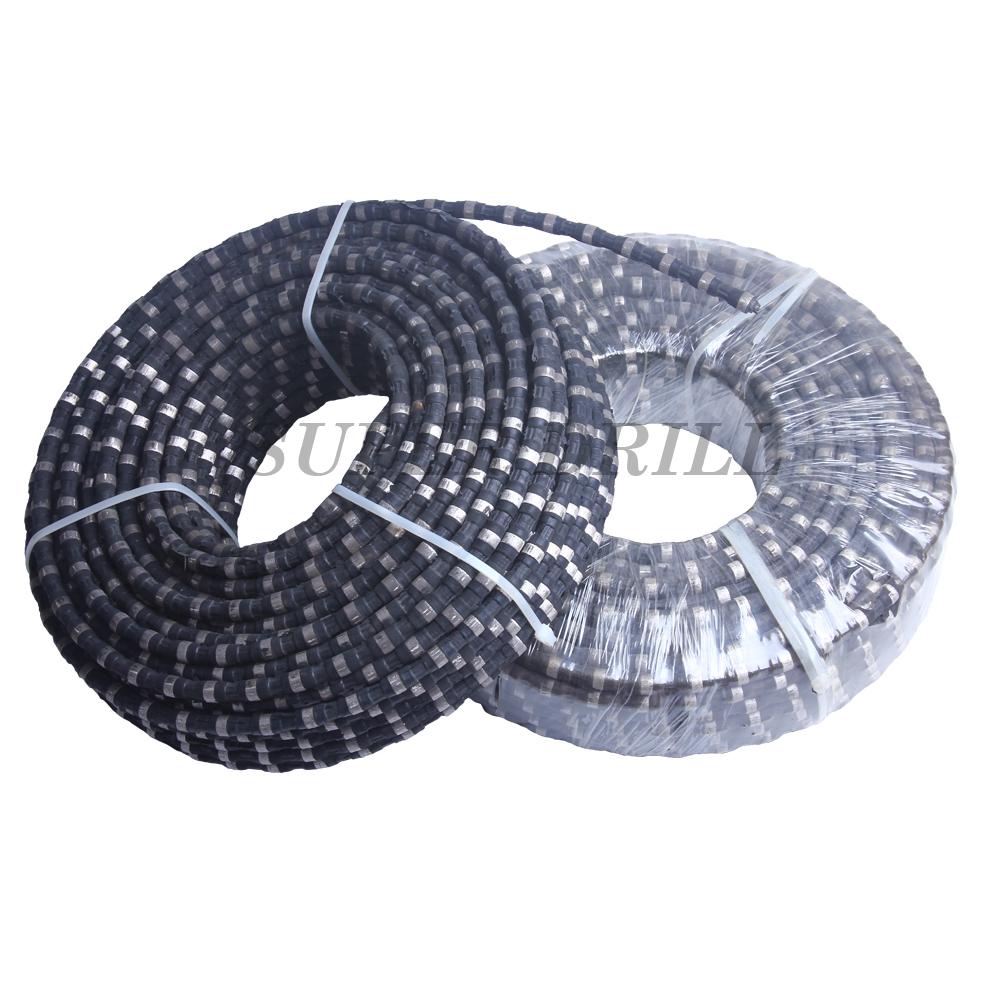

High efficiency reinforced concrete cutting diamond wire saw rope for reinforced concrete cutting 10.5mm/11.5mm

Diamond Wire Saw For Reinforce Concrete Cutting:

We recommend 10.5mm/11.5mm/12.5mm Rubber and Spring wire.

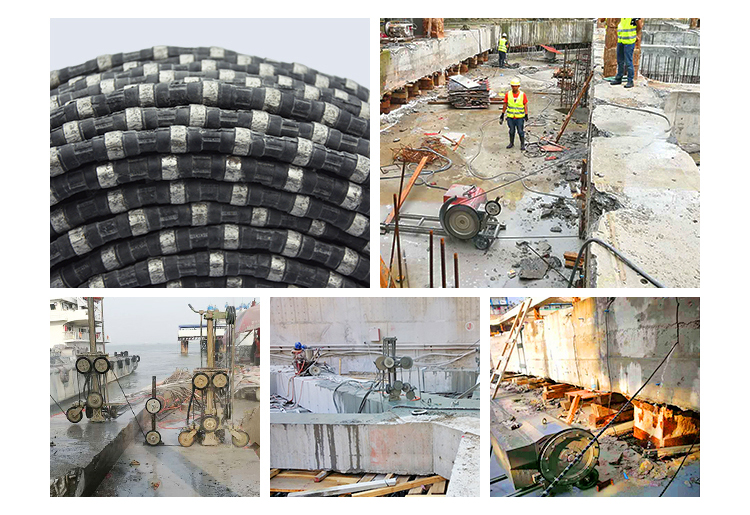

The wires are widely used in the reinforced concrete with more than 5% steel inside. Used in the building constructions, cutting for houses, bridges, cement pipes and under water buildings.

PIONEER IN THE DIAMOND TOOLS FIELD
12.5mm DIAMOND WIRE SAW FOR CONCRETE CUTTING
WE LAUNCHED 12.5mm RUBBERIZED SPRING WIRE SAW

WE ARE ASSURING THAT THE CUTTING LIFE WILL BE OVER THAN 3.0SQM/METER.

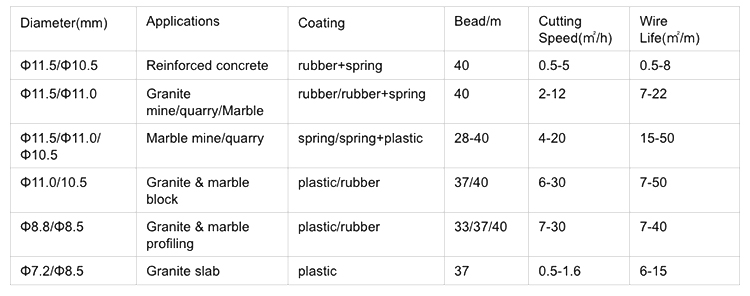

Application	For Cutting Reinforce Concrete
Diameter Of Wire Saw	10.5mm, 11.5mm，12.5mm
Technology	Sintered
Coating Fix Injection	Rubber+Spring
Beads/Meter	40 pcs
Attention	l. Checking the saw regularly and adjust timely. 2.Checking the pearl abrade regularly,Avoid the eccentric wear 3. Checking the joint regularly and adjust timely. 4. The tension of ropes is 250-300kg(Φ4-5mm ropes) 5. Water supply is around 15-25L/min
Feature	1.Very less breakage ratio when using therefore increase the working lifetime. 2.Automatic production ensures stable quality performance. 3.Safe, high efficiency and environment protecting.

Suggestion:

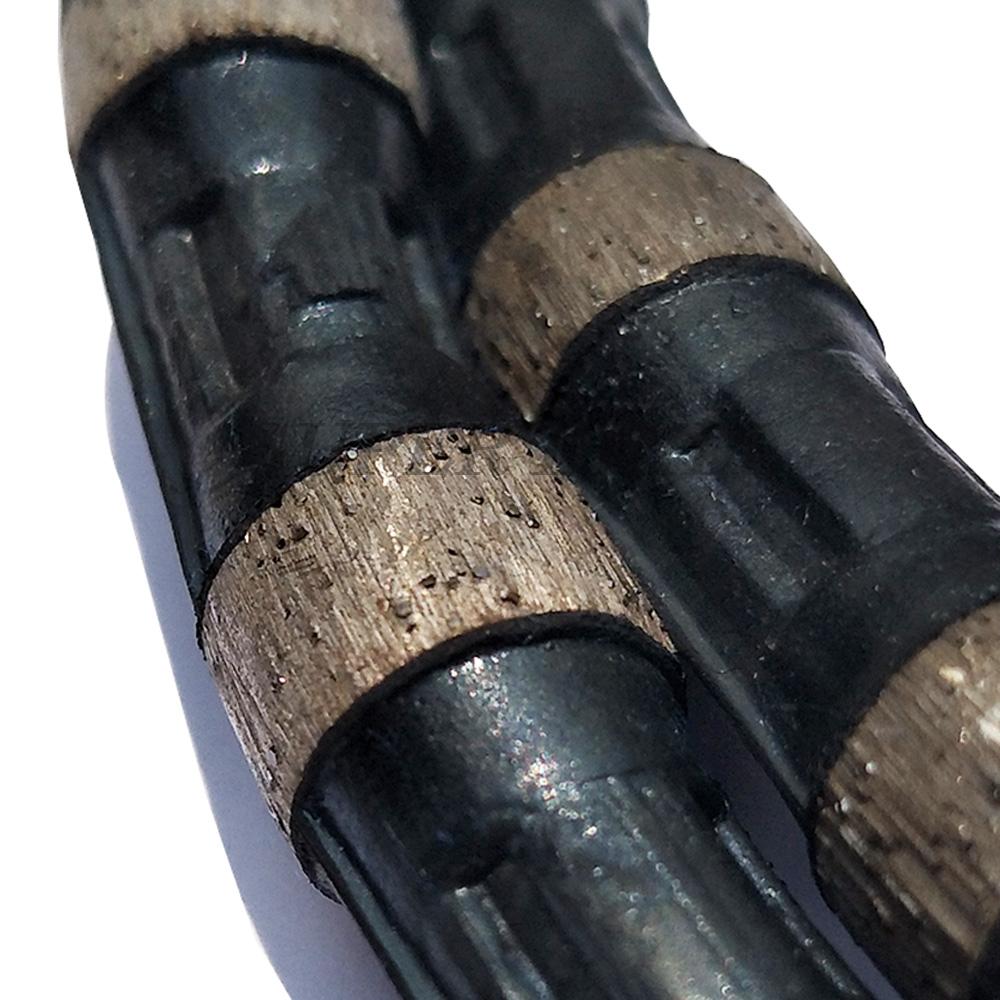

Advantages of rubber wire used in concrete cutting. The rubber and cable sticking together tightly makes good bonding and this can be more strikes during the work. The rubber has good temperature resistance, and it can be used when water is not enough.

Strong flexibility can reduce the cut-in-one-side problem, and even can be used for smaller curvature radius. Normally wire saw machines with 18.5kw/22kw are used in concrete cutting.
