Air leg type

  • YT19A Hand Held Manual Rock Drill

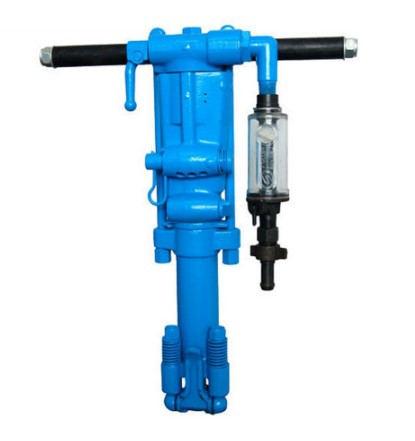

YT19A Hand Held Manual Rock Drill

YT19A Hand Held Manual Rock Drill

  • Weight : 19kg
  • Stoke :54mm
  • Impact energy :40J
  • Drill bit size :32-42mm
  • Product description: Y19A Portable Rock Drilling Machines is mainly used in small quarries, small coal mines and limestone mines for drilling, blasting for constructing roads in mountain areas ,also in the capital constru
  • INQUIRY Email Whatsapp


YT19A Hand Held Manual Rock Drill Machine jackleg rock drill price Introduction

1.YT19A Portable Rock Drilling Machines is mainly used in small quarries, small coal mines and limestone mines for drilling, blasting for constructing roads in mountain areas ,also in the capital construction for water conservancy works.
2. YT19A Portable Rock Drilling Machines is suitable for drilling works in large mines for boulder blasting and other projects as well.
3.When it is matched with air- leg model FT100,it can perform both dry and wet drilling under various kinds of rocks, and it is even more flexible in drilling operation
4.when matched with the small- size compressor of capacity of 1.5m3,the function will be better than others.
5.The flanged control valve is adopted, so it has many advantages such as reasonable in structure, quick in starting ,light in weight ,fast drilling speed, lower air consumption, smaller vibration, easier operation, lower trouble rate ,long-life parts, good economic effect.
6. YT19A Portable Rock Drilling Machines is also equipped with a rubber damping handle ,so is easy to operate and provide the operators with necessary working protection.

YT19A Hand Held Manual Rock Drill Machine jackleg rock drill price Parameter

products specifications

item name

YT19A

Weight

19kg

Overall dimensions

600×534×157mm

Stoke

54mm

Cylinder Dia

65 mm

Air pressure

0.4-0.5mpa

Water pressure

0.2-0.3mpa

Impact energy

40J

Impact frequency

>28-35Hz

Air consumption

37-43L/S

Drilling speed

180mm

Max drilling depth

>6m

Air pipe inside dia

19mm

Water pipe inside dia

13mm

Drill bit size

32-42mm

Shank size

H22X108mm
