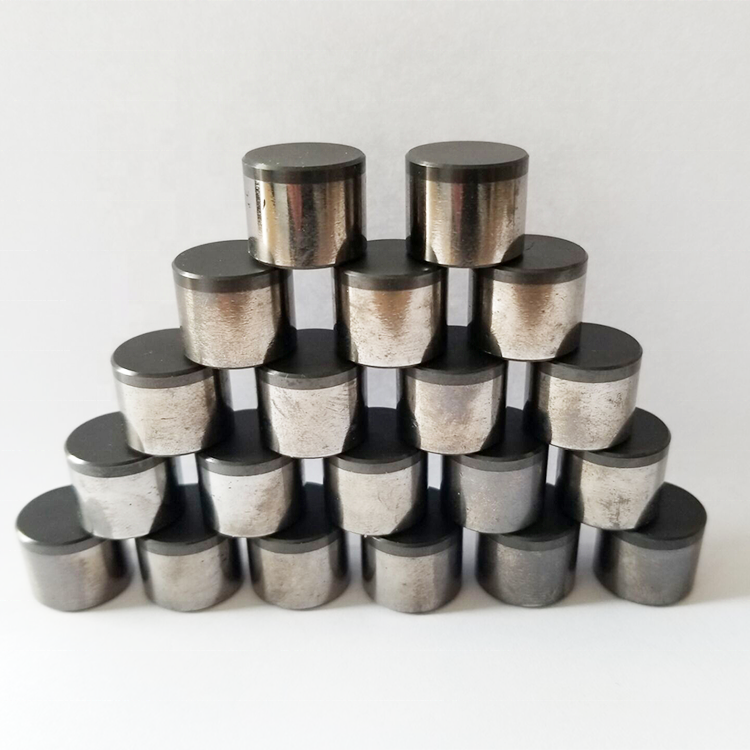

1308/1613/1913 PDC Cutters for PDC bit

Size: 1308/1313/1613/1913
Type: Diamond Cutter Pdc Inserts
Component: Tungsten Carbide and Diamond

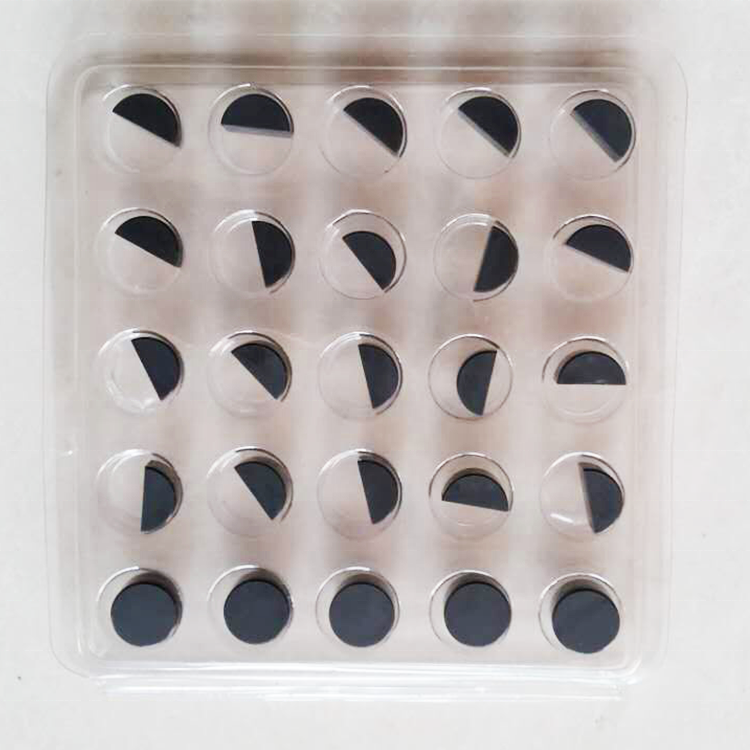

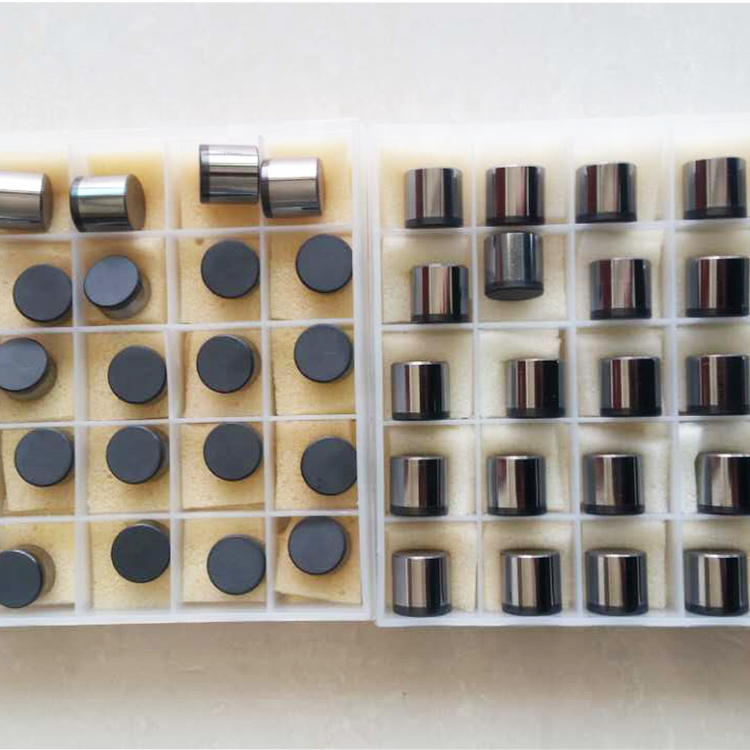

Package: plastic box with independent space for every PDC
Product description: 1308/1613/1913 PDC Cutters for PDC bit
INQUIRY Email Whatsapp


Dimension Code	Diameter (ɸD) (mm)	Height Total (H) (mm)	Diamond Height (mm)	Characteristic
1308-E7P	13.44	8.0	1.6±0.2	General
1308-E7	13.44	8.0	1.8±0.2	Strengthened
1313-E7	13.44	13.2	2.0±0.2	Strengthened
1613-E7	16.00	13.2	2.0±0.2	Standard
1613-E7L	16.00	13.2	2.0±0.2	Strengthened
1913-E7	19.05	13.2	2.0±0.2	Standard
1913-E7L	19.05	13.2	2.0±0.2	Strengthened

PDC cutter

Synthetic polycrystalline diamond compact is composed polycrystalline diamond layer and cemented carbide substrate.

It is a kind of super-abrasive product sintered under super-high pressure and at high temperature. With excellent wear-ability,
this very hard product has very high impact toughness.

PDC cutters are used in a wide variety of applications, including

-Oil and gas PDC bits as face, gauge, and backup cutters
-PDC bits for geothermal drilling
-PDC bits for water well drilling
-PDC bits for directional drilling
-Reaming tools
-Core bits
-Bearing elements
