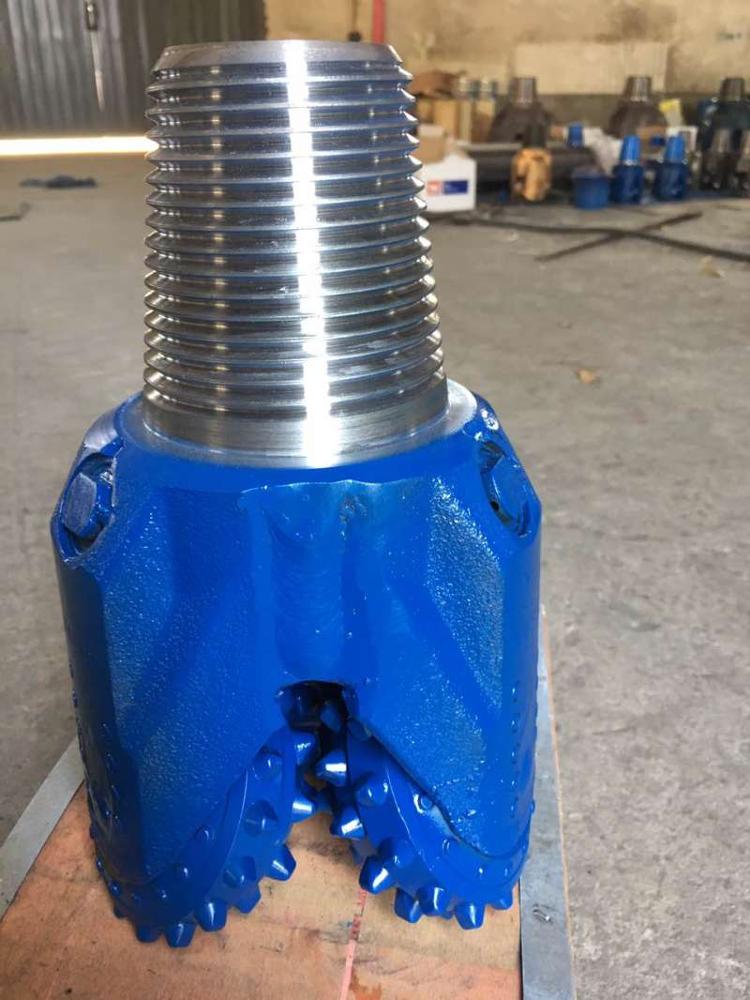

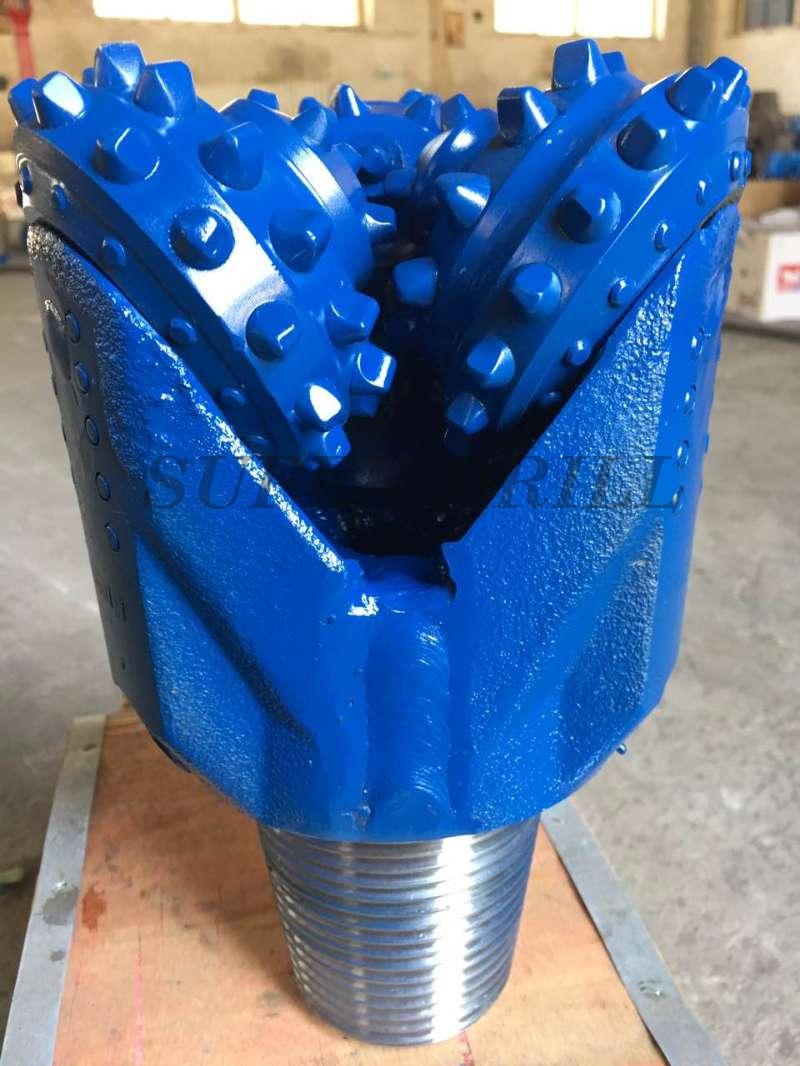

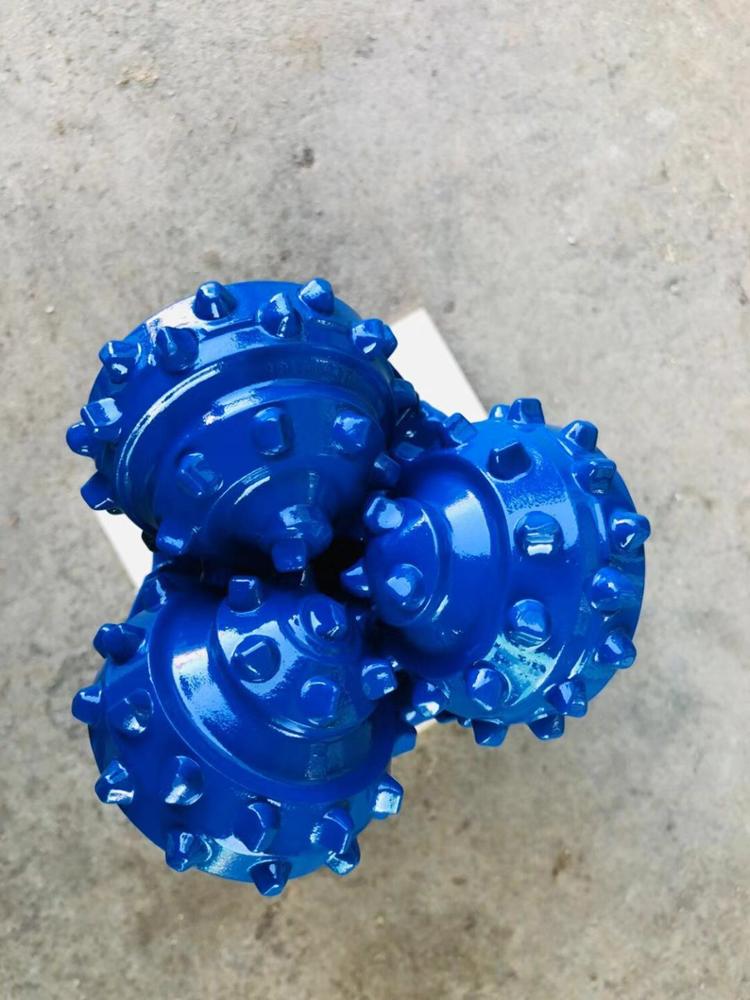

4 3/4 Inch IADC537 Tricone Bit
Samples: IADC 537
$495.00/Piece | 1 Piece (Min. Order)
Basical Specification
Size of tricone bit
4 3/4" (120.65mm)
Thread Connection
2 3/8"API reg pin
IADC CODE
537
Bearing type
rubber /metal o-ring journal bearing
Operating Parameters
WOB (Weight On Bit)
0.35~1.05 KN/mm (bit Dia.)
Rotary speed
110~40 r/min / 220~40 r/min
Make up torque
6.1-7.5 KN.M
Formation
Medium formation with high compressive strength ,and high drillability ,such as mudstone,gypsum,salt,soft limestone,etc.
