$150.00/Piece|1 Piece (Min. Order)

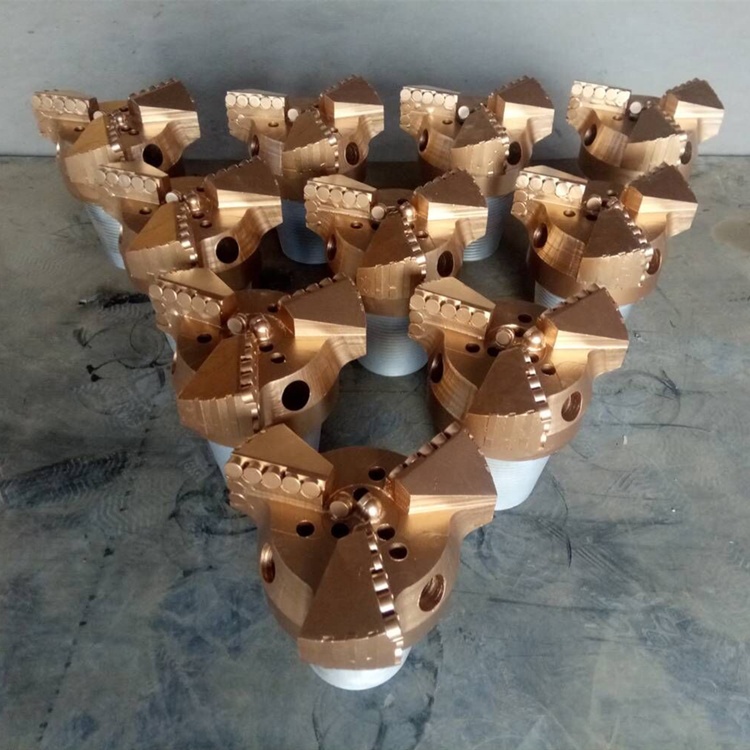

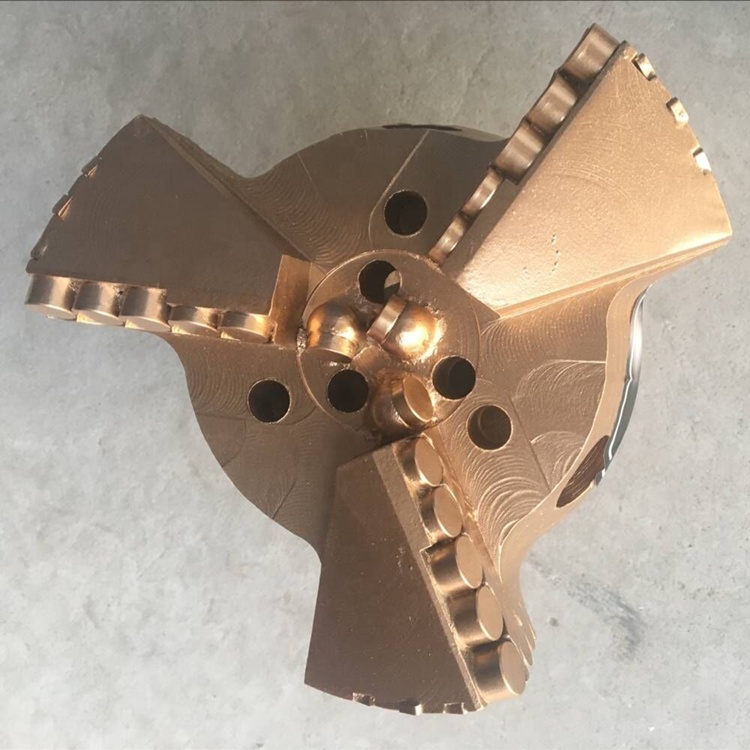

Drag bit are manufactured from forged high quality alloy steel and PDC cutter insert, plus state of art welding technology and multiple precision heat treatment to provide highest penetration rate and longest lifespan at roughest condition.
Drag bits are designed for medium to hard formation and are used in areas that contain a lot of rock and also in the oil field.
Size
Type Pin
Wt. (lbs.)
3 7/8" - 4 3/4"
2 3/8" API Pin
6
4 7/8" - 5 1/8"
2 3/8" API Pin
7
5 1/4" - 5 1/2"
2 3/8" API Pin
8
4 5/8" - 5"
2 7/8" API Pin
10
5 1/8" - 5 1/2"
2 7/8" API Pin
11
5 5/8" - 6 1/4"
3 1/2" API Pin
18
6 1/2" - 6 3/4"
3 1/2" API Pin
19
7" - 7 1/2"
3 1/2" API Pin
21
7 5/8" - 8"-12 1/4
3 1/2" API Pin 4 1/2 6 5/8
23
