$1850.00/Piece|1 Piece (Min. Order)
Size:

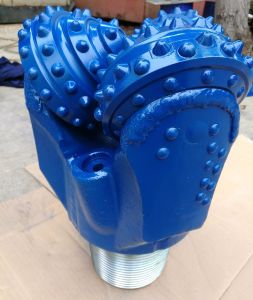

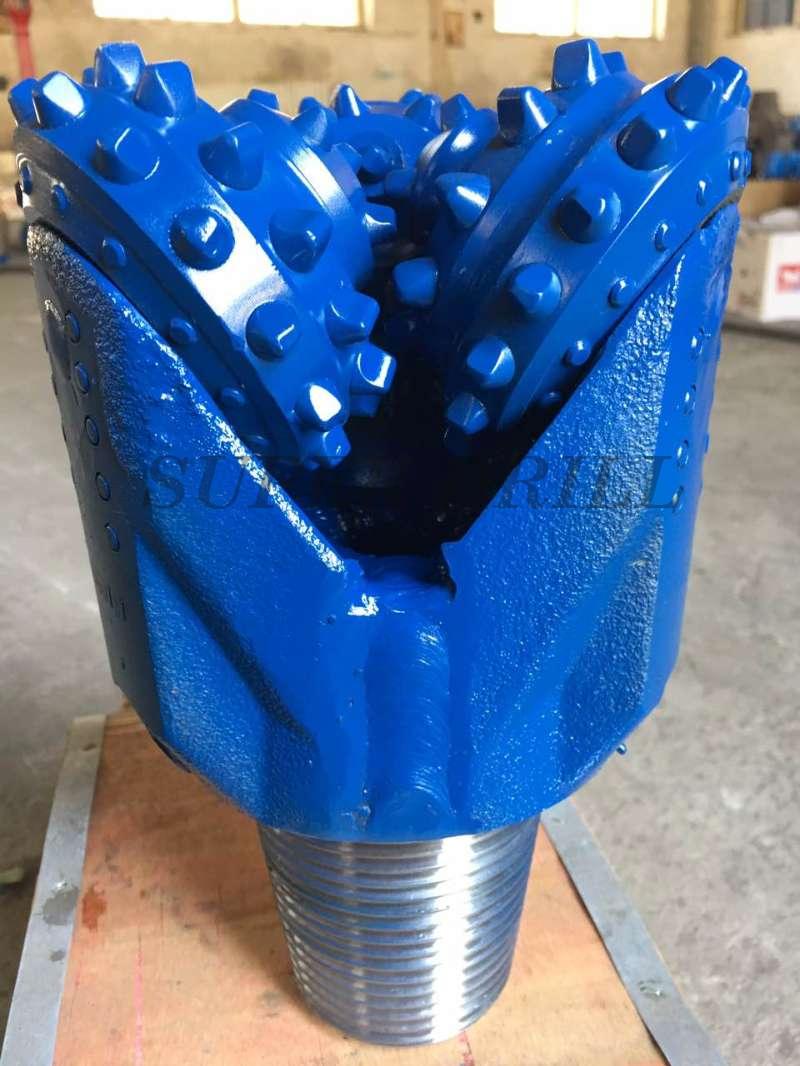

12 1/4 Inch Tci Tricone Bit
IADC Code:
617
Connection:
6 5/8"API Reg Pin
Nozzle Qty:
3NZ
Make Up Torque(KN.m):
16.3~21.7
Rotary Speed(rpm):
80~40
Bearing Type:
Sealed And Non-sealed Bearing
Machine Type:
Water Well Drilling
Color:
Bule
High Light:
tricone drill bit
tungsten carbide insert bit
|
|
Basical Parameter | |
| Bit Size | 12 1/4"(311.1MM) | |
| IADC Code | 617 | |
| Connection | 6 5/8"API reg pin | |
| Nozzle Qty | 3NZ | |
| Make up Torque(KN.m) | 16.3~21.7 | |
| Operating Parameter | ||
| Rotary Speed(rpm) | 80~40 | |
| Weight on Bit(KN/MM) | 0.5~1.05 | |
| Formation | Low compressive strength,medium hard formation with dard abrasive interlayer,like Hard shale,anhydrite,soft limestone,sandstone,dolomite with mezzanine,etc. | |
