10 inch drilling step drag bit for water well drilling

10 inch drilling step drag bit for water well drilling

• 1 - 49 pieces
  $159.00
• >=50 pieces

  $156.00

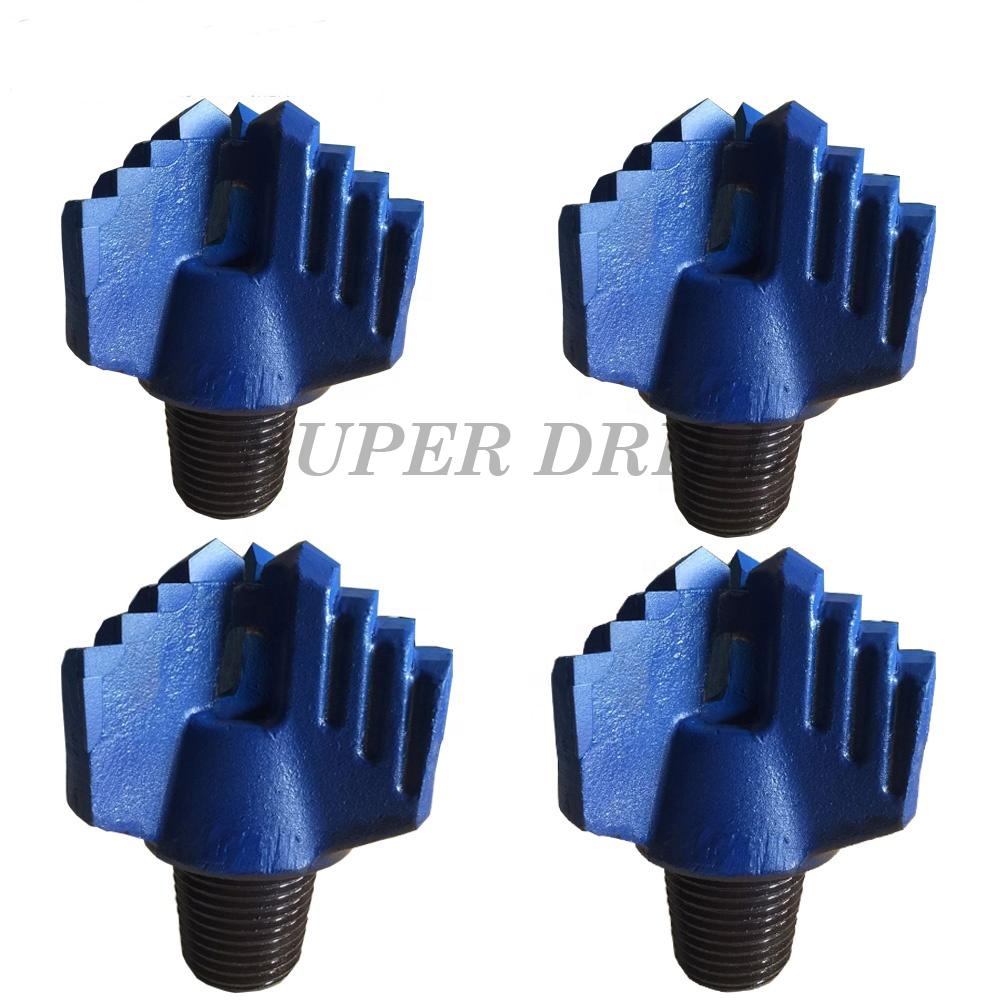

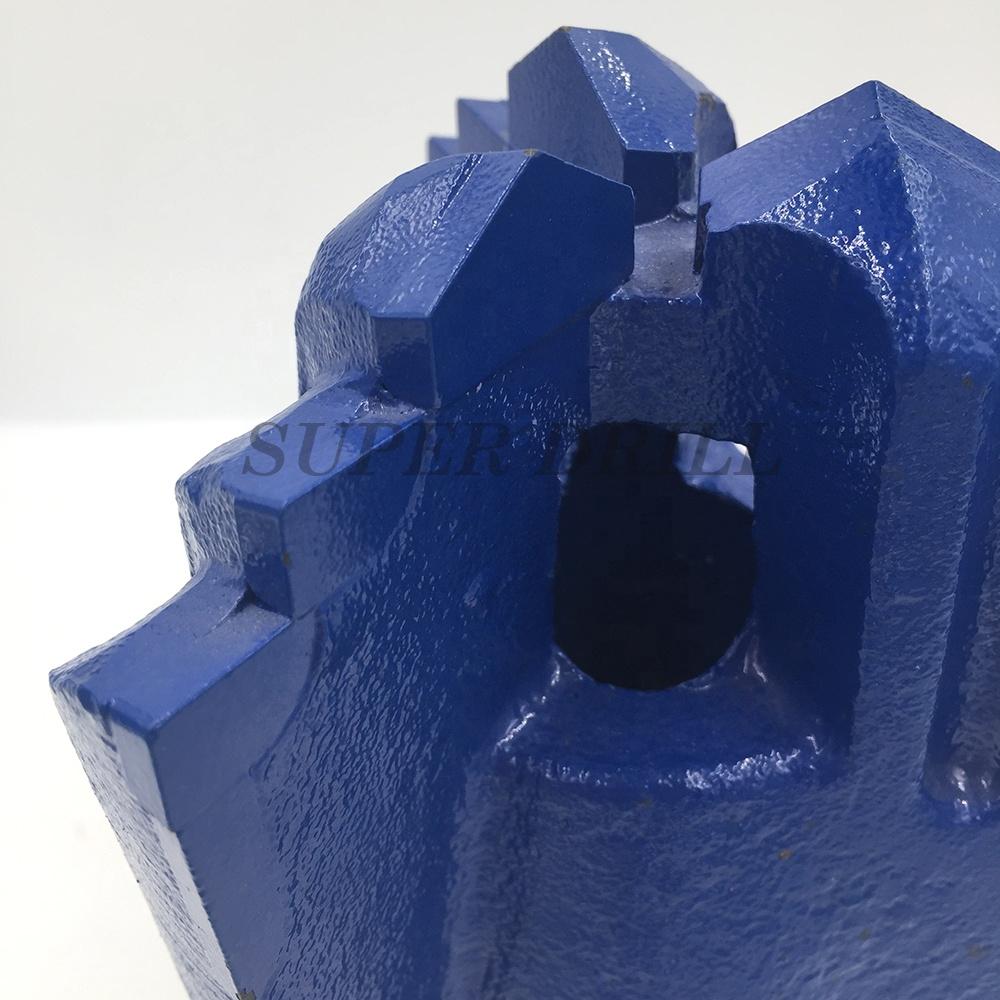

3 wings step drag bits are one piece construction of alloy steel cast with tungsten carbide cutting tips and gauge sides to ensure longer life. It has 3 wings and 3 flushing holes. Compared with 4 wings, 3 wings step drag bits tend to drill faster and aggressive, whereas, are shorter lasting and less durable.3 wings step style drag bits will produce larger cuttings force than chevron style drag bit. Rotary table speed ofstep drag bits should be between 60 and 80 rpm with light weight on bit (WOB).



3 wings step drag bits are economical tools when drilling softer geological formations and shallower depths, they are primarilydesigned for soft tomedium formations, such as Clay, Loam, Silt ,Mostsoft-to-medium soilsthat have some moisture, etc. And also step drag bits are recommended for drilling in Mining, Exploration, Environmental, Water well, Geo Exchange, etc.





3 wings step drag bits
Diameter		Thread
2 to 17 1/2 inch	50.8 to 444.5mm	Optional



Note: The diameter and thread showed as above are usual size, other sizes are available upon request.

Thread size: 2 3/8'' API Reg, 2 7/8'' API Reg, 3 1/2'' API Reg, 4 1/2'' API Reg, 6 5/8'' API Reg, 2'' API IF, 2 3/8'' API IF, 2 7/8'' API IF, A Rod, N Rod, AW, BW, NW, AWJ, BWJ, NWJ.
