superdrill Rock Splitting Wedges Stone and Concrete Split Wedges for Hydraulic Splitter

superdrill Rock Splitting Wedges Stone and Concrete Split Wedges for Hydraulic Splitter

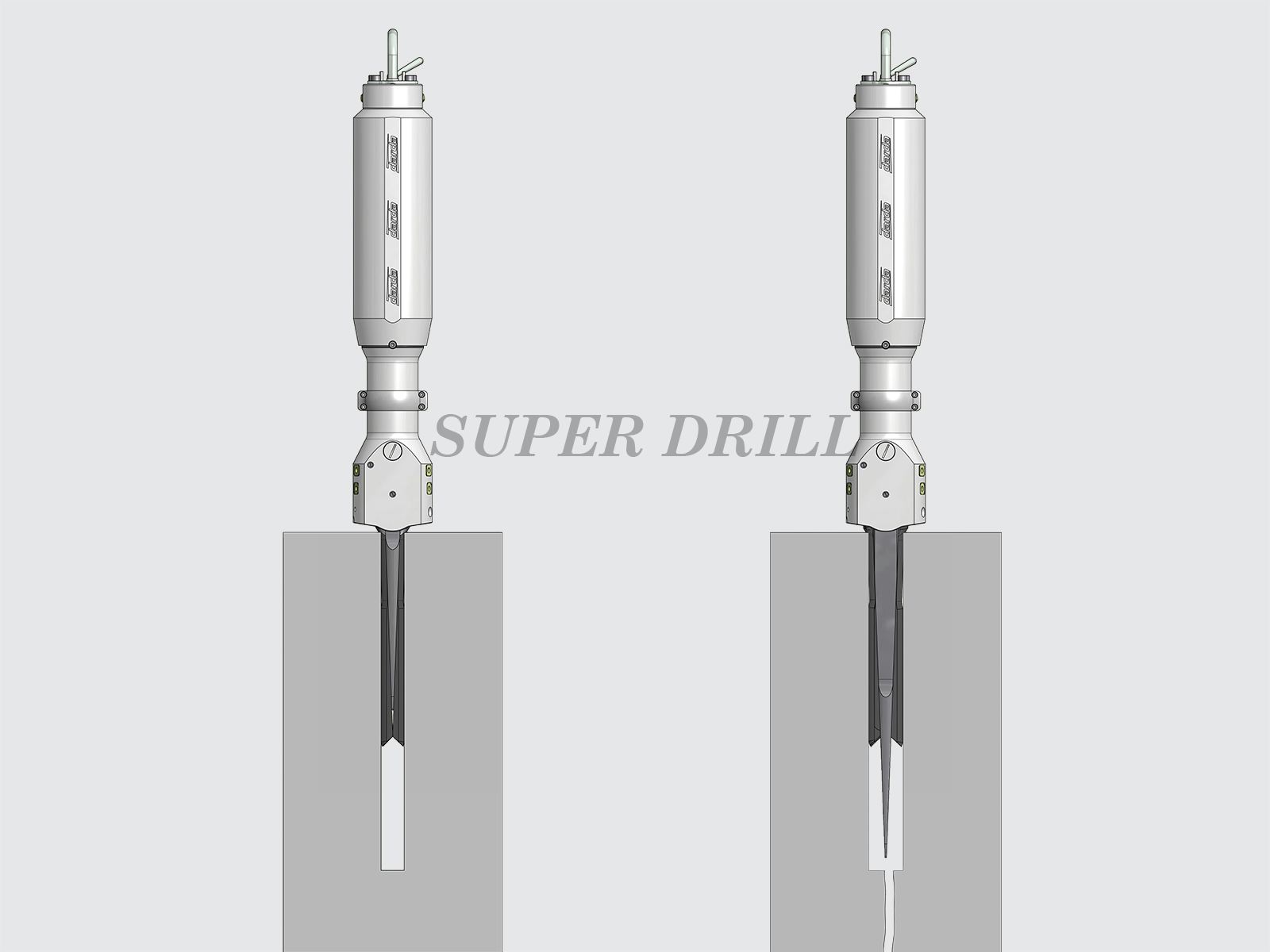

Rock and concrete by nature have low tensile strength. By applying hydraulic force to a wedge, it is possible to tear off large sections of material from the inside in a matter of seconds.

Hydraulic Rock and Concrete Splitters allow controlled, silent and cost-effective operations!

Highly productive, they are the alternative conventional methods such as explosives and demolition hammers, since none of the related safety measures, costs and delays. The splitting cylinders are the solution especially in urban and sensitive areas and controlled demolition inside buildings, as there is almost no noise and vibration, as well as flying rocks. Demolition in residential complexes, offices, schools, hospitals during operation is therefore no problem.

A splitting device is easy to operate and transport with only one man. The use in closed rooms in confined spaces or in poorly accessible places is therefore possible without any problems. The material is not pulverized by the splitting technique. The cohesion of the material remains given and the production of larger split pieces guarantee you with more volume per borehole highest productivity under safe conditions.

The handheal Rock and Concrete Splitters have an enormous power-to-weight ratio. One person can work in any position and even under water, while other work continues in parallel: Silent, without vibrations and flying rocks.

With four types of pump pack station models and different size splitting wedge and shims, matched to the prevalent material, we have the perfect solution for every operating condition.

Hydraulic rock and concrete splitter technical parameters

Model No.	Piston diameter(mm)	Hole diameter(mm)	Hole depth(mm)	splitting force(T)	Splitting width(mm)	Unit weight(kg)	Working pressure
HSG90	90	Φ40-42	≥450	642	15~40	32	55~63(Mpa)
HSG100	100	Φ42-46	≥550	925	12~40	38
C100	90	Φ42-46	≥550	618	12~40	28
C120	90	Φ42-48	≥610	900	12~40	30





Hydraulic power unit technical parameters

Engine model	Engine power	Working oil pressure	Tank capacity	Flux	Splitter quantity	Weight
Electric motor	0.75KW(1HP)	55-63(Mpa)	5L	0.7L/M	1Pc	23kg
	4.0KW(5.5HP)		40L	2-13L/M	1-5Pcs	75kg
	7.5KW(10HP)		120L	13L/M	1-10Pcs	100kg
Diesel	4.2Kw(5.6HP)		40L	2-13L/M	1-10Pcs	120kg
Gasoline	6.3Kw(8.4HP)		40L	2-13L/M	1-10Pcs	125kg
Air motor	3kw(4HP),2000rmp, 7bar, 4m³/min.	Air:0.5-0.7Mpa;Oil:55-60Mpa	40L	13L/M	1-10Pcs	100kg
