hydraulic price darda divisor manual rock splitter

The hydraulic rock splitter is a kind of hand-hold splitting and demolition tool.It can controllably split rock or concrete.Especially suit for cabined area where large machine can not work.Such as hydraulic breaker and place where is strictly limited of noise,dust,flying debris,shake,exhaust gas,also widely use in the place where need non-explosive and blast forbidden.

<iframe width="560" height="315" src="https://www.youtube.com/embed/bOBBWuKTjvA" title="Hydraulic Rock Splitter Machine" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen></iframe>

uses:

Demolition of large-thickness concrete structures (such as foundations, floor slabs, stairways, plinths, pillars, bridge decks, bridge abutments, retaining walls).

Demolition of large rocks resulting from excavations and trenches, mines enlargements, tunneling or resulting from previous processes.

Wherever it is important to intervene quickly and cleanly without generating dust (Hospitals, data centers, production departments of companies).

For any demolition in respect of noise level during the whole day (Condos, offices, schools).

Demolitions of structures particularly vulnerable to vibrations and percussions (historical buildings, luxury apartments, structures that can fall down).

Wherever for reason of space or transportability it is impossible using bigger and heavier machineries (buildings upper floors, aerial platforms, in confined spaces such as basements).

Interventions in presence of water and underwater demolitions.

In quarries for the production of natural stone blocks production without resorting to blasting, ensuring more safety and less material waste.

U.S.A.R. applications (Urban Search and Rescue) where it is necessary to remove large stones or rubble caused by earthquakes, floods and explosions due to gas leaks.

It is including Power Station and Cylinders.

Power Station:Diesel & Electric & Gasoline.

One Station can match 1-10 pieces cylinders.

Model	Splitting hole Dia.(mm)	Splitting Parts Dia.(mm)	Splitting Effective Length (mm)	Mininum Drilling hole Depth (mm)	Actual Spltting Force (Ton)	Rated Working Pressure (Mpa)	Splitting Distance (mm)
SP150	42-44	40.5	150	400	600	55.63	13-18
SP250	42-44	40.5	250	500	600	55.63	13-18
SP350	46-48	44.5	350	600	600	55.63	13-18
SP450	46-48	44.5	450	700	600	55.63	13-18

Phase 1, First, a hole of a precise diameter and depth is drilled into the material. The wedge set (one wedge and two counter wedges) is inserted into the drill-hole.

Phase 2, The wedge is driven forward under hydraulic pressure, forcing the counter wedges apart with a force of up to 450 tons. The material splits within seconds.

Phase 3, With enlarging counter wedges the split can be expanded to its maximum width. Reinforcing rods break or can be cut up with a suitable power tool.

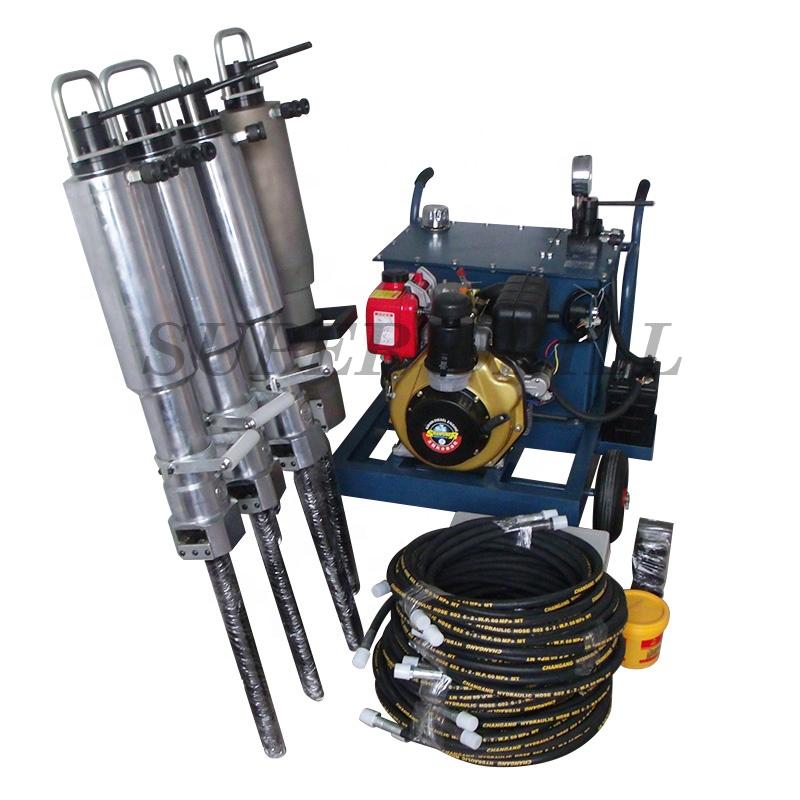

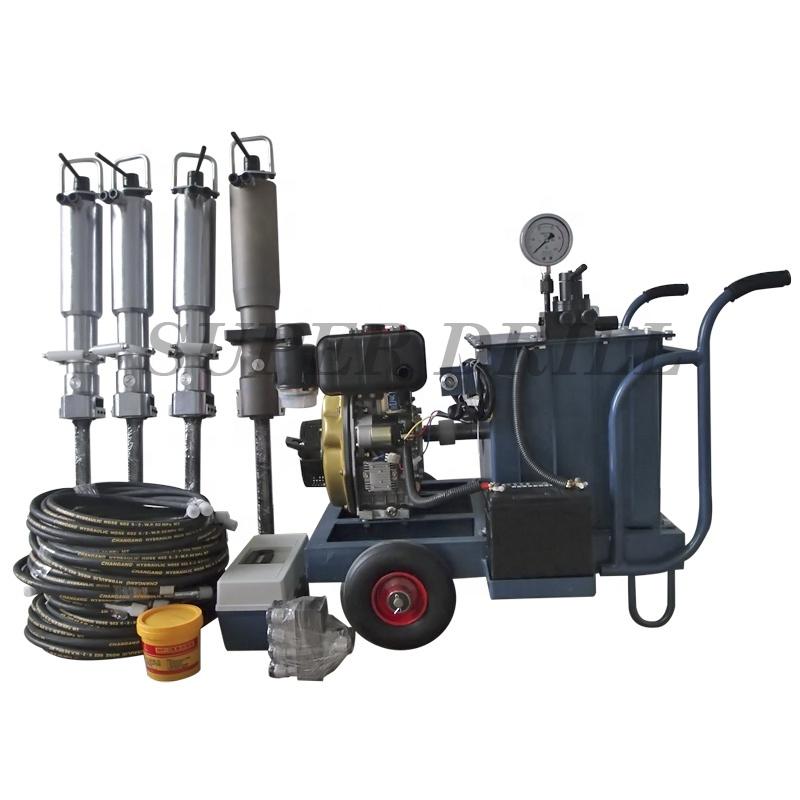

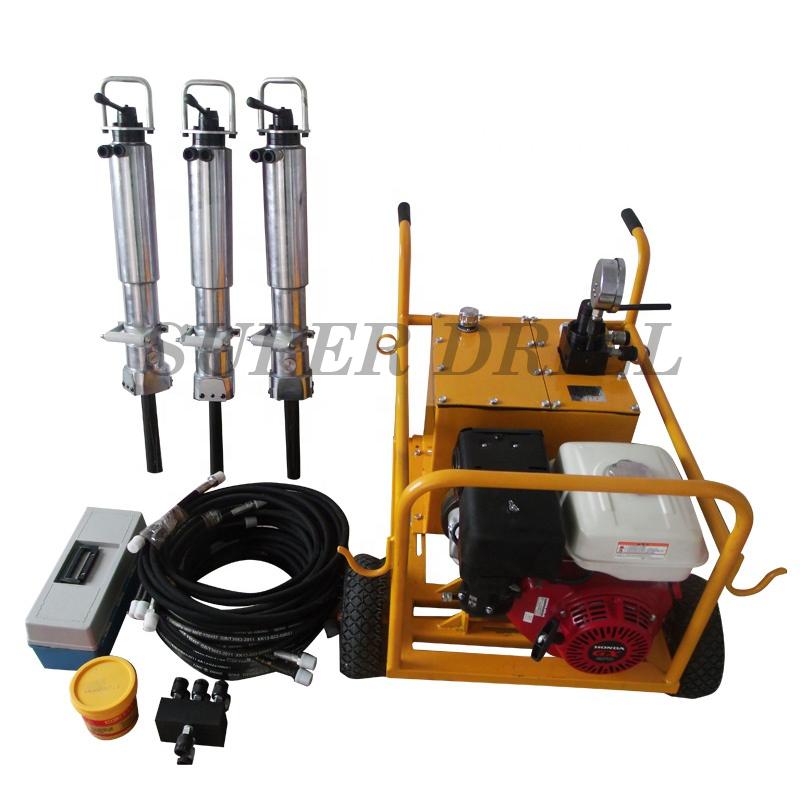

hydraulic splitter---Hydraulic pump station

hydraulic splitter---Splitting gun and wedge
