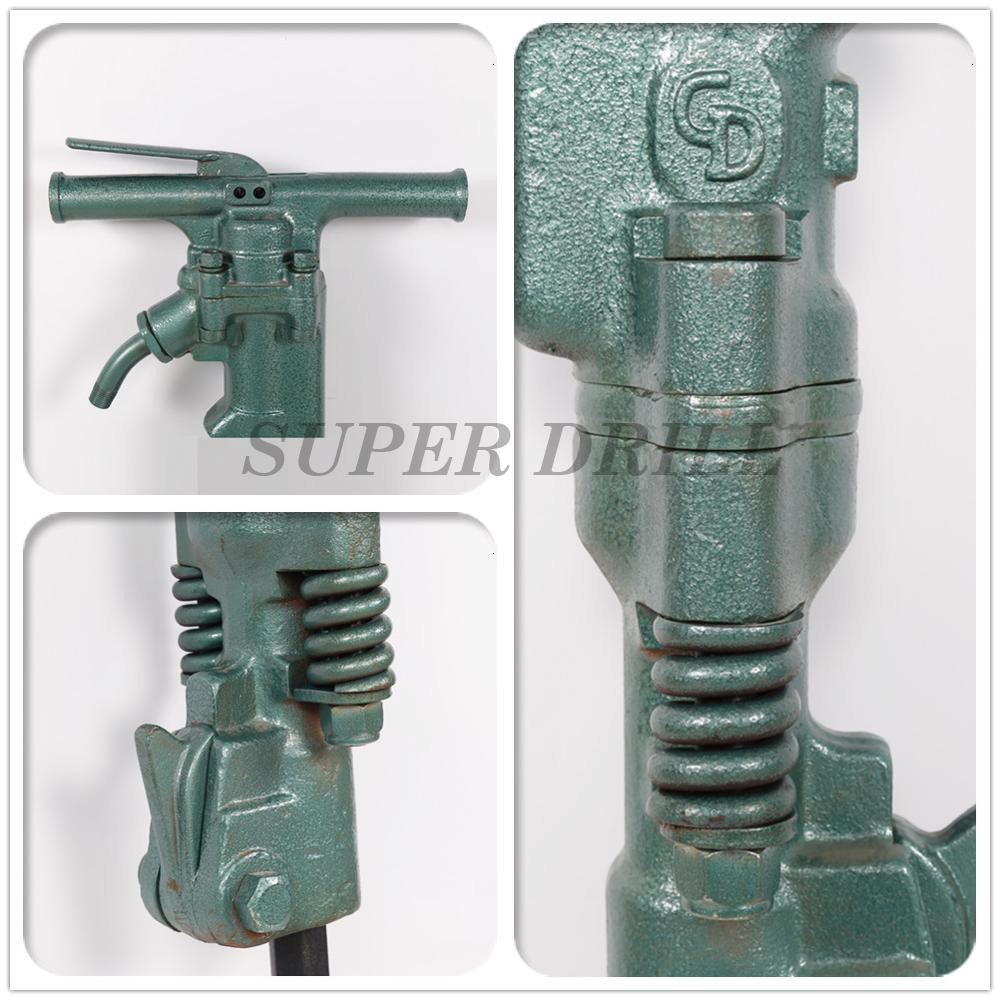

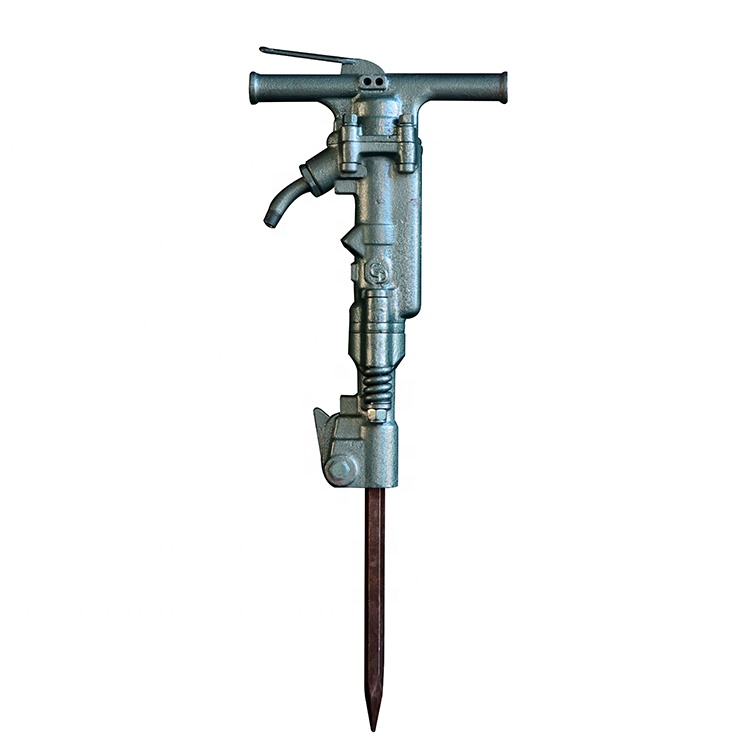

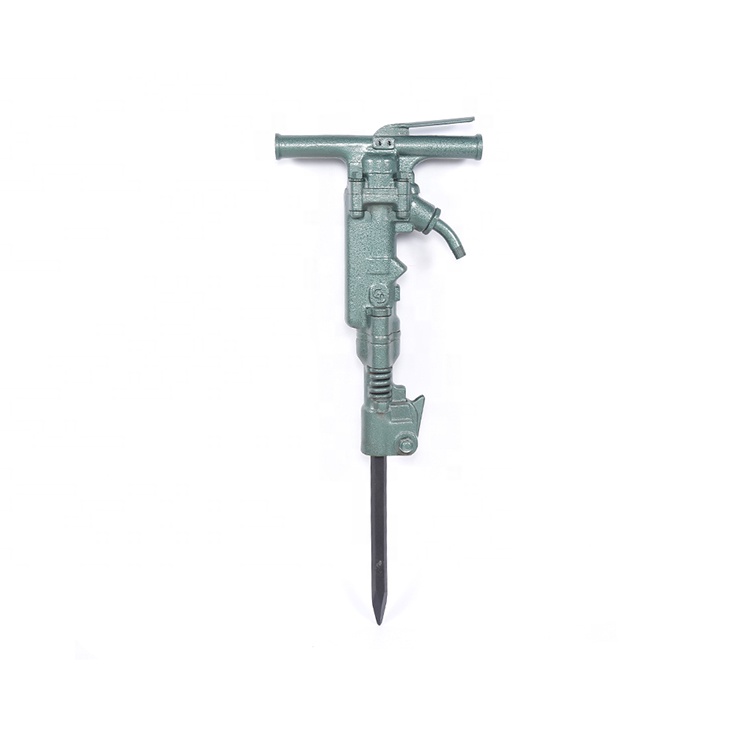

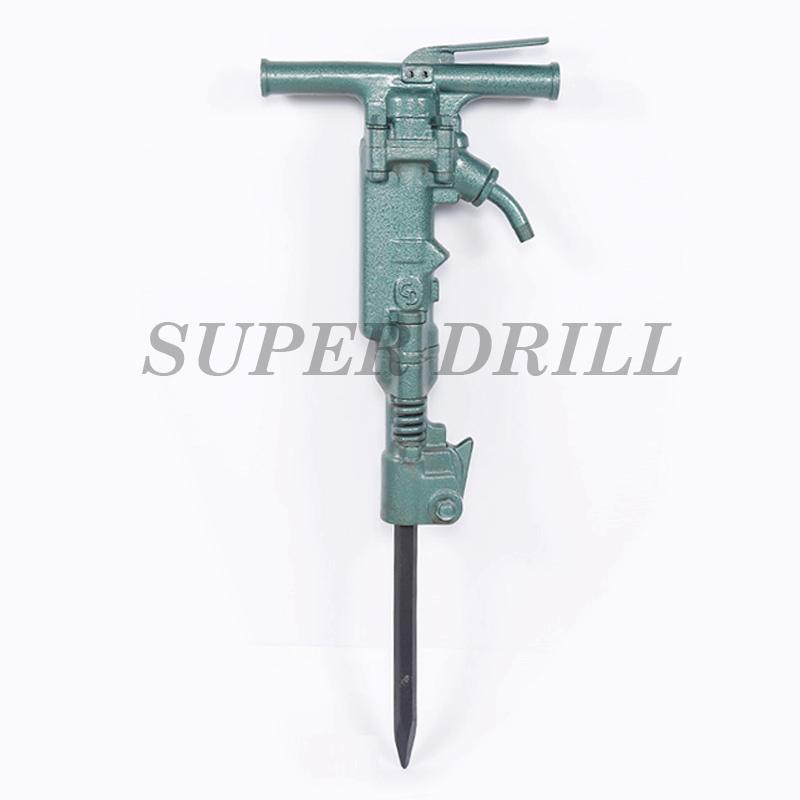

Pneumatic Breaker B47

The Pneumatic Breaker B47 integrates the most useful features of similar products available on the market, and it uses compressed air to drive the piston to reciprocate vertically, thus exerting impact force on the cushion which will then be applied on the chisel so as to break rock, asphalt, reinforced concrete, etc.

Feature and Application
This T-handle breaker is characterized by light weight, convenient use, high impact rate and high working efficiency, and it is commonly utilized for the demolition of ice, brickwork, pavement, soft rock, frozen soil and reinforced concrete, thus making it an ideal choice for road maintenance, power grid construction and other projects.

Technical Data of Pneumatic Breaker B47

Piston diameter	47.6mm
Piston stroke	100mm
Impact rate	1400 blows/min
Air consumption	27L/s
ID of air hose	19mm
Shank size	25×108mm
Air inlet size	3/4PT
Total length	550mm
Net weight	21.5kg
