$740.00/Piece|1 Piece (Min. Order)
TCI Tricone Cutter is the most popular drilling tools in the HDD Drilling ,it can be widely used for Pilling projects.
The IADC from 417 to 837 can meet your difference hard formation drilling.
Also you can tell us the drilling formation,then we can offer professional suggestion for IADC.

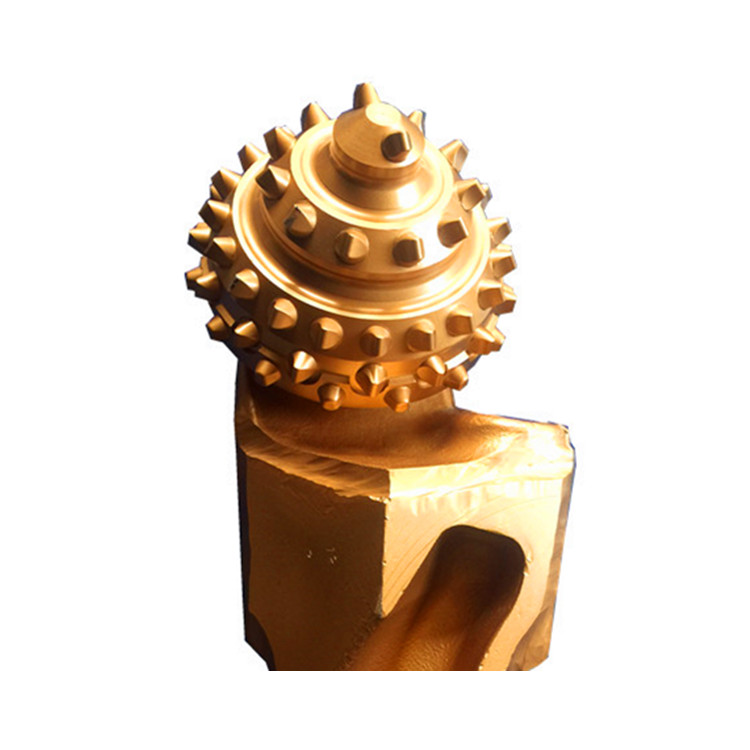

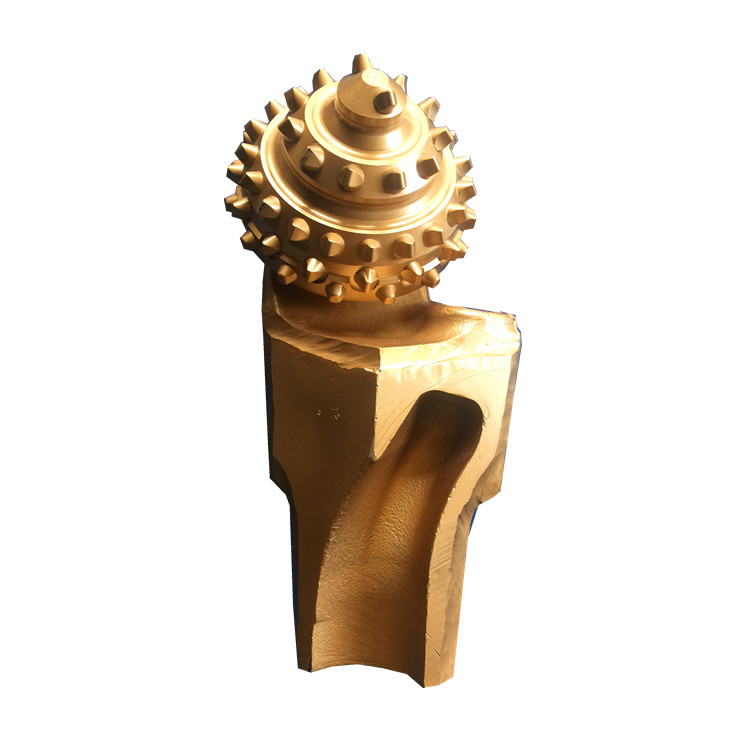

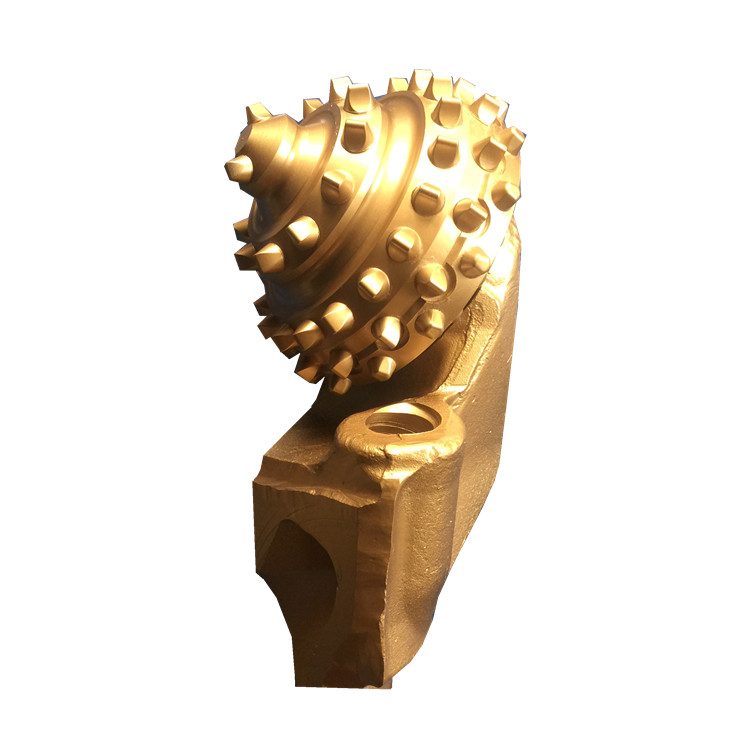

API 12 1/4"IADC537 Single roller cutter tricone bit for well drilling bit
Bit Diameter
12 1/4" = 311 mm
IADC Code
537
Pin Thread
API Reg. 6 5/8"
Bearing
O-Ring Sealed Bearing
Net/Gross Weight
20/ 23 Kgs
Packing Size
180X180X250 mm
Rotary Speed
100~50 RPM
Normal WOB
0.5~1.05 KN/MM (Bit Diameter)
Cutting Structure
Offset crested scoop compacts in inner row,wedge compacts in outer row,imequable spaced compacts arrangement,and a row of
trimmers is added between gage row and heel row
Drilling Formation
Medium soft with low compressive strength and harder abrasive stringers,such as hard shale,hard gypsolyte,soft limestone,sandstone
and dolomite with stringers,etc
