DTH hammer

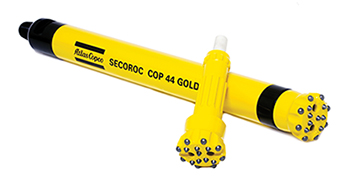

6 inch Atlas Copco DTH hammers

Hammer Size: 3” to 36”
Product description: QL 60 DHD 360 Atlas Copco DTH hammers |6 inch Atlas Copco DTH hammers offers a comprehensive range of DTH hammers capable of drilling holes from 3” to 36” in diameter. The world renowned company prov
INQUIRY Email Whatsapp

6" Atlas Copco hammer Series

Model Number	QL 60 STD	QL 60 HF	QL 60 HC	QL 65 QM
Part Number	52324258	52310604	52329091	52324266
Outside Diameter	5 7/16"	5 7/16"	5 7/16"	5 3/4"
Recommended Bit Size	6" - 71/2"	6" - 71/2"	6" - 71/2"	612" - 71/2"
Working Pressure (psi)	87 - 350	87 - 350	87 - 350	87 - 350
Hammer Length	44 9/16"	44 9/16"	44 9/16"	44 9/16"
Hammer Weight	201 lbs.	201 lbs.	201 lbs.	245 lbs.
Bit Shank Type	QL 60	QL 60	QL 60	QL 60
Backhead Thread	3 1/2" API Reg Pin	3 1/2" API Reg Pin	3 1/2" API Reg Pin	3 1/2" API Reg Pin

Model Number	Aqua 60	QLX 60	QLX 65 QM	QLX 60 OG
Part Number	51903326	52352465	52352473	52354180
Outside Diameter	5 7/16"	5 9/16"	5 7/8"	5 9/16"
Recommended Bit Size	6" - 71/2"	6" - 71/2"	61/2" - 71/2"	61/4" - 61/2"
Working Pressure (psi)	87 - 350	87 - 508	87 - 508	87 - 508
Hammer Length	44 9/16"	42 15/16"	42 15/16"	42 15/16"
Hammer Weight	201 lbs.	205 lbs.	235 lbs.	205 lbs.
Bit Shank Type	QL 60	QL 60	QL 60	QL 60
Backhead Thread	3 1/2" API Reg Pin	3 1/2" API Reg Pin	2 3/8" API Reg Pin	3 1/2" API Reg Pin
Spec Sheet

Model Number	COP 64 STD	COP 64 QM	COP 64 Gold	COP 64 Gold QM
Part Number	89000486	89000498	89000959	89000960
Outside Diameter	5 9/16"	5 3/4"	5 9/16"	5 3/4"
Recommended Bit Size	61/8" - 7"	61/2" - 7"	61/8" - 7"	61/2" - 7"
Working Pressure (psi)	87 - 363	87 - 363	87 - 435	87 - 435
Hammer Length	51 1/2"	51 1/2"	49 1/2"	49 1/2"
Hammer Weight	209 lbs.	240 lbs.	212 lbs.	240 lbs.
Bit Shank Type	DHD 360	DHD 360	QL 60	QL 60
Backhead Thread	3 1/2" API Reg Pin	3 1/2" API Reg Pin	3 1/2" API Reg Pin	3 1/2" API Reg Pin

Atlas Copco offers a comprehensive range of DTH hammers capable of drilling holes from 3” to 36” in diameter. The world renowned company provides innovative solutions for water well drillers, miners and quarry drillers, as well as for contractors in construction. Superdrill has been an authorized Atlas Copco dealer for more than 15 years. Not only can we get you the Atlas Copco hammer you need, we also provide after-sale support and can get replacement parts when needed.
