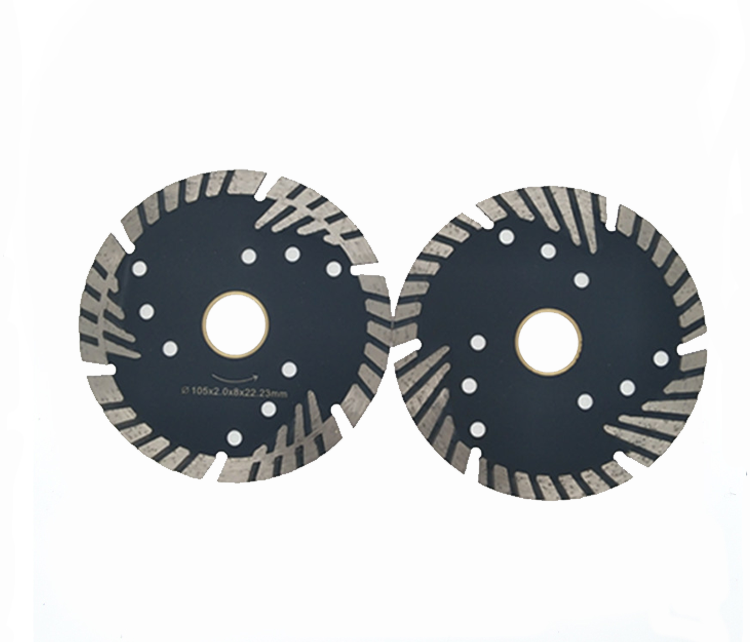

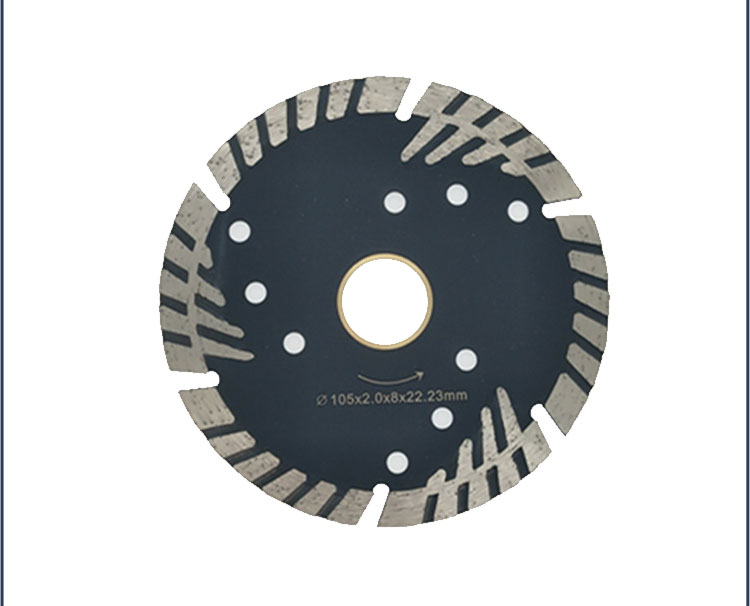

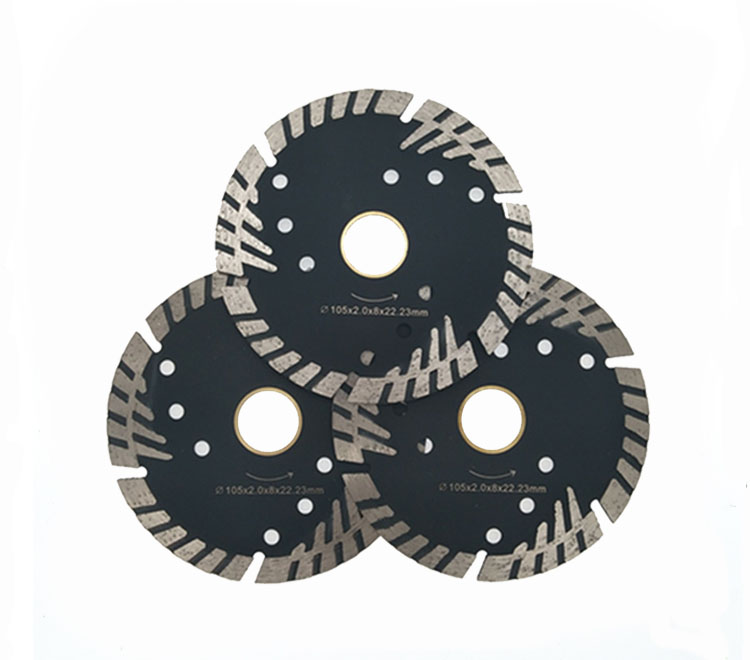

1.Description of D105-230mm Granite Stone Cutting Blade, MG Saw Blade With Customized Flange
Sinter Turbo Blade with specially designed deep segments for under-cut protection for use with abrasive materials and special vented core keep blade running cooler and also helps remove slurry for friction free cutting.
Turbo Teeth 4-9" Blade with Deep Undercut Protection. Intended for Granite, Marble, Concrete, Brick, Block, Stone, Roof Tile and Masonry Materials. Use Wet or Dry
This diamond Turbo Blade is designed for use on hard aggregate where a clean cut is essential. They are ideal in the stone, granite, and marble industries. The Blades are engineered with a soft-bonded matrix and employs an air-cooled core, protected teeth create a smooth, clean cutting edge.
2. Features of D105-230mm Granite Stone Cutting Blade, MG Saw Blade With Customized Flange
a) Smooth and fast cutting without chipping
b) Long lifespan and stable performance
c) Competitive price and superior quality
d) Fast delivery
Precautions:
1.First read the operating instructions before use, follow the instructions for correct operation;
2.Wear goggles, protective cover security tools;
3.Make sure to use the highest number of operating, whether the number of no-load operation;
4.Confirm whether the abnormal, the inner diameter of the flange using an appropriate, accurate installation;
5.Blunt cut, make the blade on a coarse grinding wheel, brick and other materials.
3. Specification information of D105-230mm Granite Stone Cutting Blade, MG Saw Blade With Customized Flange
1. Size: 4" - 9"
2. Processing technology: sintered saw blade.
3. Good balance makes sure safety and excellent cutting effect

Details specification:

Item No.	Inch	mm	Thickness	Height	Inner Hole
BPJ-014	4"	105	2	7/8/10/12	20/16
BPJ-014	4.5"	115	2.2	7/8/10/12	20/16
BPJ-014	5"	125	2.2	7/8/10/12	20/22.23
BPJ-014	6"	150	2.4	7/8/10/12	20/22.23
BPJ-014	7"	180	2.4	7/8/10/12	20/22.23
BPJ-014	9"	230	2.6	7/8/10/12	20/22.23
