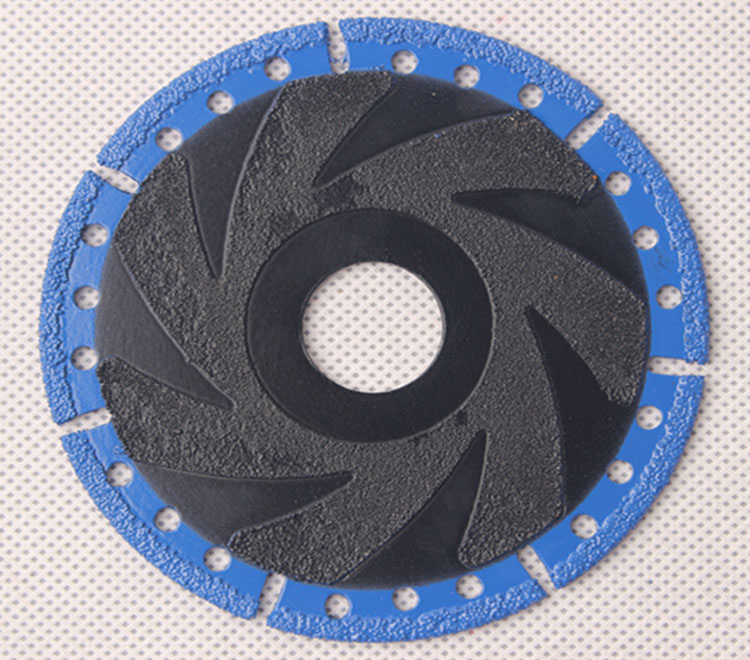

105mm 12'' Vacuum Brazed Diamond Blade Dry Cut Diamond Blade

Brand Name: Super Tools
diameter: 105-230mm
connection: 50/60mm,25.4mm,20mm,22.23mm
Outer Diameter:: 105-350mm
Product description: 105mm 12'' Vacuum Brazed Diamond Blade Dry Cut Diamond Blade
INQUIRY Email Whatsapp

Whatsapp/Phone:+86 18186993613

E-mail: sales@superdrill.com.cn
Product Descriptio

Outer Diameter	Hole Diameter(D)	Segment Thickness	Segment Width
105(4”)	22.23/20/16	1.8/2.0	8.0/10.0
110(43/8”)	22.23/20/16	1.8/2.0	8.0/10.0
115(41/2”)	22.23/20/16	1.8/2.0	8.0/10.0
125(5”)	22.23/20/16	1.8/2.0	8.0/10.0
150(6”)	22.23/20	2.0/2.2	8.0/10.0
180(7”)	22.23/20	2.2/2.4	8.0/10.0
200(8”)	22.23/20	2.2/2.4	8.0/10.0
230(9”)	25.4/22.23	2.3/2.5	8.0/10.0
250(10”)	25.4/22.23	2.3/2.5	8.0/10.0
300(12”)	50/25.4/22.23	2.6	8.0/10.0
350(14”)	50/25.4/22.23	2.8	8.0/10.0

Application

1, Use for cutting and grinding ordinary flat glass, frosted glass, sandblasted glass, embossed glass, wired glass, hollow glass, laminated glass and glass block, diamond grit 80 -120. Cutting fast; the blade edge is not easy to be broken.

2, Use for cutting and grinding granite, basalt, limestone, dolomite, sandstone, marble and other stone, diamond grit 36- 60. Cutting fast; the blade edge is not easy to be broken.

3, Use for cutting and grinding porcelain, wall brick and floor tile, sanitary ware, ceramic handle, silicate products and silicon wafer, diamond grit 36-60. Cutting fast; the blade edge is not easy to be broken.

4, Used for cutting and polishing of other metal products, such as aluminum, stainless steel, etc.
