Air Pneumatic Pick Hammer Hand Splitter

Air Pneumatic Pick Hammer Hand Splitter

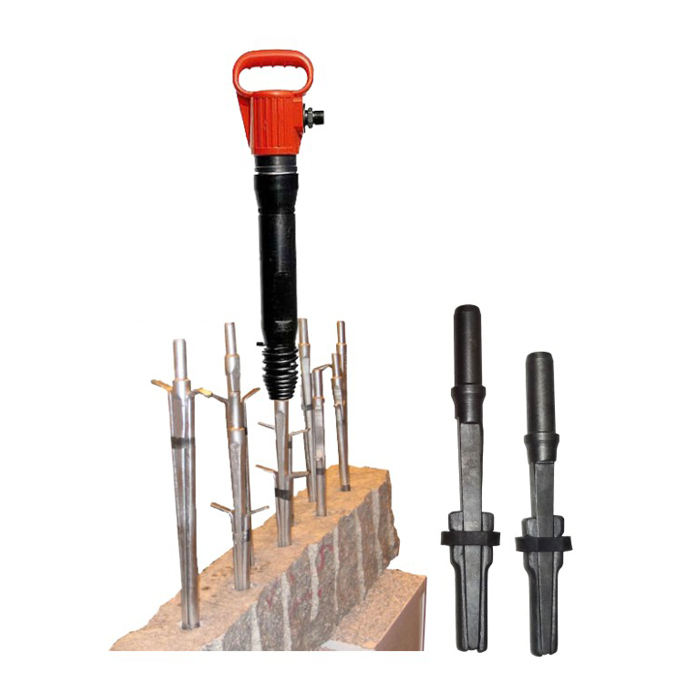

To use the light-weight pneumatic hammer and suitable Plug and feathers for splitting the

blocks, it will be more efficiency and less cost than the traditional hand splitter.

Model	G15
Air pressure(Mpa	0.5
Impact force (allowance:-2%)(J)	39
Impact frequency(Hz)	22.5
Working power(KW)	0.9
Air consumption(m3/min)	1.4
Weight(kg)	11
Length(mm)	600
Overall dimension(mm)	570*180*110

*Shank:24×70mm

Note: 1. At working site, sir pressure 0.5Mpa, the noise would be less than 115db

          2. Plug and feathers: normal length is 400mm, and hole from 32mm to 40mm, other

              sizes of plug and feather are available upon your datailed requirement.
