superdrill 76mm 89mm 102mm DTH drill pipes sales

superdrill 76mm 89mm 102mm DTH Drill pipes sales

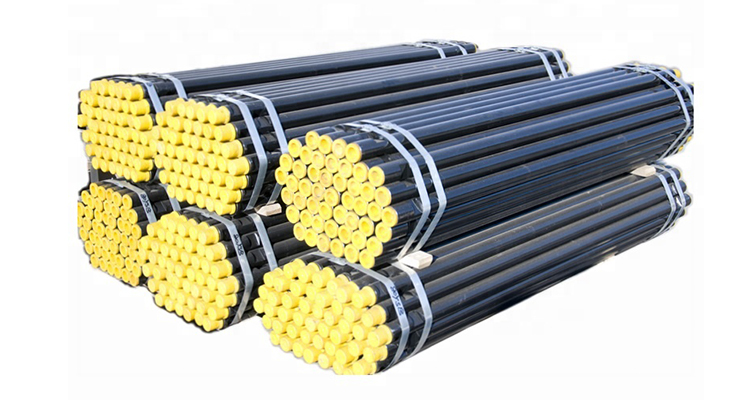

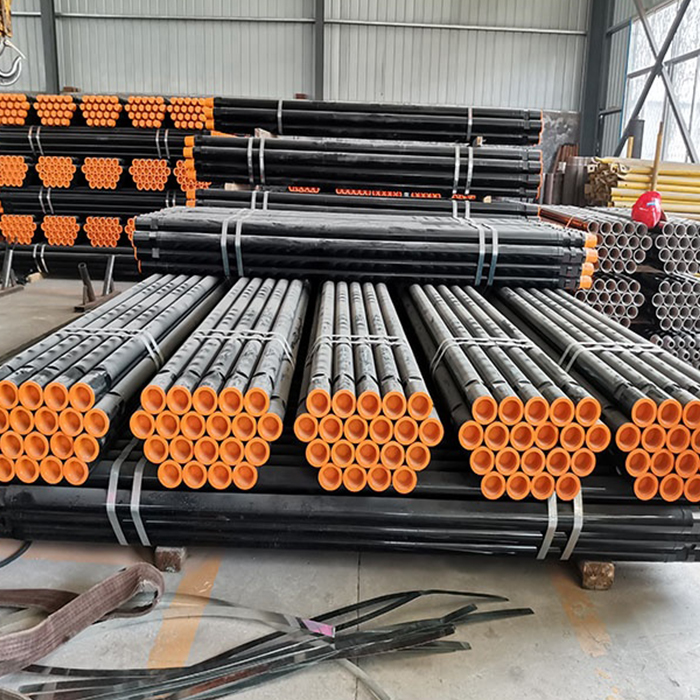

In mines, water wells, geothermal, petroleum, and other kinds of DTH rigs, DTH drill pipes are frequently utilized. Good carbon steel makes sure that the friction welding process and joint are closely combined.varied applications require varied drill tube sizes; in general, smaller DTH drill tubes are required for smaller DTH hammers, and vice versa.

We typically have 50mm, 60mm, 76mm, 89mm, 95mm, 102mm, 114mm, 127mm, 140mm, and 159mm available.

In case you have any specific needs, do get in touch with us.

Our skilled and knowledgeable engineers are aware that certain drilling conditions could call for a particular bit design. We may create and produce in accordance with your particular specifications.

Sure, I can help you organize the data in a more structured format. Here's the information presented in a tabular format:

Product specifications:

Group: 1

• Pipe Diameter (inch): 2 1/4
• Pipe Diameter (mm): 60
• Pipe Length:
  • 1000mm
  • 2000mm
• Pipe Wall Thickness: 6mm
• Connection Thread: Square 48×10
• Trigger: 40
• Weights:
  • 1000mm: 10kg
  • 2000mm: 17.9kg

Group: 2

• Pipe Diameter (inch): 2 1/2
• Pipe Diameter (mm): 64
• Pipe Length:
  • 1000mm
  • 2000mm
  • 3000mm
• Pipe Wall Thickness: 6mm
• Connection Thread: D64 Taper Thread (1:5)
• Trigger: 40
• Weights:
  • 1000mm: 10kg
  • 2000mm: 18kg
  • 3000mm: 25.9kg

Group: 3

• Pipe Diameter (inch): 3
• Pipe Diameter (mm): 76
• Pipe Length:
  • 1000mm
  • 2000mm
  • 3000mm
• Pipe Wall Thickness: 7mm
• Connection Thread: API 2 3/8" REG
• Trigger: 70
• Weights:
  • 1000mm: 15.2kg
  • 2000mm: 27.1kg
  • 3000mm: 38.9kg

Group: 4

• Pipe Diameter (inch): 3 1/2
• Pipe Diameter (mm): 89
• Pipe Length:
  • 1000mm
  • 2000mm
  • 3000mm
  • 4000mm
• Pipe Wall Thickness: 7mm
• Connection Thread: API 2 3/8" REG
• Trigger: 70
• Weights:
  • 1000mm: 19.6kg
  • 2000mm: 33.6kg
  • 3000mm: 47.7kg
  • 4000mm: 61.8kg

Group: 5

• Pipe Diameter (inch): 4
• Pipe Diameter (mm): 102
• Pipe Length:
  • 2000mm
  • 3000mm
  • 4000mm
• Pipe Wall Thickness: 8mm
• Connection Thread: API 3 1/2" REG
• Trigger: 80
• Weights:
  • 2000mm: 47.1kg
  • 3000mm: 65.5kg
  • 4000mm: 84.1kg
