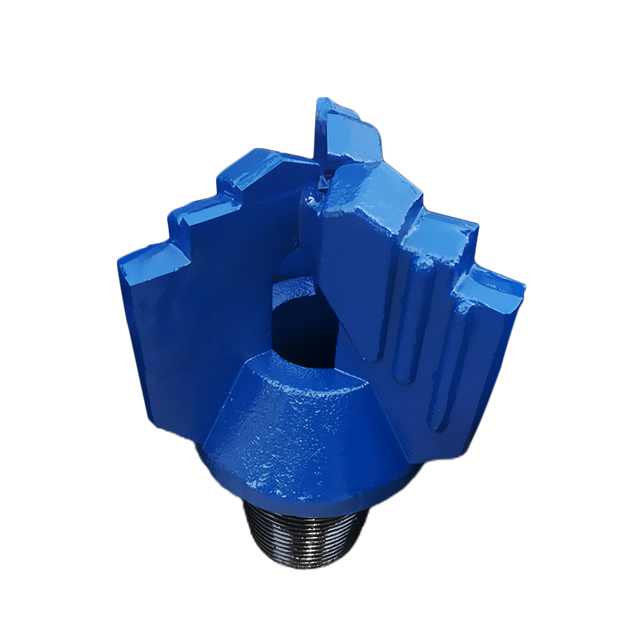

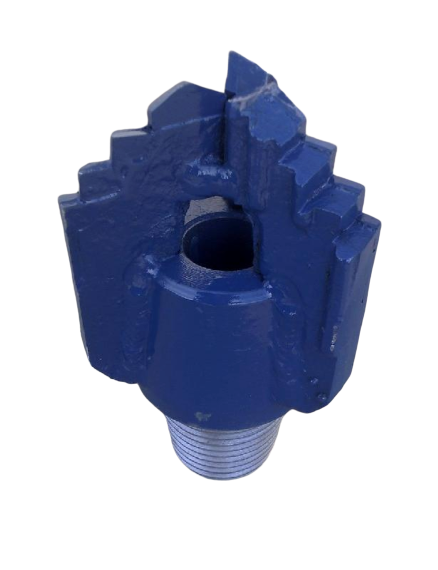

Water Well Drilling Tools Carbide Insert 3 Blades Wings Drag Bit Steel Tricon

Water Well Drilling Tools Carbide Insert 3 Blades Wings Drag Bit Steel Tricon

A drag bit is usually designed for soft formations such as sand, clay or some soft rock. However, they will not work well in coarse gravel or hard rock formations. Uses include drilling water wells, mining, geothermal, environmental and exploration drilling. Whenever possible, they should be used to drill pilot holes because they produce cuttings that are easiest to log.

Three-wing bits tend to drill faster, whereas four-wing bits are longer-lasting, more durable, and drill a straighter hole.

Application of PDC drag drill bit

Drag bits are applied to rock formation f≤6,like mudstone, shale, sandstone, etc., mainly used for drain hole, grouting hole, geological and hydrology drilling, etc.

Specifications of PDC drag drill bit

Size	Type Pin	Wt. (lbs.)
1 3/4"" ~ 2 1/2""	AW, A-Rod	2
2 5/8"" ~ 2 7/8""	AW, A-Rod	2 1/2
2 3/4"" ~ 3 1/4""	3THD/4THD N-ROD 2"" IF	4
3 3/8"" ~ 3 3/4""	3THD/4THD N-ROD 2"" IF	4 1/2
3 7/8"" ~4 3/4""	2 3/8"" API Pin	6
4 7/8"" ~ 5 1/8	2 3/8"" API Pin	7
5 1/4"" ~5 1/2""	2 3/8"" API Pin	8
4 5/8"" ~ 5""	2 7/8"" API Pin	10
5 1/8"" ~5 1/2""	2 7/8"" API Pin	11
5 5/8"" ~ 6 1/4""	3 1/2"" API Pin	18
6 1/2"" ~ 6 3/4""	3 1/2"" API Pin	19
7"" ~ 7 1/2""	3 1/2"" API Pin	21
7 5/8"" ~ 8""	3 1/2"" API Pin	23

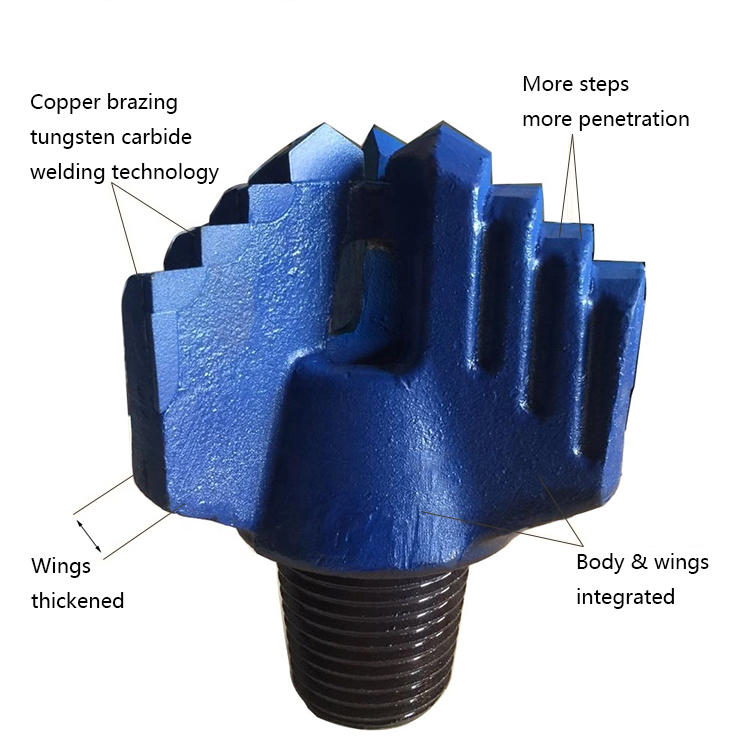

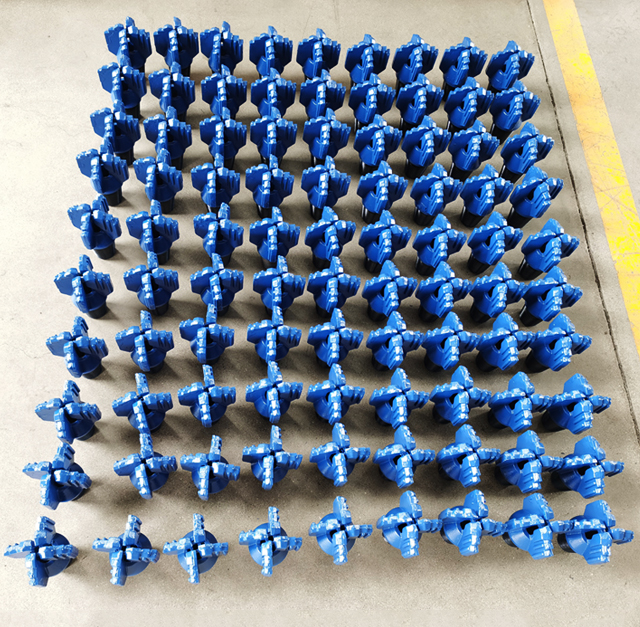

Our supplies a variety of drag bits for many types of projects drilling needs, including 3-wing type bits for soft and medium formations, 4-wing, especially 4-wing chevron type for harder formations. Each of our bits is machined from a forging to exacting standards and then tipped with tungsten carbide. Mining grade tungsten carbide tips are brazed to the bit wing face for heavy duty bits. The pin threads are CNC manufactured and wings surfaces hardening subsequently.
