Rock Drill Attachment for Excavator

Excavator Mounted Drill Attachment

If you are a contractor or end user in drilling & blasting, quarrying etc, you can see many Excavators with Hydraulic Breakers or other front attachments working in drilling, digging, demolition, which are everywhere not only in quarry and construction project site,  but you have very less budget to buy hydraulic top hammer drilling rig like Sandvik Tomrock DQ550 ( bench ), Q7 (quarrying). Atlas Copco Power OC (bench), Atlas Copco Boomer 282, L2D (Drifting and tunneling) Atlas copco ROC L8, ROC D7 (Bench)

Rock drilling tools manufacturer SuperDrill can  offer you a perfect solution!

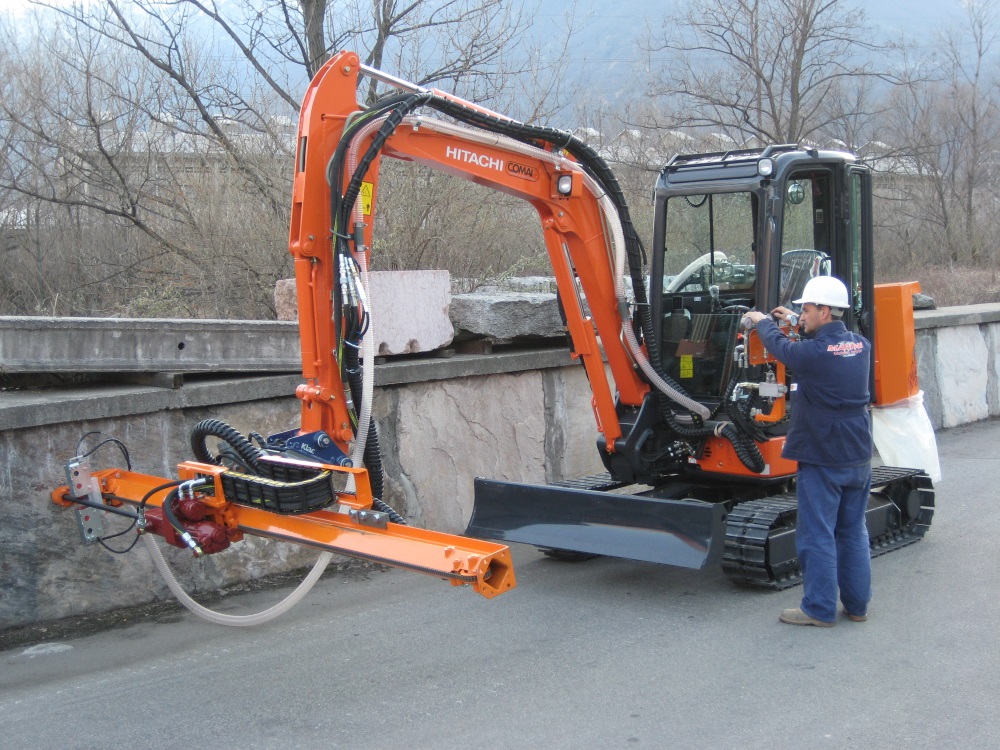

1-8T Small digging rig

Excavator mounted rock drilling attachments are designed to be used in various job sites such as drilling and blasting, quarrying & Mining, rock bolting, rock and concrete demolition, construction works, etc.

Now Main market in quarry granite and marble market, our rock drilling attachment can replace hand-held rock drills

Drilling speed : 1 meter per minute, for jack hammer, less 3 meter per hours like granite drilling.

Drill depth : 3 meters , can suit for stone quarry use.  Hot mode No. : SP-28.  SP-40, using 22*108, 25*108 shank size for tapered drill rod, best choice for granite stone quarrying.

SP-45, SP-90,S P-115 use top hammer bit and rod, like R32-45mm, T38, T45, 76mm-89mm, working for mining blasting, benching drilling to replace real top hammer drill rig.

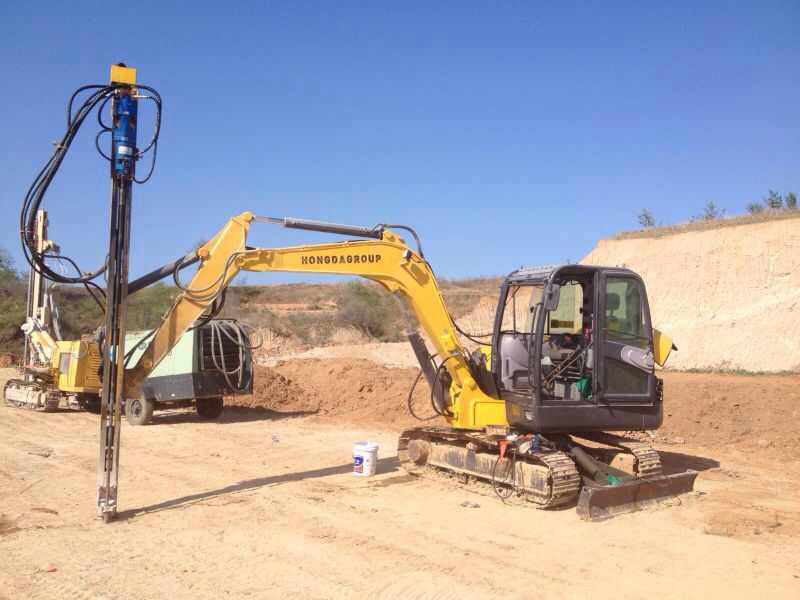

SP-40 Drill attachment mounted 12 tons Soosan excavator drilling granite

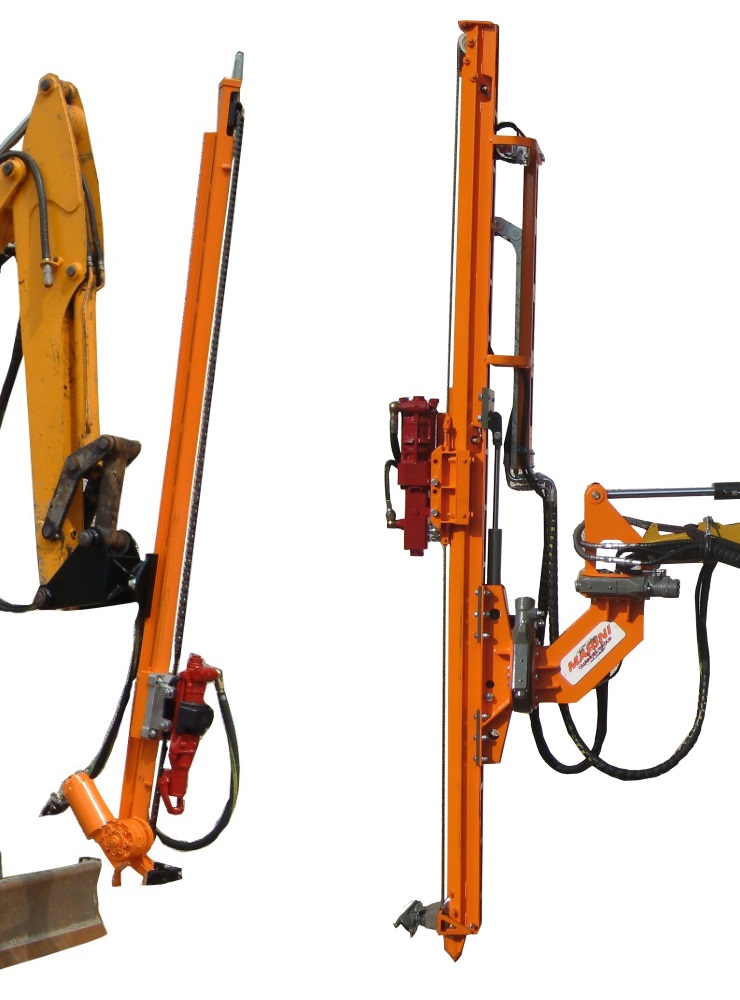

SP-45 Drill Attachment, use R32-45 mm button bit, and R32 Extension Rod 3660mm.

SP-90 Rock Drill Attachment with T45 89mm button bits and 3660mm Round Rod T45.

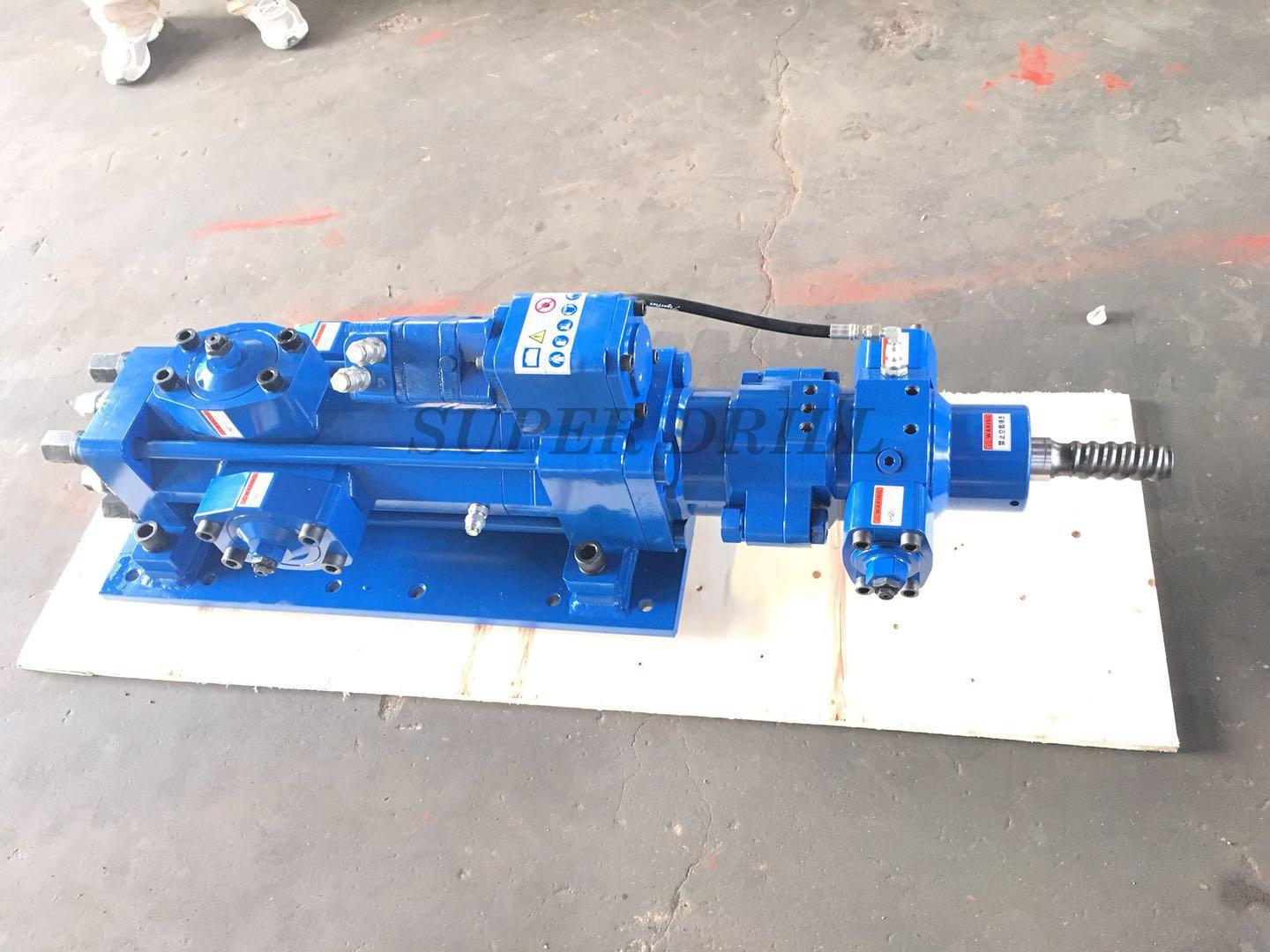

Hydraulic drifter hammer developed by Superdrill, with own copy right. To fit SP-90, SP-115 drill attachment.

SP-HC20 Excavator Mount DriLL:

Rock drill type	SP-HC20
Impact Power	90J
Impact Frequency	50Hz
Impact Oil Pressure	14MPa
Impact Capacity	45L/min
Rotation Torque	200N.m
Rotation Speed	150-300rpm
Min. Propulsion Force	4KN
Max Propulsion Force	7KN
Oil Lube Air Consumption	0.02 M3/min
Oil Lube Oil Consumption	6 drops/min
Water Flow for waste elimination	30L/min
Water Pressure for waste elimination	1.5MPa
Drill Rods	R25/R32
Drilling Diameter	32-51mm
Max Depth of Single Drill Rod	4500mm
Drilling Speed	0.6-1.2M/min
Weight	70KG
Excavator	≥15Tons
